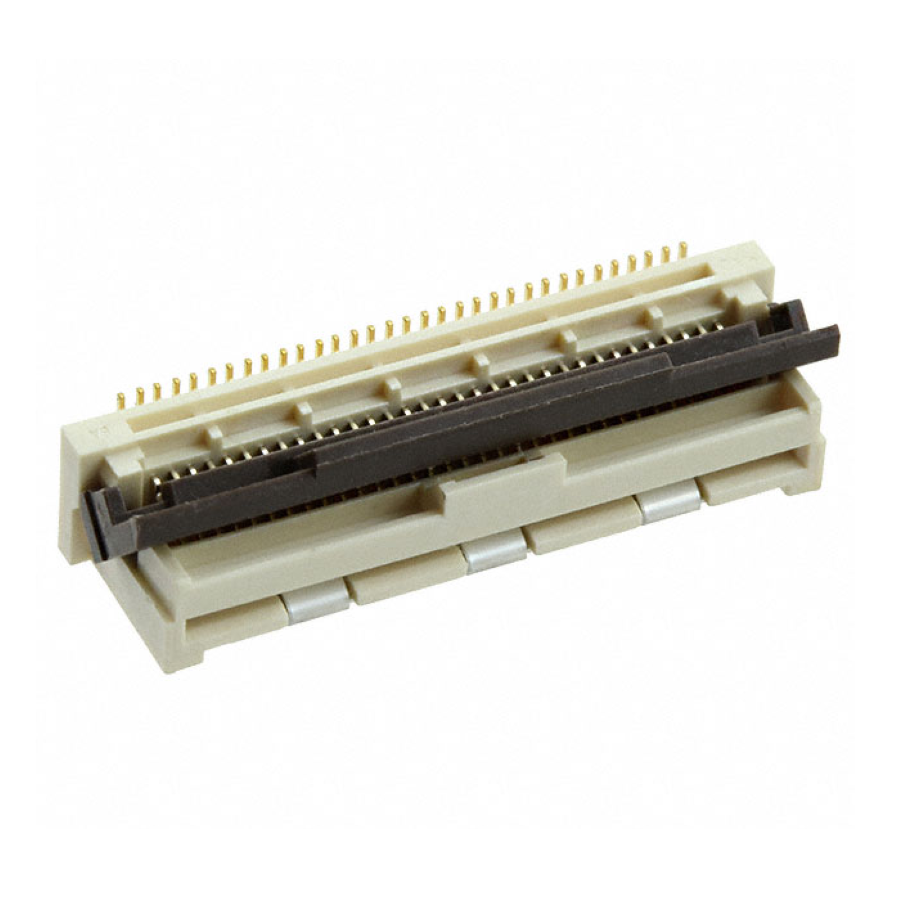

5022313300
Manufacturer:
Molex
Mfr.Part #:
5022313300
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:33 400 mA 50 V
| Parameter | Value |
|---|---|
| Length | 19.8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 4.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 400 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 33 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Contacts | 33 |
| Connector Type | Contacts |
| Number of Positions | 33 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Top |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Nylon, Polyamide |
| Housing Color | Natural |
| Plating | Gold |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
| Mounting Angle | Vertical |
Stock: 1755
Distributors
pcbx
pcbxUnit Price$1.58931
Ext.Price$1.58931
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.58931 | $1.58931 |
| 10 | $1.35763 | $13.57630 |
| 25 | $1.27043 | $31.76075 |
| 50 | $1.21400 | $60.70000 |
| 100 | $1.16441 | $116.44100 |
| 300 | $1.10294 | $330.88200 |
| 500 | $1.04473 | $522.36500 |
| 1000 | $0.97633 | $976.33000 |
