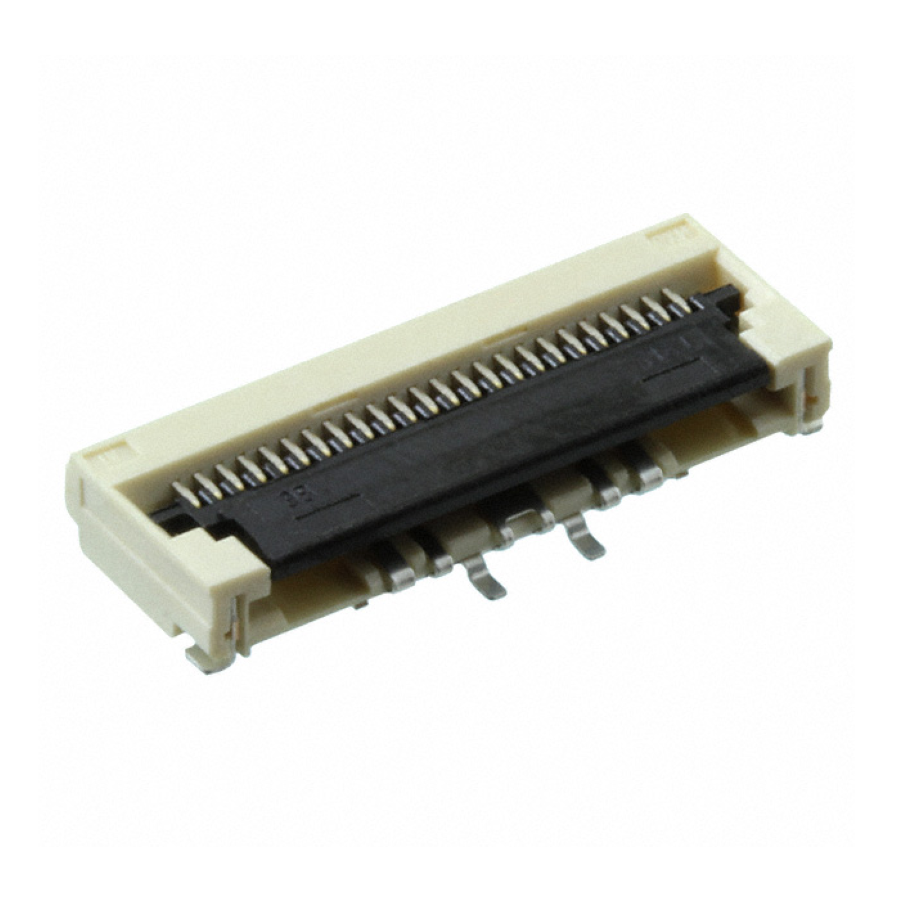

5022442430
Manufacturer:
Molex
Mfr.Part #:
5022442430
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:24 400 mA 50 V
| Parameter | Value |
|---|---|
| Length | 14.6 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 5.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 400 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 24 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Bottom |
| Wire/Cable Type | Flat Flex |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Polyphenylene |
| Housing Color | Natural |
| Plating | Gold |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | JP |
| Mounting Angle | Right Angle |
Stock: 27
Distributors
pcbx
pcbxUnit Price$1.62830
Ext.Price$1.62830
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.62830 | $1.62830 |
