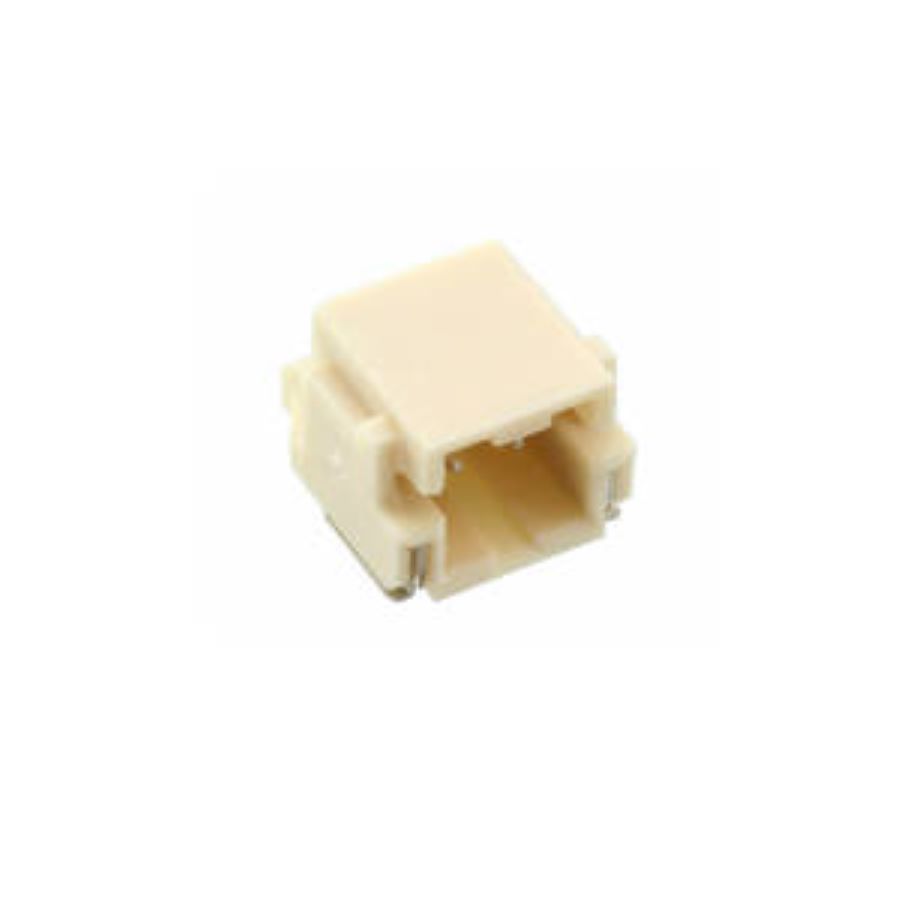

5023520200
Manufacturer:
Molex
Mfr.Part #:
5023520200
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 6.6 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 9.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Ambient Temperature Range High | 105 °C |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 10 mΩ |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 3.45 mm |
| Schedule B | 8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 6171
Distributors
pcbx
pcbxUnit Price$0.23328
Ext.Price$0.23328
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23328 | $0.23328 |
| 10 | $0.20806 | $2.08060 |
| 50 | $0.18557 | $9.27850 |
| 100 | $0.16747 | $16.74700 |
| 500 | $0.15114 | $75.57000 |
| 1000 | $0.13640 | $136.40000 |
| 3000 | $0.12309 | $369.27000 |
