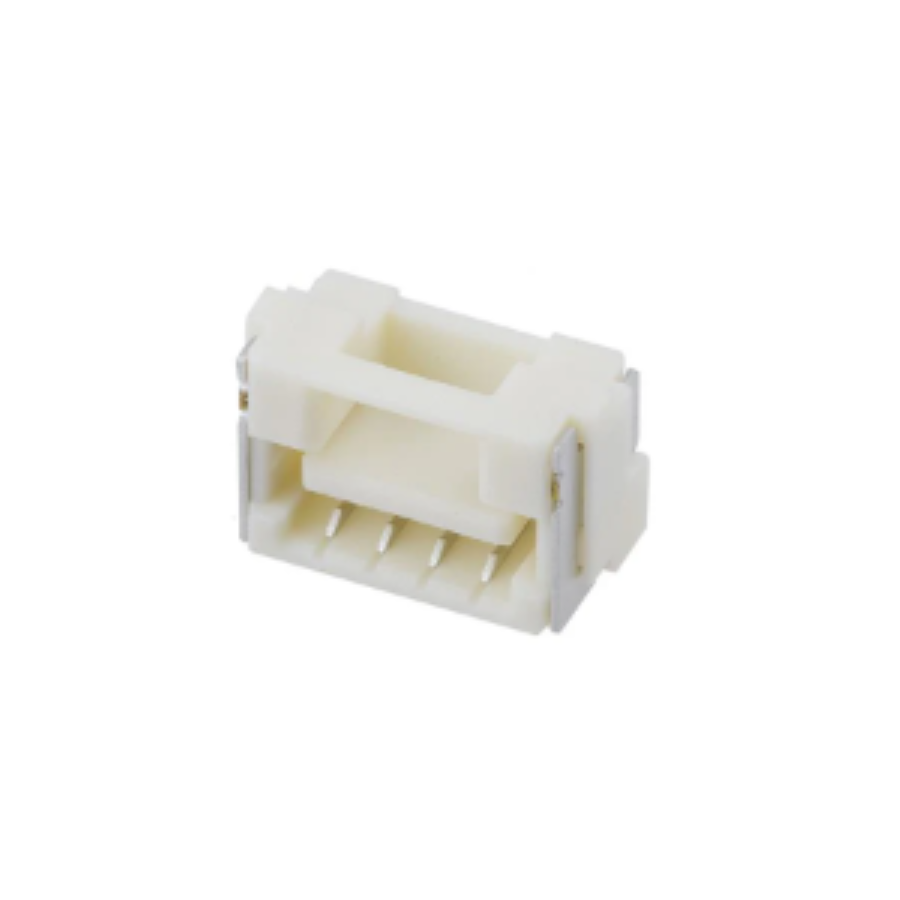

502386-0670
Manufacturer:
Molex
Mfr.Part #:
502386-0670
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Forked, Receptacle Number of Positions:6 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Length | 10.85 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 50 V |
| Material | Polybutylene |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 6 |
| Connector Type | Forked, Receptacle |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MY |
Stock: 5320
Distributors
pcbx
pcbxUnit Price$0.46936
Ext.Price$0.46936
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46936 | $0.46936 |
| 10 | $0.40010 | $4.00100 |
| 25 | $0.35650 | $8.91250 |
| 50 | $0.34785 | $17.39250 |
| 100 | $0.33940 | $33.94000 |
| 300 | $0.32095 | $96.28500 |
| 500 | $0.30350 | $151.75000 |
| 1000 | $0.27532 | $275.32000 |
| 3000 | $0.24976 | $749.28000 |
| 5000 | $0.22656 | $1132.80000 |
