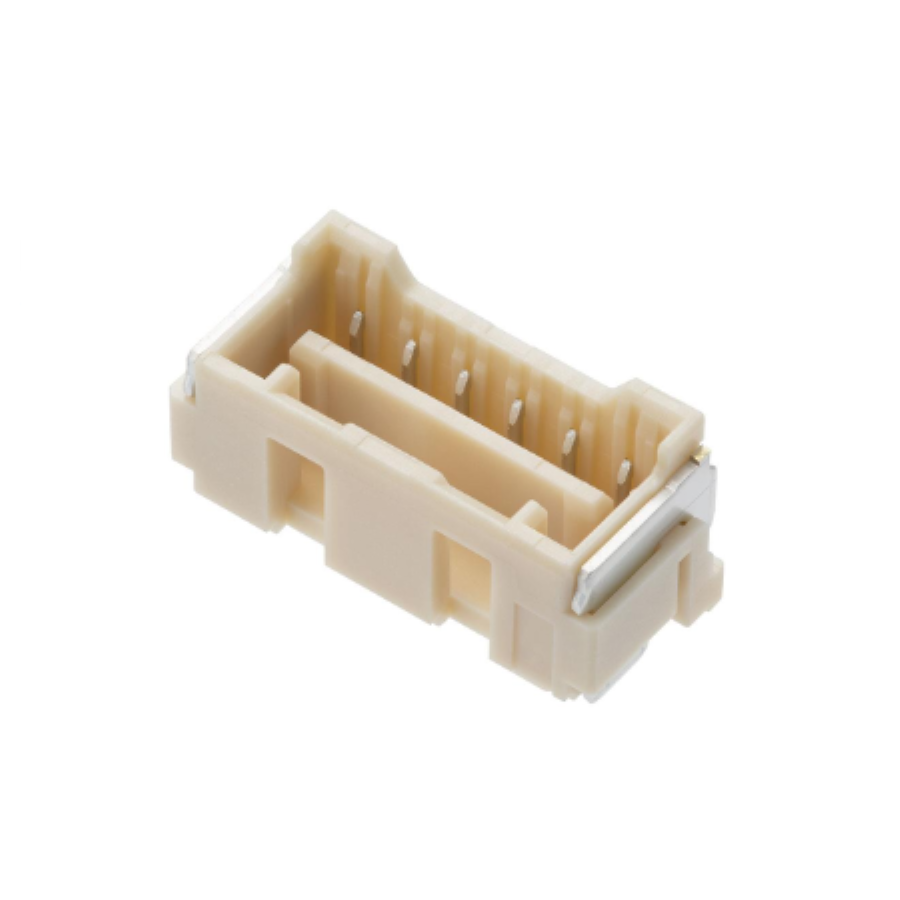

5024430670
Manufacturer:
Molex
Mfr.Part #:
5024430670
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Forked, Receptacle Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 6 |
| Height | 7.7 mm |
| Material | Polybutylene |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 6.85 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Nickel, Tin |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 6 |
| Ambient Temperature Range High | 105 °C |
| Connector Type | Forked, Receptacle |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
