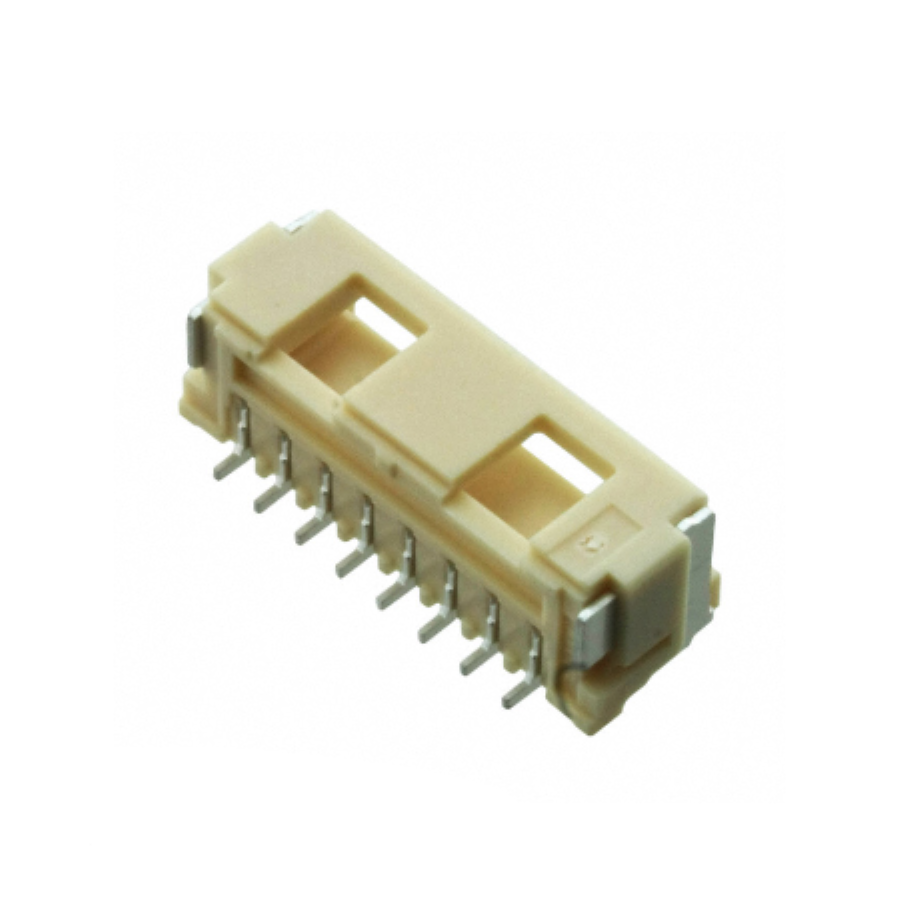

502494-0870
Manufacturer:
Molex
Mfr.Part #:
502494-0870
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle Number of Positions:8 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Material | Polybutylene |
| Packaging | Reel |
| Depth | 6.85 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural, White |
| Gender | Socket (Female) |
| Number of Contacts | 8 |
| Connector Type | Receptacle |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
Stock: 4223
Distributors
pcbx
pcbxUnit Price$0.53177
Ext.Price$0.53177
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53177 | $0.53177 |
| 10 | $0.45226 | $4.52260 |
| 25 | $0.42576 | $10.64400 |
| 50 | $0.40780 | $20.39000 |
| 100 | $0.38814 | $38.81400 |
| 300 | $0.34802 | $104.40600 |
| 500 | $0.31205 | $156.02500 |
| 1000 | $0.27443 | $274.43000 |
