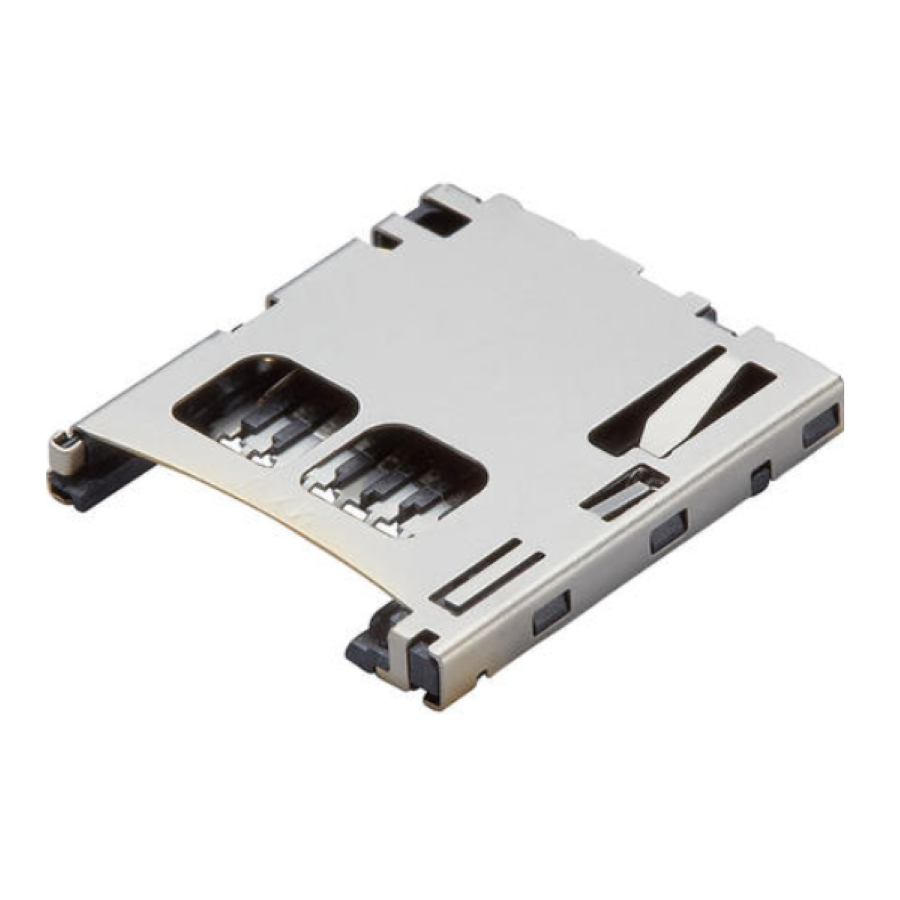

502570-0893
Manufacturer:
Molex
Mfr.Part #:
502570-0893
Datasheet:
Description:
Memory Connectors SMD/SMT Number of Positions:10 (8 + 2) Connector
| Parameter | Value |
|---|---|
| Length | 13.8 mm |
| Width | 1.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 10 V |
| Height | 1.8 mm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| Depth | 15.5 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.1 mm |
| Current Rating | 300 mA |
| Max Voltage Rating (DC) | 1010 V (1.01 kV) |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Number of Contacts | 8 |
| Ambient Temperature Range High | 85 °C |
| Connector Type | Connector |
| Number of Rows | 1 |
| Housing Material | Stainless Steel |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | VN |
| Number of Positions | 10 (8 + 2) |
Stock: 10578
Distributors
pcbx
pcbxUnit Price$2.37841
Ext.Price$2.37841
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.37841 | $2.37841 |
| 10 | $2.16554 | $21.65540 |
| 25 | $1.99626 | $49.90650 |
| 50 | $1.92787 | $96.39350 |
| 100 | $1.83383 | $183.38300 |
| 300 | $1.74041 | $522.12300 |
| 500 | $1.65173 | $825.86500 |
| 1000 | $1.36447 | $1364.47000 |
