5031590400
Manufacturer:
Molex
Mfr.Part #:
5031590400
Datasheet:
Description:

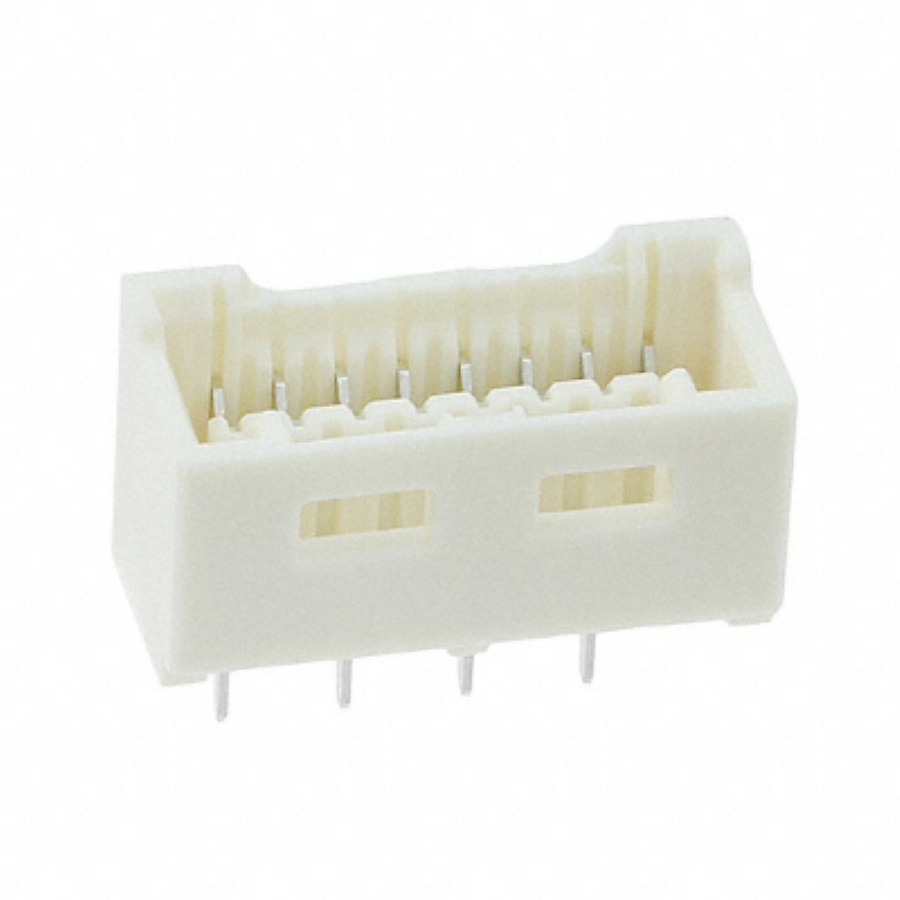

Headers and Wire Housings Through Hole Receptacle Number of Positions:4 Pitch:3 mm
| Parameter | Value |
|---|---|
| Length | 8.9 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Packaging | Tray |
| Voltage Rating | 100 V |
| Depth | 6.55 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.4 mm |
| Pitch | 3 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Beige |
| Gender | Socket (Female) |
| Number of Contacts | 4 |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Housing Color | Beige |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | JP |
| Termination Post Length | 3.4 mm |
Stock: 25075
Distributors
pcbx
pcbxUnit Price$0.31928
Ext.Price$0.31928
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31928 | $0.31928 |
| 10 | $0.27154 | $2.71540 |
| 25 | $0.25711 | $6.42775 |
| 50 | $0.24345 | $12.17250 |
| 100 | $0.23051 | $23.05100 |
| 300 | $0.21777 | $65.33100 |
| 500 | $0.20573 | $102.86500 |
| 1000 | $0.19466 | $194.66000 |
| 3000 | $0.18419 | $552.57000 |
| 5000 | $0.17428 | $871.40000 |
| 10000 | $0.16491 | $1649.10000 |
