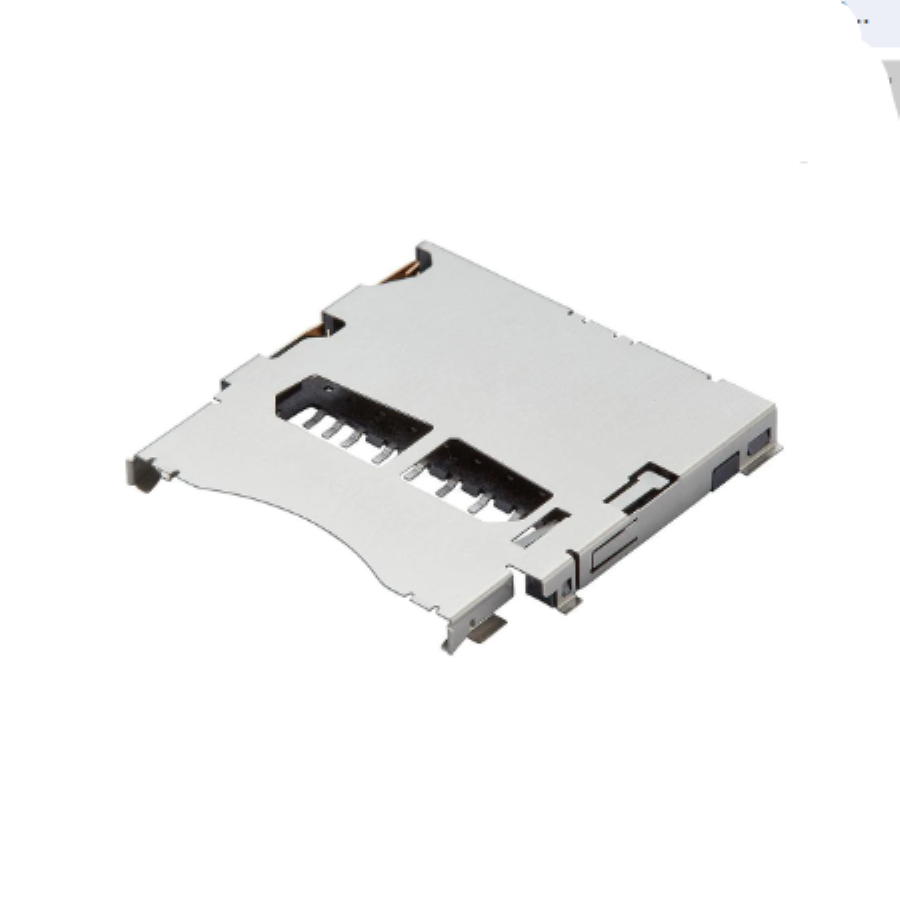

503500-0991
Manufacturer:
Molex
Mfr.Part #:
503500-0991
Datasheet:
Description:
Memory Connectors SMD/SMT Number of Positions:12 Connector, Socket
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 4.8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Number of Pins | 9 |
| Height | 2.95 mm |
| Packaging | Bulk |
| Depth | 2.95 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.5 mm |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Output Current | 5 mA |
| Number of Circuits | 9 |
| Orientation | Right Angle |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.5 V |
| Gender | Female |
| Number of Contacts | 9 |
| Connector Type | Connector, Socket |
| Nominal Supply Current | 3 mA |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Stainless Steel |
| Max Voltage Rating (AC) | 50 V |
| Plating | Tin |
| Country of Origin | JP |
Stock: 117
Distributors
pcbx
pcbxUnit Price$2.97857
Ext.Price$2.97857
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.97857 | $2.97857 |
| 10 | $2.32797 | $23.27970 |
| 25 | $2.26351 | $56.58775 |
| 50 | $2.20083 | $110.04150 |
| 100 | $2.13989 | $213.98900 |
| 300 | $2.00909 | $602.72700 |
| 500 | $1.98344 | $991.72000 |
