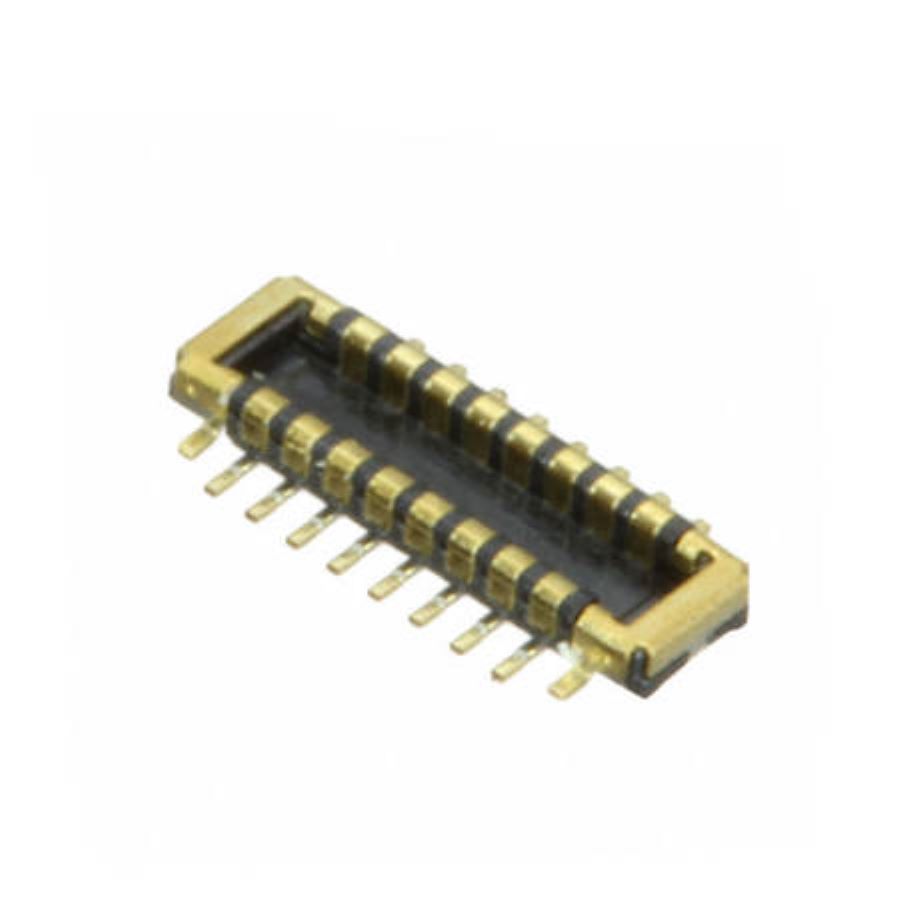

505070-1622
Manufacturer:
Molex
Mfr.Part #:
505070-1622
Datasheet:
Description:
Board to Board Connectors SMD/SMT Header Number of Positions:16 Number of Rows:2 Pitch:350 µm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 350 µm |
| Current Rating | 300 mA |
| Number of Circuits | 16 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | |
| Connector Type | Header |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Plating | Gold |
| Stack Height | 600 µm（0.6 mm） |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | JP |
| Mounting Angle | Vertical |
Stock: 17479
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.36078 | $3.60780 |
| 25 | $0.33000 | $8.25000 |
| 50 | $0.31333 | $15.66650 |
| 100 | $0.29751 | $29.75100 |
| 300 | $0.26962 | $80.88600 |
| 500 | $0.24434 | $122.17000 |
| 1000 | $0.22143 | $221.43000 |
| 3000 | $0.20680 | $620.40000 |
| 5000 | $0.19314 | $965.70000 |
| 10000 | $0.18039 | $1803.90000 |
