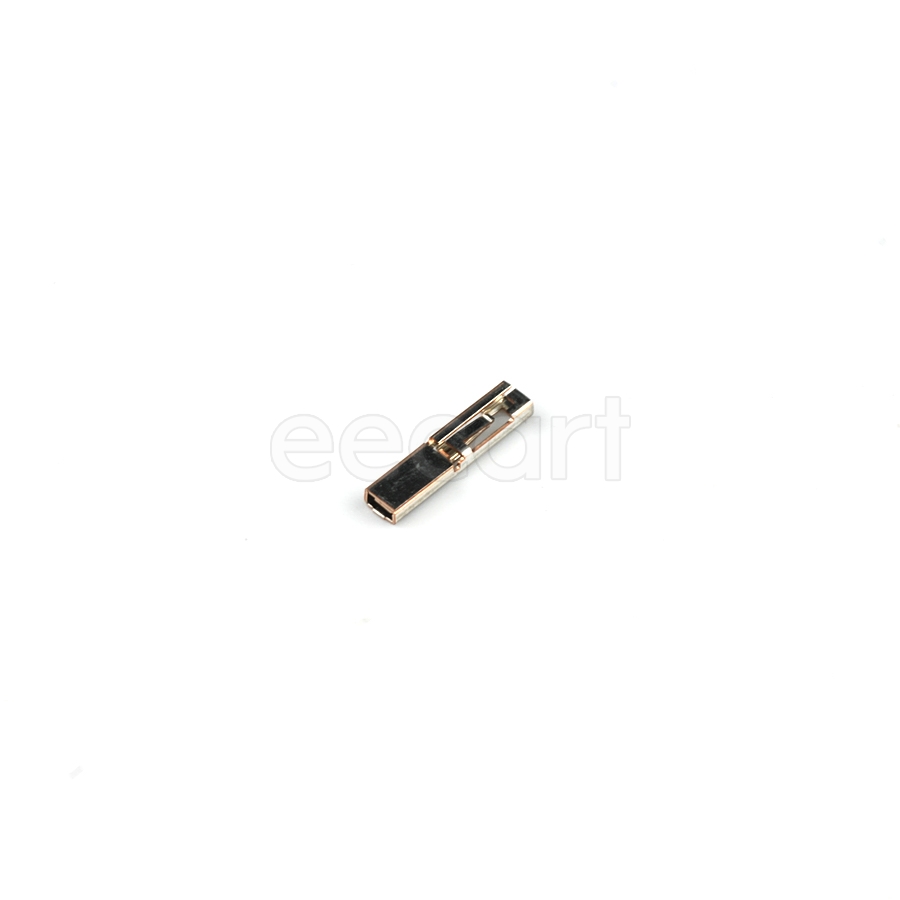

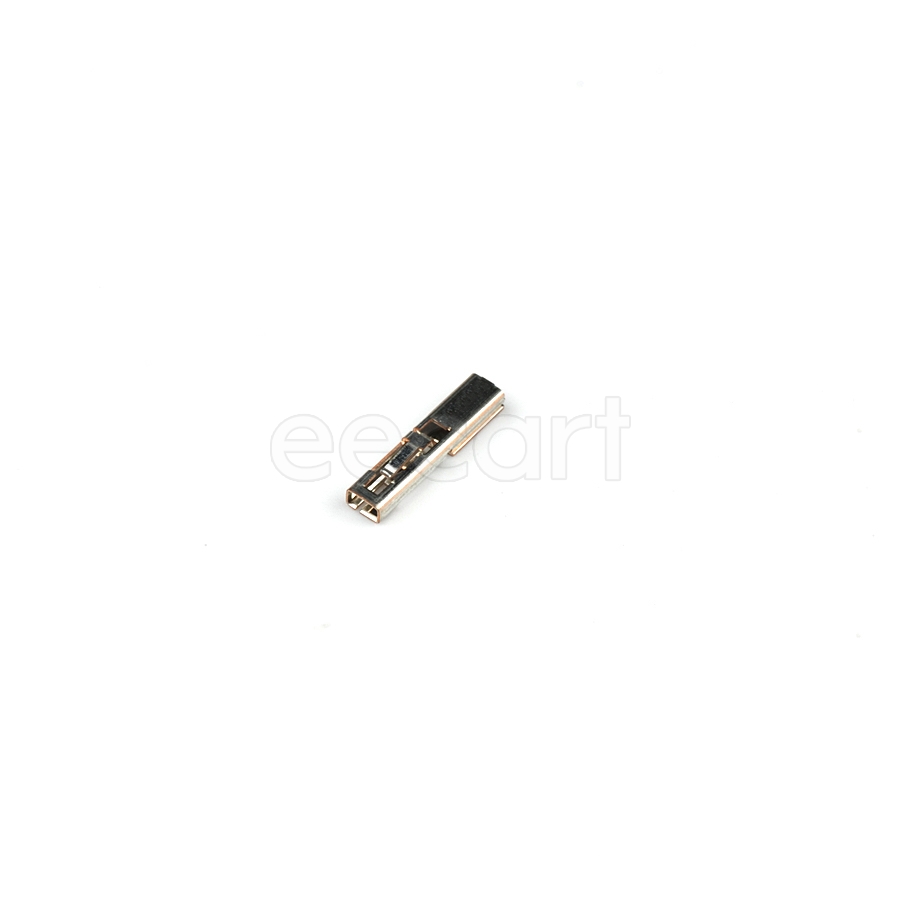

505072-0101
Manufacturer:
Molex
Mfr.Part #:
505072-0101
Datasheet:
Description:
Board to Board Connectors SMD/SMT Socket Number of Positions:1
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 1 |
| Height | 1.6 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Features | |
| Contact Material(Contact Finish) | Nickel, Tin |
| Current Rating | 3 A |
| Number of Circuits | 1 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 105 °C |
| Connector Type | Socket |
| Number of Positions | 1 |
| Fastening Type | Latch |
| Housing Color | |
| Wire Gauge | |
| Mating Post Length | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
| Termination Post Length | |
| Mounting Angle | Right Angle |
Stock: 315
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.08011 | $0.80110 |
| 50 | $0.07462 | $3.73100 |
| 100 | $0.06951 | $6.95100 |
| 500 | $0.06324 | $31.62000 |
| 1000 | $0.05754 | $57.54000 |
| 3000 | $0.05280 | $158.40000 |
| 5000 | $0.04845 | $242.25000 |
| 10000 | $0.04446 | $444.60000 |
| 30000 | $0.04446 | $1333.80000 |
