50579005
Manufacturer:
Molex
Mfr.Part #:
50579005
Datasheet:
Description:

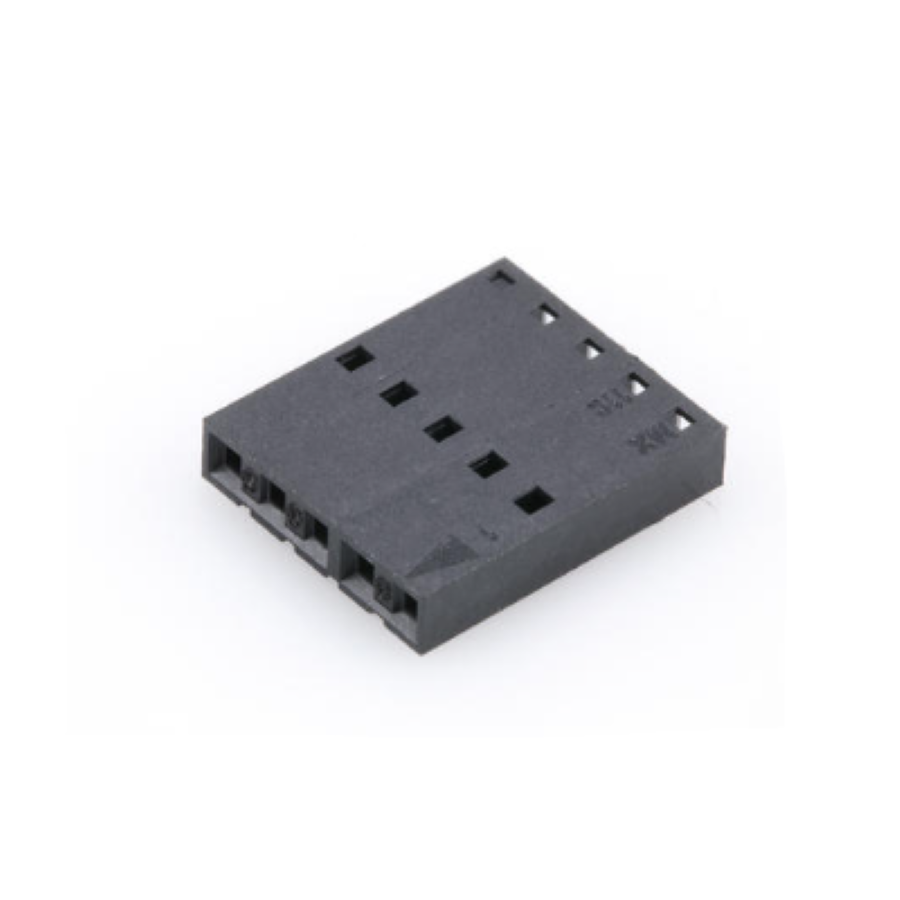

Headers and Wire Housings Cable Receptacle Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.67 mm |
| Width | 2.51 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.51 mm |
| Material | Polyester |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 15.24 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 5 |
| Connector Type | Receptacle |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
