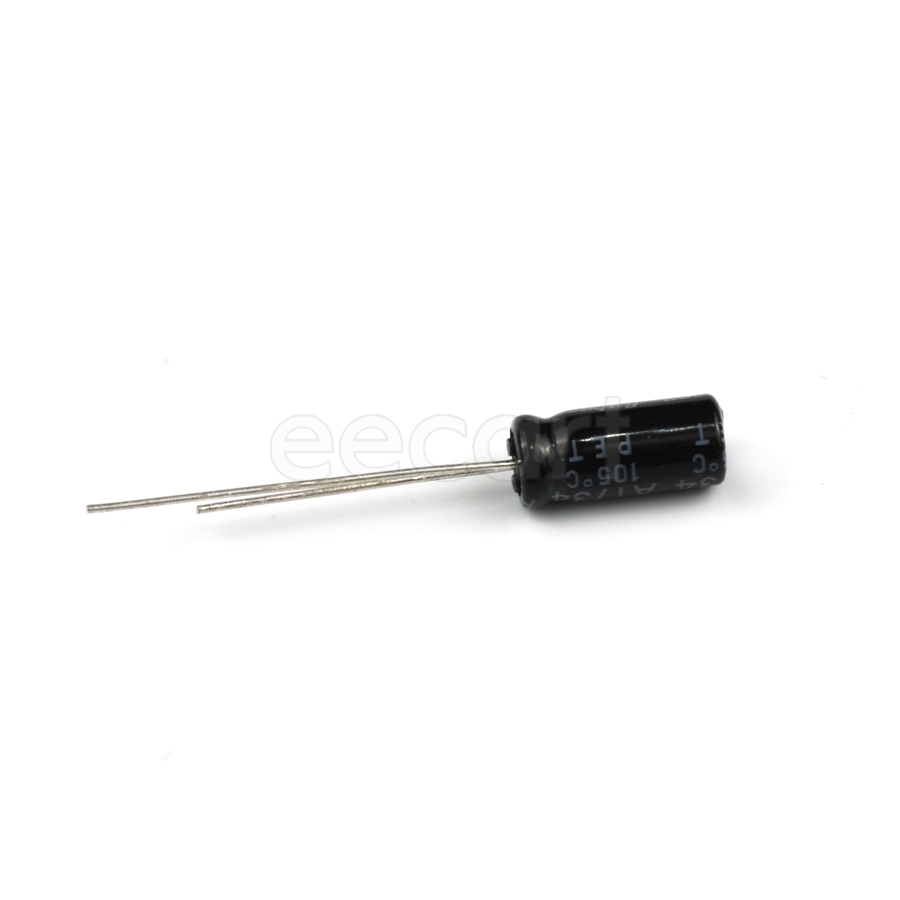

50YXF10MEFC5X11
Manufacturer:
Rubycon
Mfr.Part #:
50YXF10MEFC5X11
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,5.00mm×11.00mm Through Hole 10 µF 20 % 50 V
| Parameter | Value |
|---|---|
| Schedule B | 8532220020 |
| Termination | Radial |
| Voltage Rating (AC) | 50 V |
| Capacitance | 10 µF |
| Height - Seated (Max) | 12.5 mm |
| Life (Hours) | 5000 Hours |
| Voltage Rating (DC) | 50 V |
| Impedance | 1.5 Ω |
| Packaging | Bulk |
| Ripple Current | 42 mA |
| Min Operating Temperature | -40 °C |
| Diameter | 5 mm |
| Max Operating Temperature | 105 °C |
| Number of Pins | 2 |
| Lead Pitch | 2 mm |
| Case/Package | Radial |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Dielectric Material | Aluminium |
| Voltage Rating | 50 V |
| Tolerance | 20 % |
| Height | 11 mm |
| Ripple Current @ Low Frequency | 42 mA @ 120 Hz |
| Mount | Through Hole |
| RoHS | Compliant |
Stock: 39045
Distributors
pcbx
pcbxUnit Price$0.09100
Ext.Price$0.09100
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09100 | $0.09100 |
| 10 | $0.04550 | $0.45500 |
| 50 | $0.04133 | $2.06650 |
| 100 | $0.03754 | $3.75400 |
| 500 | $0.03193 | $15.96500 |
| 1000 | $0.02716 | $27.16000 |
| 3000 | $0.02595 | $77.85000 |
| 5000 | $0.02479 | $123.95000 |
| 10000 | $0.02352 | $235.20000 |
