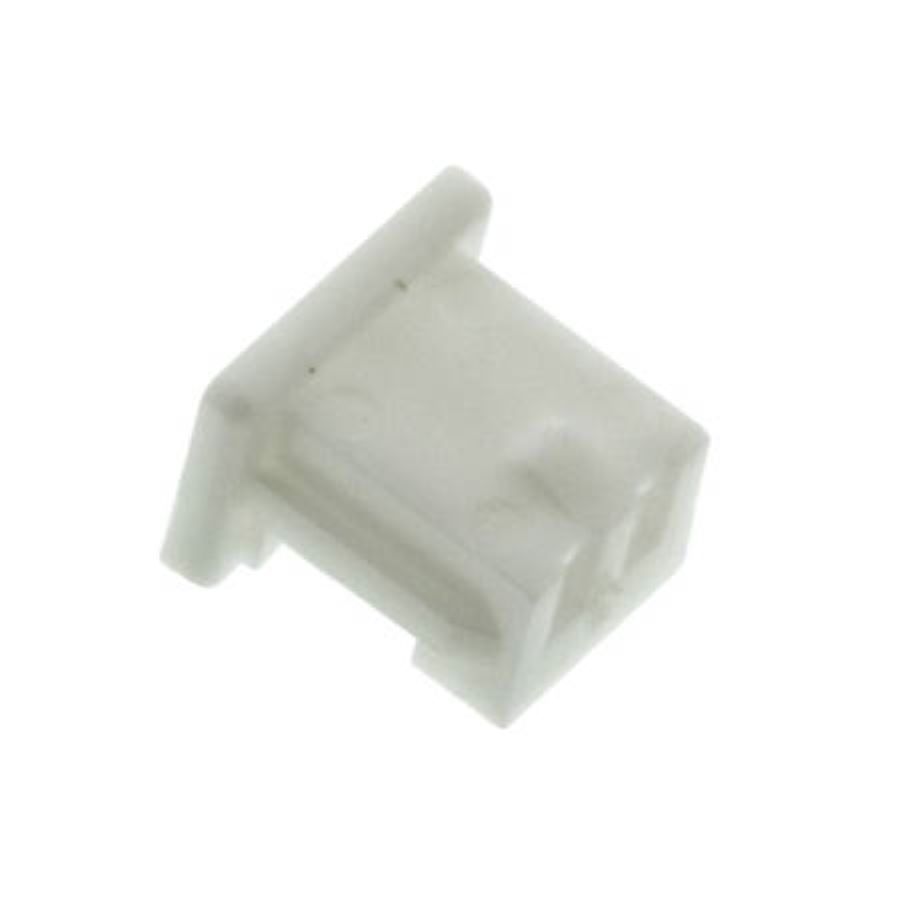

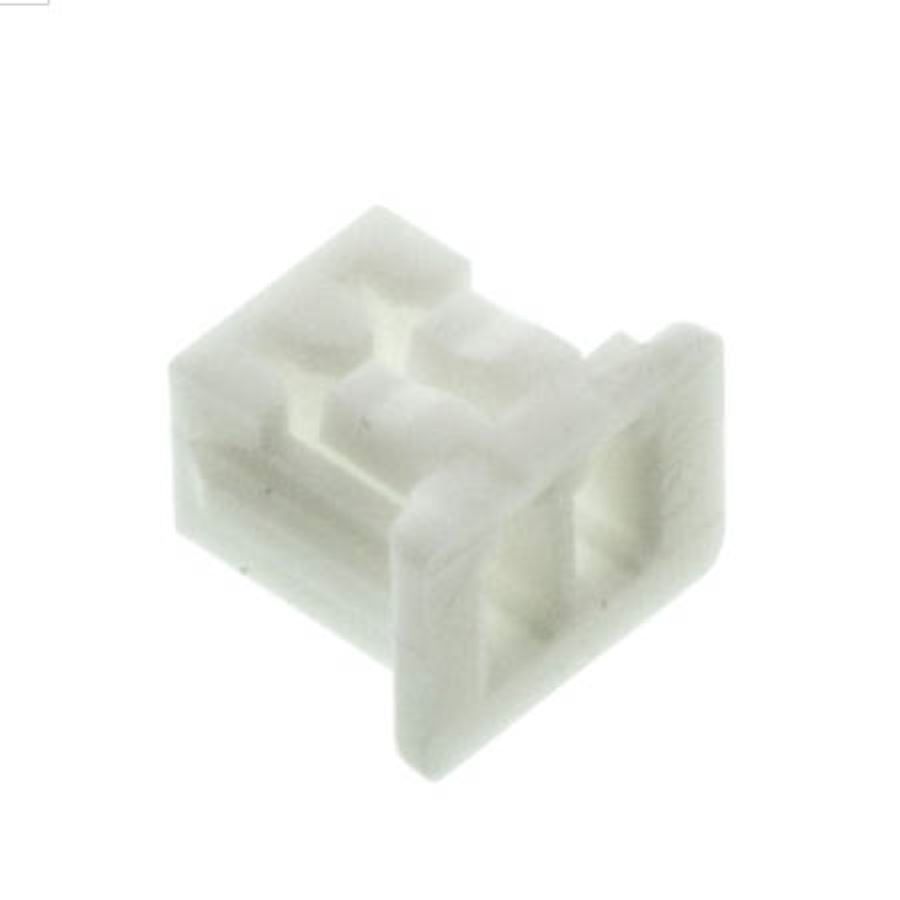

510210200
Manufacturer:
Molex
Mfr.Part #:
510210200
Datasheet:
Description:
Headers and Wire Housings Cable Power, Rectangular, Socket Number of Positions:2 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 4.25 mm |
| Width | 3.2 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 2 |
| Height | 3.2 mm |
| Packaging | Bulk |
| Depth | 3.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| Voltage | 125 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 1.25 mm |
| Current | 1 A |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 20 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 2 |
| Body Material | PBT, Polyester |
| Connector Type | Power, Rectangular, Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TW |
Stock: 46226
Distributors
pcbx
pcbxUnit Price$0.03694
Ext.Price$0.03694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.03694 | $0.03694 |
| 10 | $0.01847 | $0.18470 |
| 50 | $0.01421 | $0.71050 |
| 100 | $0.01297 | $1.29700 |
| 500 | $0.01183 | $5.91500 |
| 1000 | $0.01111 | $11.11000 |
| 3000 | $0.01043 | $31.29000 |
| 5000 | $0.00980 | $49.00000 |
| 10000 | $0.00920 | $92.00000 |
| 30000 | $0.00864 | $259.20000 |
| 50000 | $0.00812 | $406.00000 |
