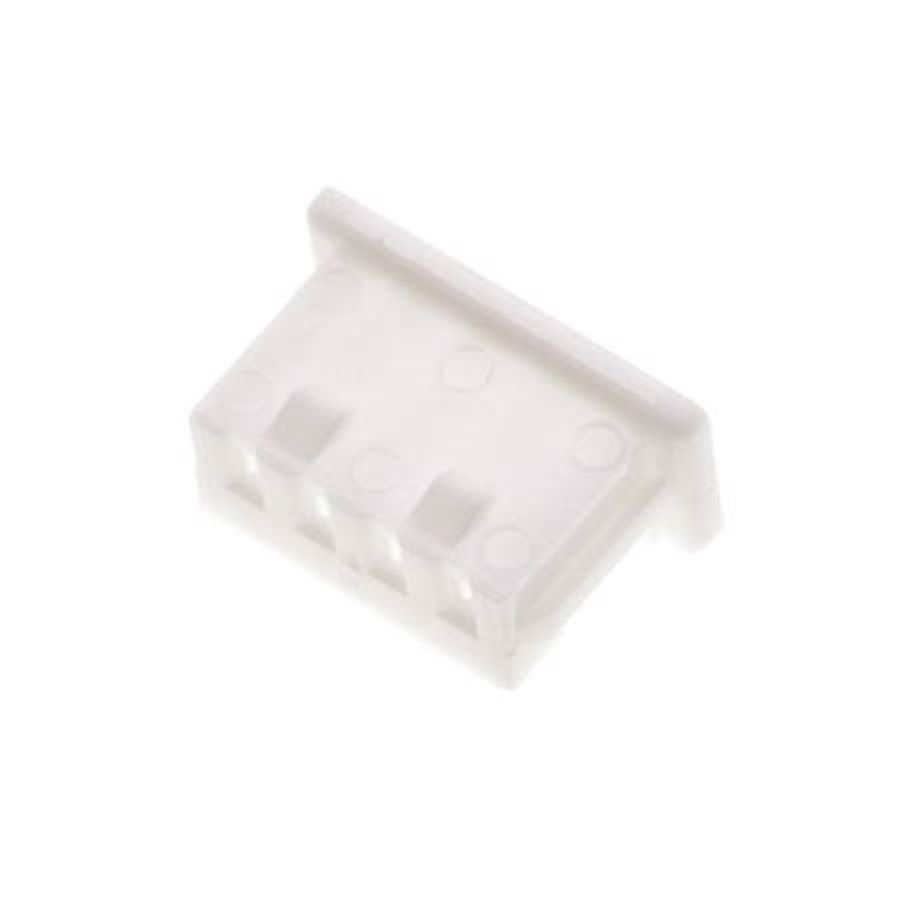

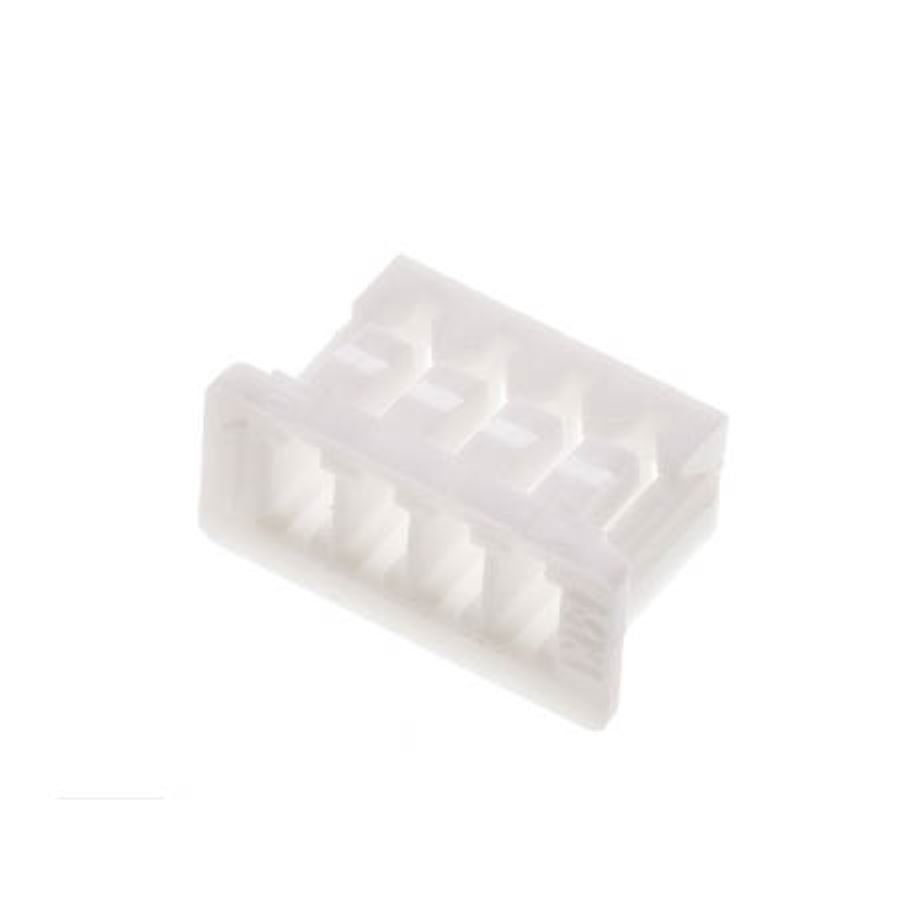

510210400
Manufacturer:
Molex
Mfr.Part #:
510210400
Datasheet:
Description:
Headers and Wire Housings Cable Receptacle Number of Positions:4 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 6.75 mm |
| Width | 3.2 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 4 |
| Packaging | Bulk |
| Depth | 3.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| Voltage | 125 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 1.25 mm |
| Current | 1 A |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 27655
Distributors
pcbx
pcbxUnit Price$0.05068
Ext.Price$0.05068
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.05068 | $0.05068 |
| 10 | $0.02534 | $0.25340 |
| 50 | $0.01949 | $0.97450 |
| 100 | $0.01782 | $1.78200 |
| 500 | $0.01630 | $8.15000 |
| 1000 | $0.01548 | $15.48000 |
| 3000 | $0.01471 | $44.13000 |
| 5000 | $0.01397 | $69.85000 |
| 10000 | $0.01327 | $132.70000 |
| 30000 | $0.01261 | $378.30000 |
| 50000 | $0.01198 | $599.00000 |
