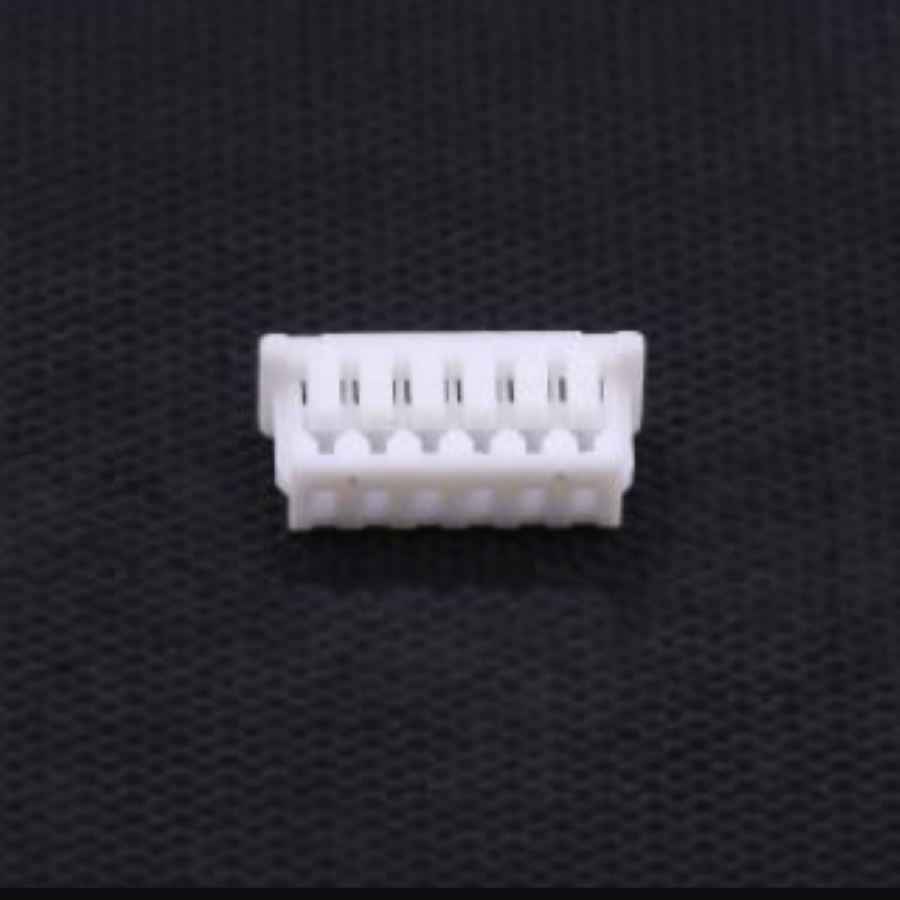

510211100
Manufacturer:
Molex
Mfr.Part #:
510211100
Datasheet:
Description:
Headers and Wire Housings Cable, PCB Power, Rectangular Number of Positions:11 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 15.5 mm |
| Width | 3.2 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 11 |
| Packaging | Bulk |
| Depth | 3.95 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 11 |
| Connector Type | Power, Rectangular |
| Wire/Cable Gauge | 32 AWG |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TW |
