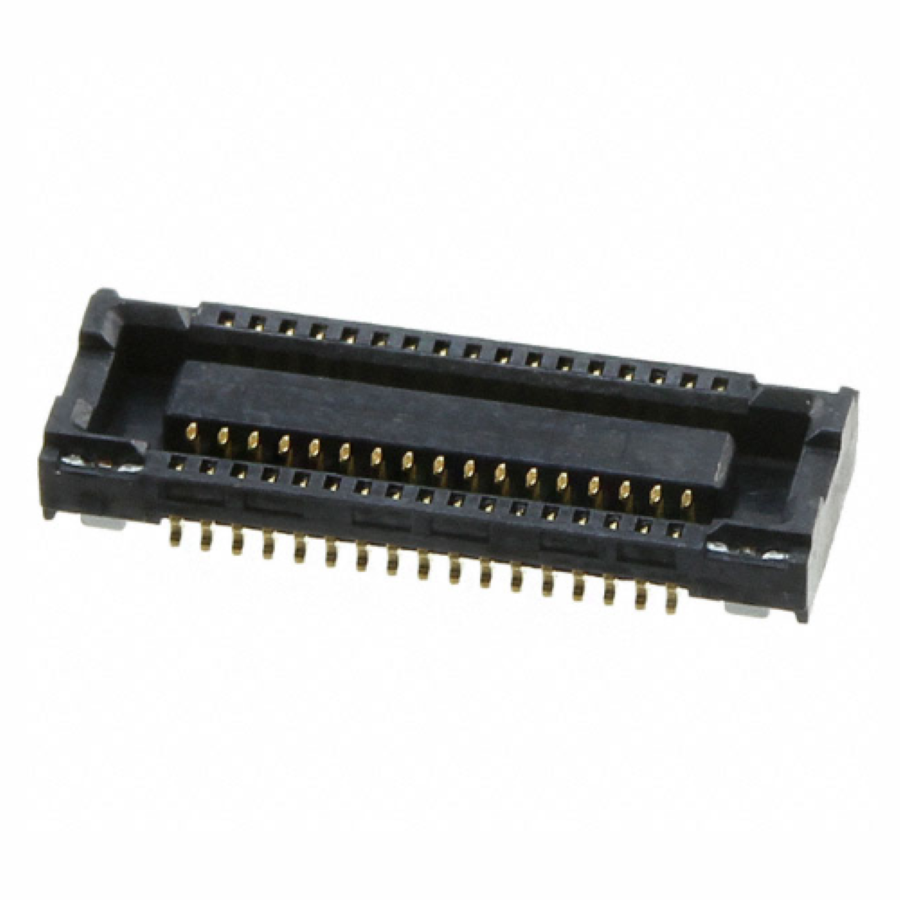

51338-9873
Manufacturer:
Molex
Mfr.Part #:
51338-9873
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle, Center Strip Contacts Number of Positions:10 Number of Rows:2 Row Spacing:1.1 mm Pitch:400 µm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 400 µm |
| Current Rating | 300 mA |
| Number of Circuits | 10 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 10 |
| ELV | Compliant |
| Connector Type | Receptacle, Center Strip Contacts |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.1 mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Plating | Gold |
| glow wire compliant | Non-compliant |
| Stack Height | 1.5 mm, 2 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | KR |
| Mounting Angle | Vertical |
Stock: 15136
Distributors
pcbx
pcbxUnit Price$0.60700
Ext.Price$0.60700
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60700 | $0.60700 |
| 10 | $0.51723 | $5.17230 |
| 25 | $0.49586 | $12.39650 |
| 50 | $0.48560 | $24.28000 |
| 100 | $0.46423 | $46.42300 |
| 300 | $0.41978 | $125.93400 |
| 500 | $0.37959 | $189.79500 |
| 1000 | $0.34624 | $346.24000 |
