52018-6646
Manufacturer:
Molex
Mfr.Part #:
52018-6646
Datasheet:
Description:

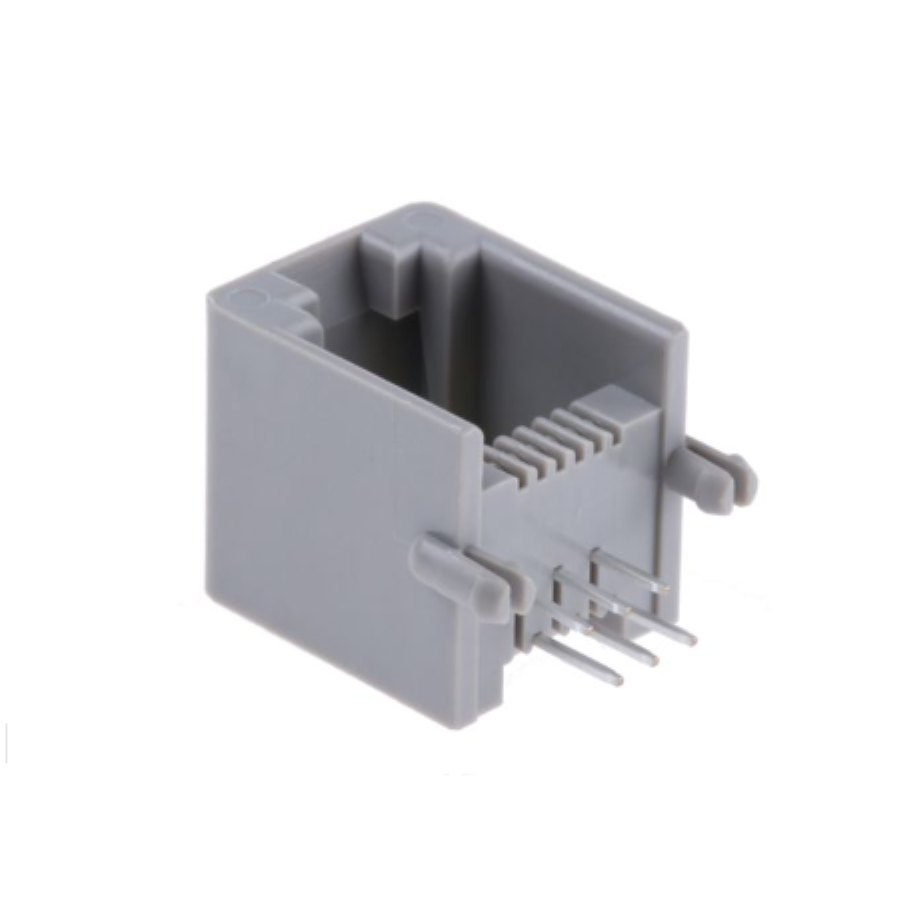

Modular / Ethernet Connectors Through Hole RJ11 Female
| Parameter | Value |
|---|---|
| Length | 12.2 mm |
| Width | 13 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Depth | 13 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.04 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Grey |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Direction(Counting Sequence) | Up |
| Connector Type | Socket |
| Number of Positions | 6 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Housing Color | Gray |
| Number of Positions Loaded | 6 |
| Mounting Angle | Right Angle |
| Performance Category | |
| Accessory Type | |
| USOC Codes | RJ11 |
| Number of Positions/Contacts | 6P6C |
