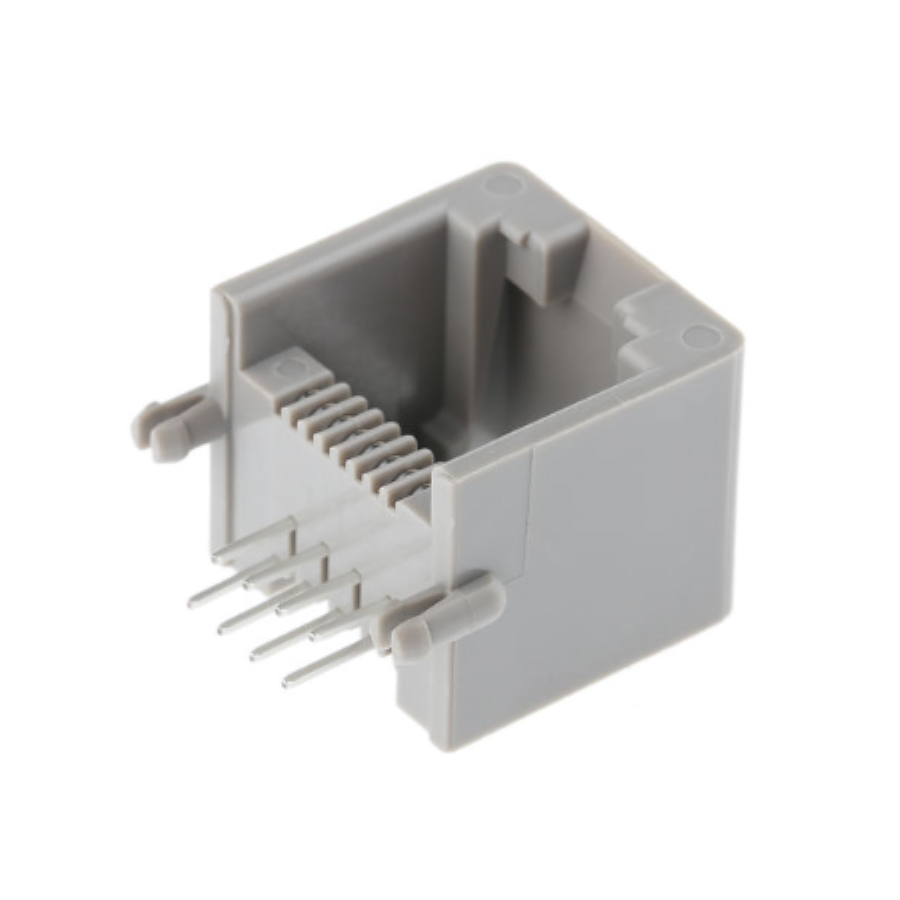

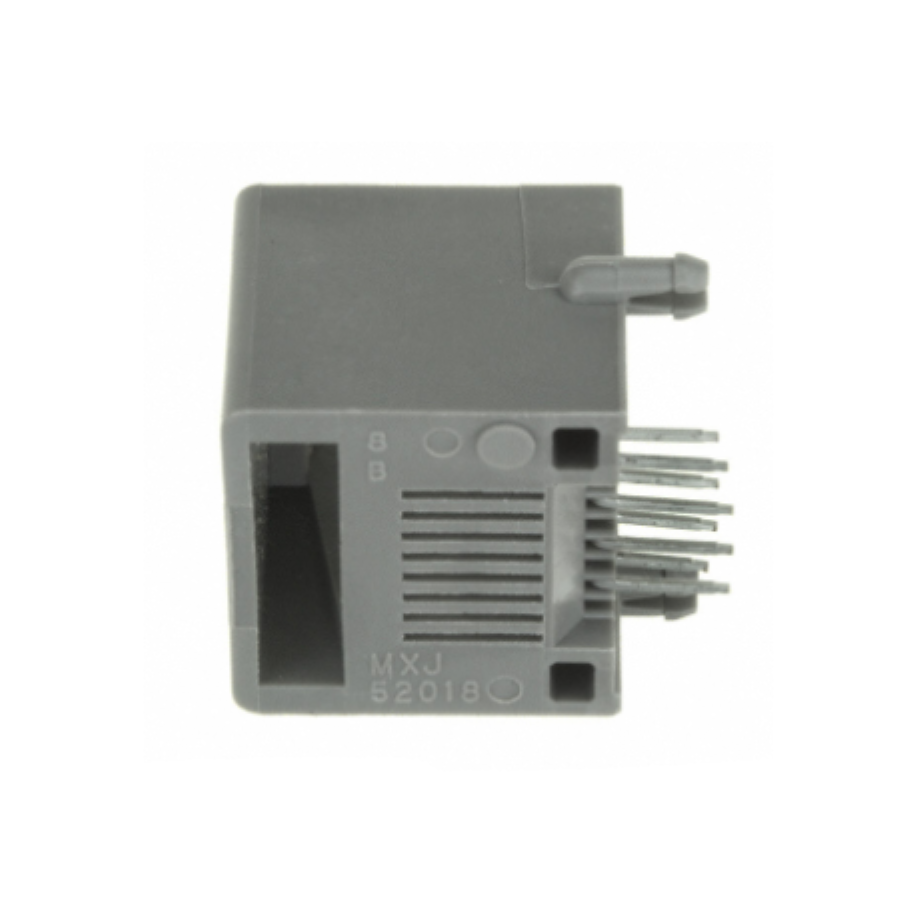

52018-8846
Manufacturer:
Molex
Mfr.Part #:
52018-8846
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ11 Female Current Rating:1.2 A Voltage Rating:1000 V (1 kV)
| Parameter | Value |
|---|---|
| Length | 15 mm |
| Width | 15 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Height | 14.5 mm |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 13 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.04 mm |
| Number of Terminals | 8 |
| Current Rating | 1.2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Grey |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | Up |
| Connector Type | RJ45, Socket |
| Number of Positions | 8 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Housing Color | Gray |
| Plating | Tin |
| Number of Positions Loaded | 8 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ11 |
| Number of Positions/Contacts | 8P8C |
