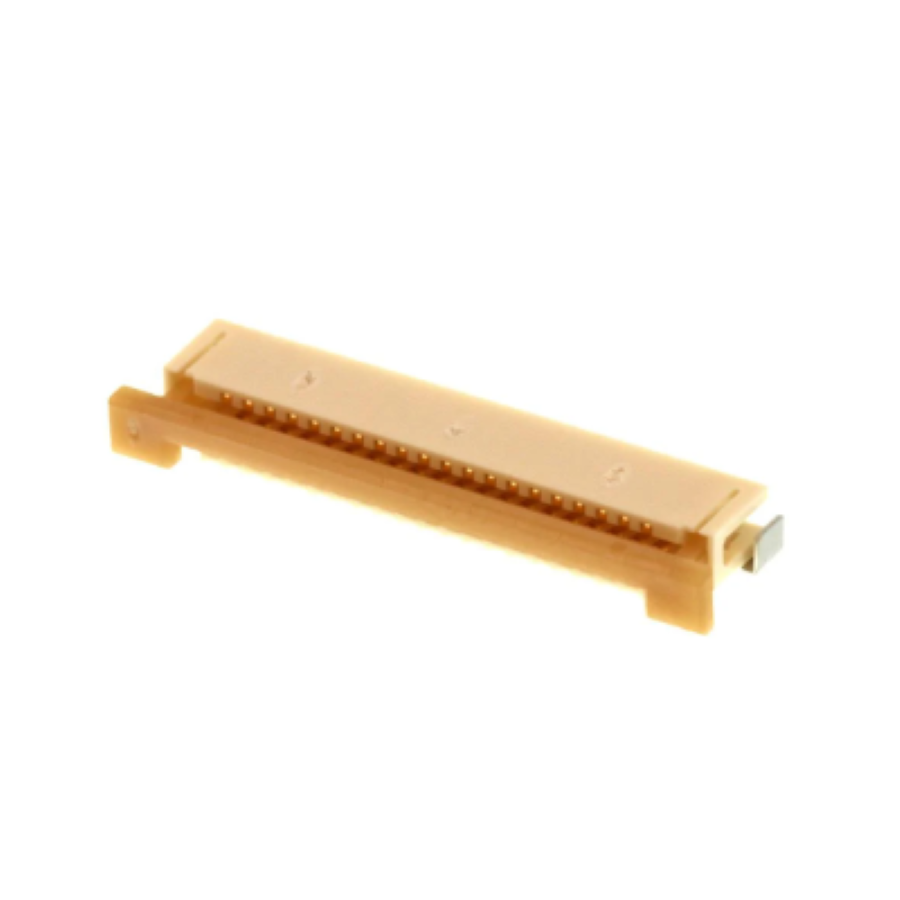

52271-2069
Manufacturer:
Molex
Mfr.Part #:
52271-2069
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:20 500 mA 50 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 27 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 6.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 5.05 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 20 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 20 |
| ELV | Compliant |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Housing Color | Natural |
| Plating | Tin |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
Stock: 2704
Distributors
pcbx
pcbxUnit Price$1.32685
Ext.Price$1.32685
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.32685 | $1.32685 |
| 10 | $1.12680 | $11.26800 |
| 25 | $1.05755 | $26.43875 |
| 50 | $1.00796 | $50.39800 |
| 100 | $0.95752 | $95.75200 |
| 300 | $0.90613 | $271.83900 |
| 500 | $0.85750 | $428.75000 |
| 1000 | $0.78226 | $782.26000 |
