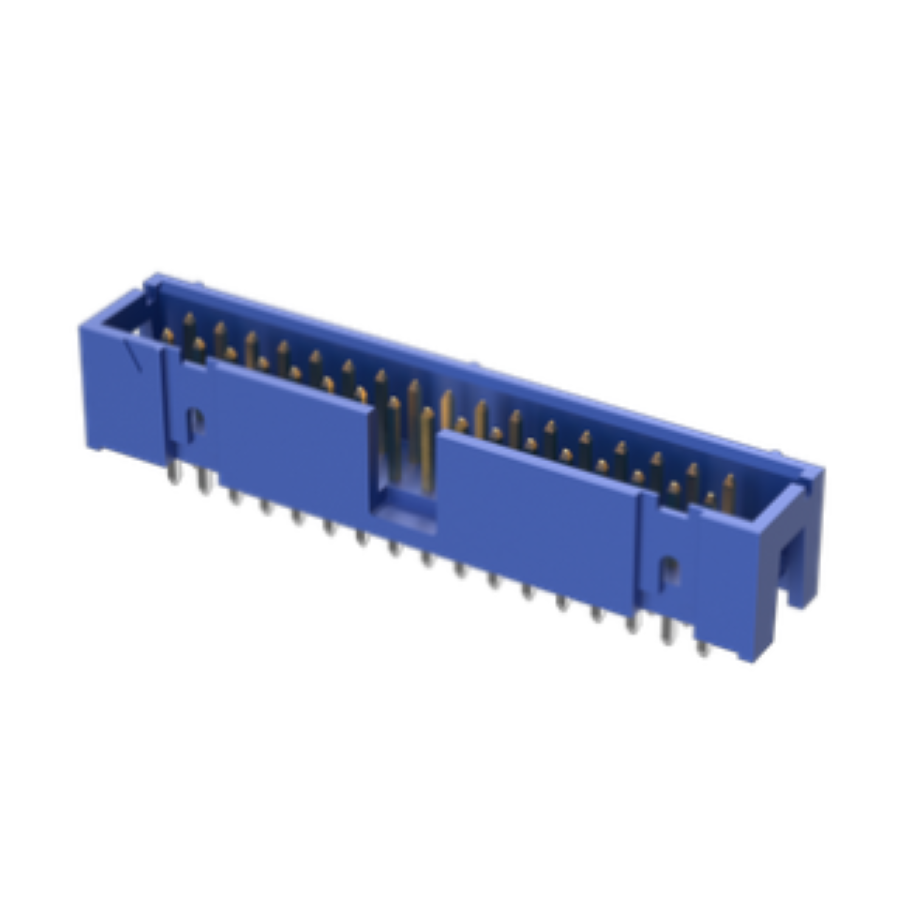

52601-S16-4LF
Manufacturer:
Amphenol
Mfr.Part #:
52601-S16-4LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 27.68 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tray |
| Voltage Rating | 500 V |
| Depth | 8.76 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.05 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 16 |
| Connector Type | Header |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.85 mm |
| Termination Post Length | 3.05 mm |
Stock: 2762
Distributors
pcbx
pcbxUnit Price$0.77627
Ext.Price$0.77627
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.77627 | $0.77627 |
| 10 | $0.74249 | $7.42490 |
| 25 | $0.71018 | $17.75450 |
| 50 | $0.67927 | $33.96350 |
| 100 | $0.64971 | $64.97100 |
| 300 | $0.62143 | $186.42900 |
| 500 | $0.59439 | $297.19500 |
| 1000 | $0.56853 | $568.53000 |
