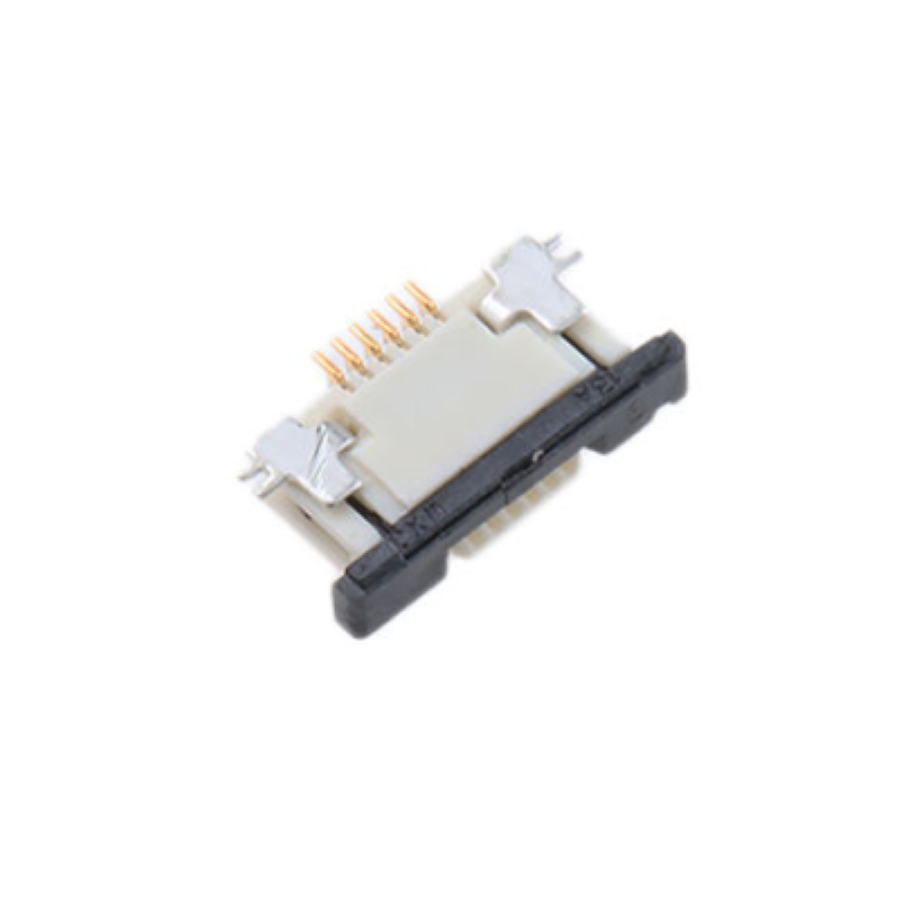

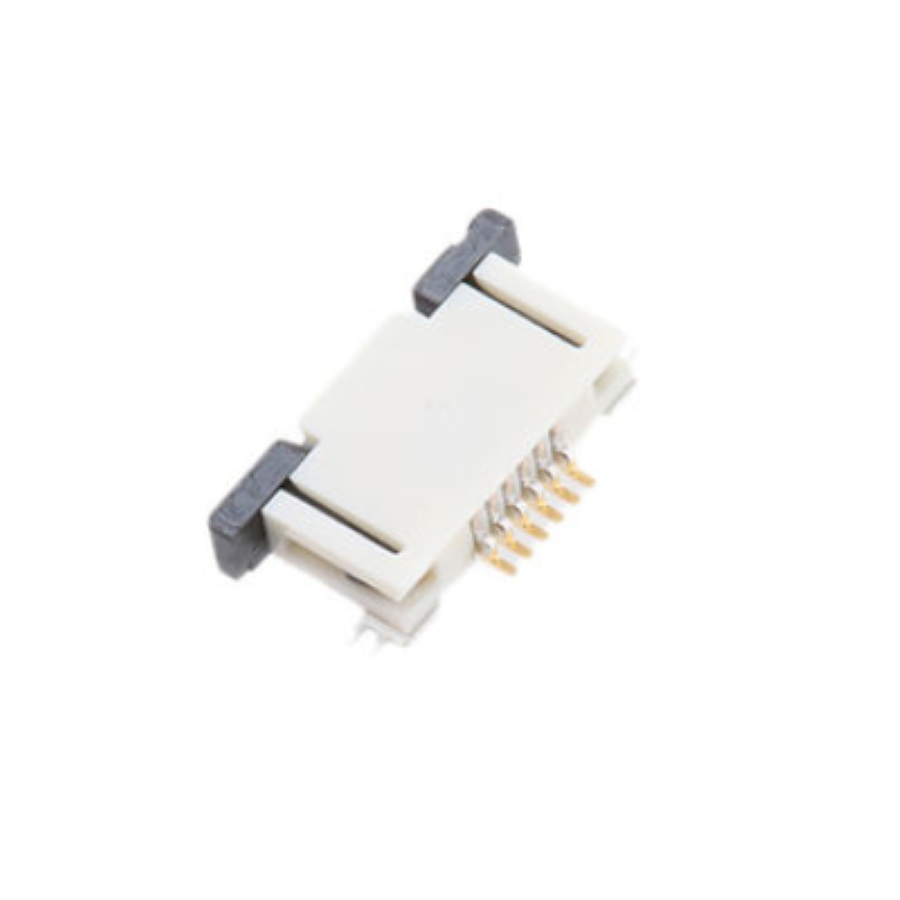

52745-0697
Manufacturer:
Molex
Mfr.Part #:
52745-0697
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:6 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 9.1 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 6 |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 6 |
| ELV | Compliant |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Resistance | 20 mΩ |
| Housing Color | White |
| Plating | Gold |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
Stock: 16935
Distributors
pcbx
pcbxUnit Price$0.56938
Ext.Price$0.56938
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56938 | $0.56938 |
| 10 | $0.48902 | $4.89020 |
| 25 | $0.45910 | $11.47750 |
| 50 | $0.43943 | $21.97150 |
| 100 | $0.41891 | $41.89100 |
| 300 | $0.39831 | $119.49300 |
| 500 | $0.37873 | $189.36500 |
| 1000 | $0.32830 | $328.30000 |
