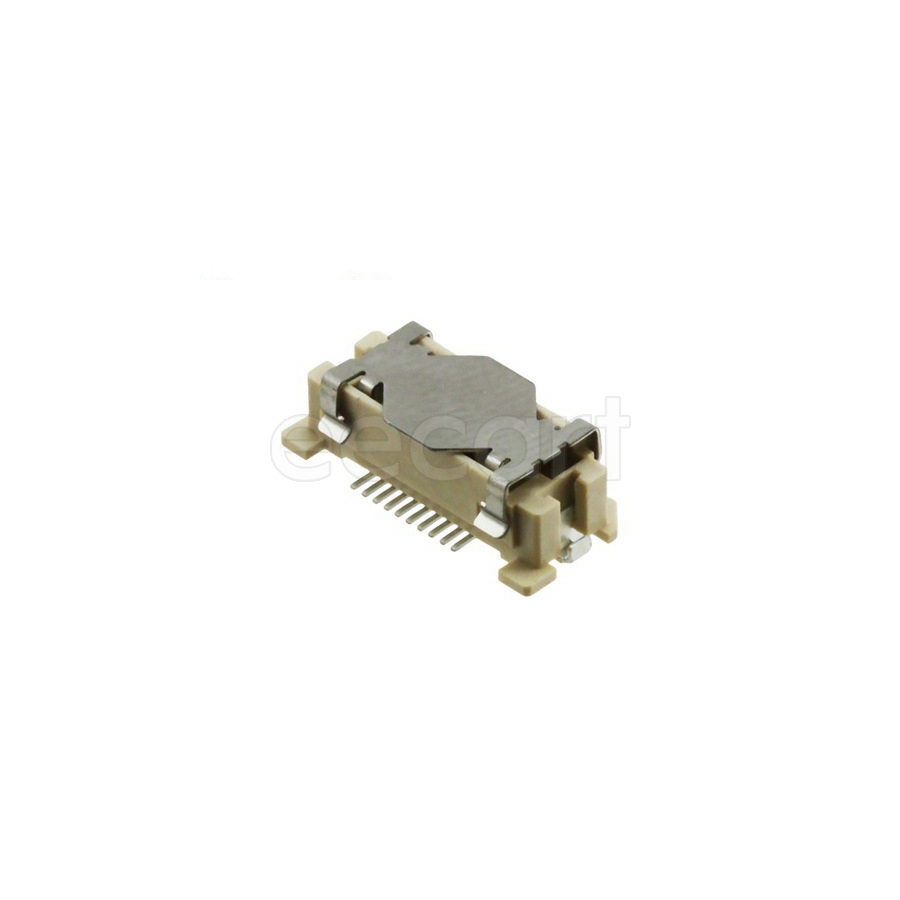

52885-0274
Manufacturer:
Molex
Mfr.Part #:
52885-0274
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Center Strip Contacts Number of Positions:20 Pitch:635 µm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 14.22 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 6.4 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 640 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 635 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 20 |
| Orientation | Vertical, Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 4.8 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Stack Height | 6 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Connector Type | Receptacle, Center Strip Contacts |
Stock: 4689
Distributors
pcbx
pcbxUnit Price$1.79620
Ext.Price$1.79620
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.79620 | $1.79620 |
| 10 | $1.63377 | $16.33770 |
| 25 | $1.55170 | $38.79250 |
| 50 | $1.51408 | $75.70400 |
| 100 | $1.43970 | $143.97000 |
| 300 | $1.32901 | $398.70300 |
| 500 | $1.22683 | $613.41500 |
| 1000 | $1.01993 | $1019.93000 |
