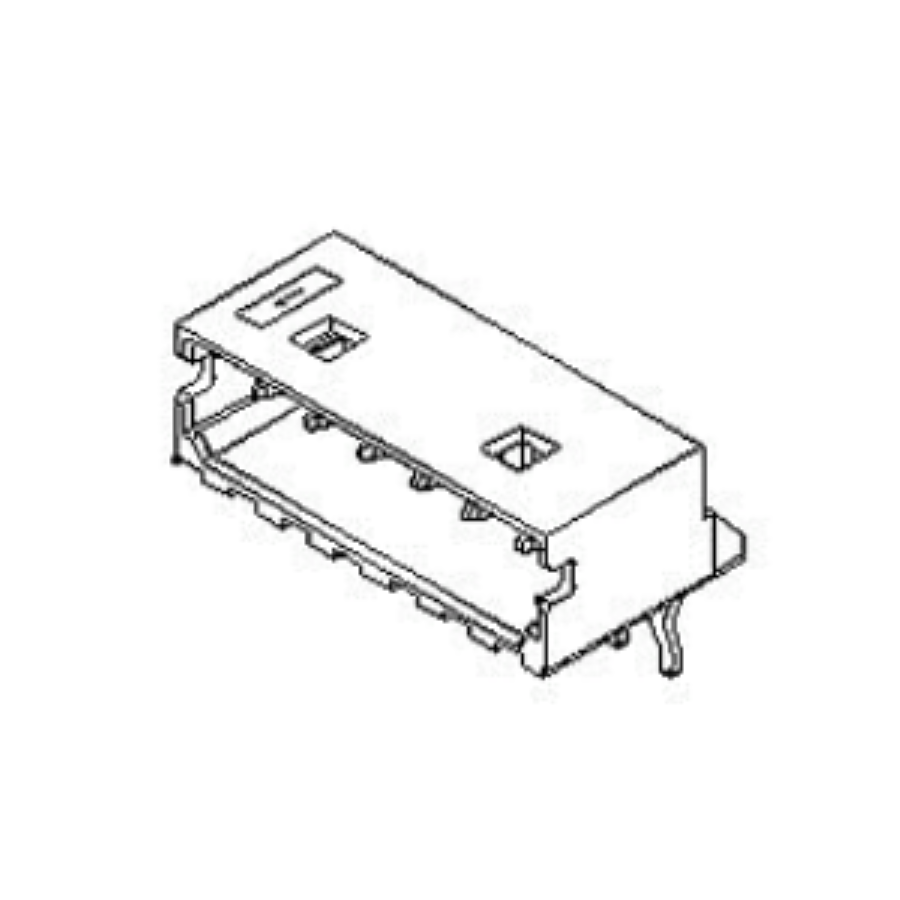

530150210
Manufacturer:
Molex
Mfr.Part #:
530150210
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Height | 4.65 mm |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| Depth | 7.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 15 |
| Orientation | Right Angle, Vertical |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Beige |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 3.1 mm |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
