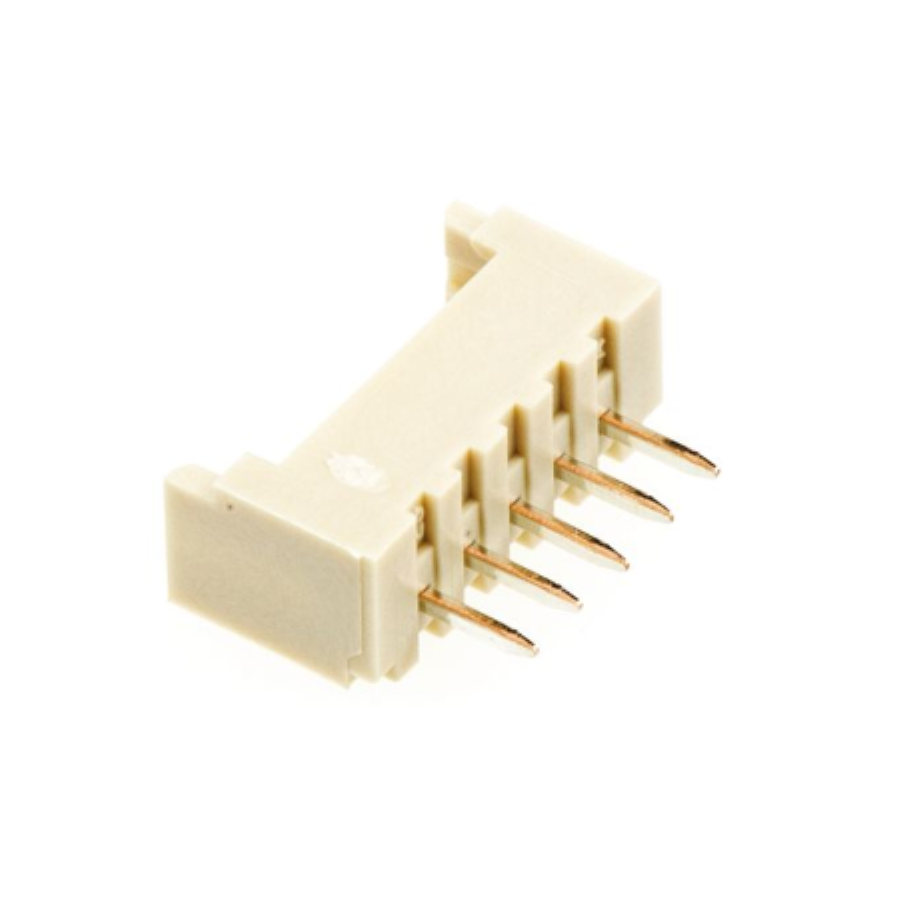

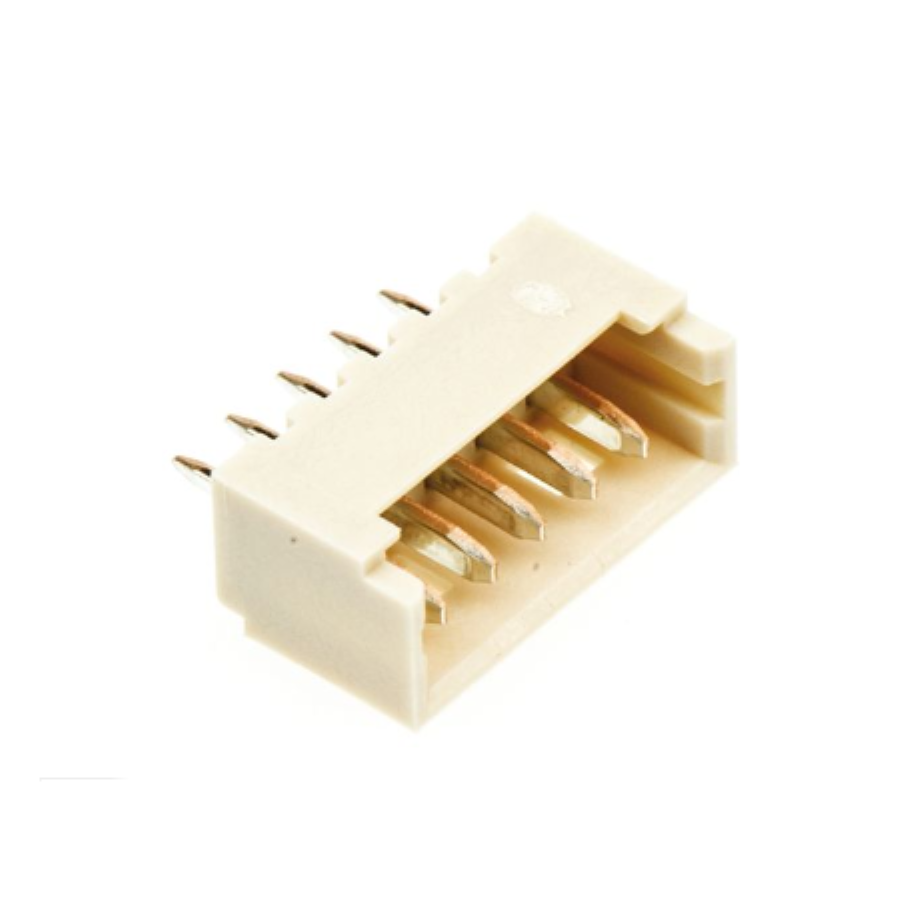

53047-0510
Manufacturer:
Molex
Mfr.Part #:
53047-0510
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:5 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 22.32 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 5 |
| Height | 4.4 mm |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 8.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Max Current Rating | 15 A |
| Max Voltage Rating (DC) | 300 V |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 5 |
| Number of Poles | 5 |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Body Plating | Tin |
| Mating Post Length | 2.25 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
| Termination Post Length | 2.3 mm |
Stock: 5773
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.16414 | $1.64140 |
| 50 | $0.15078 | $7.53900 |
| 100 | $0.13850 | $13.85000 |
| 500 | $0.12019 | $60.09500 |
| 1000 | $0.10430 | $104.30000 |
| 3000 | $0.09826 | $294.78000 |
| 5000 | $0.09257 | $462.85000 |
| 10000 | $0.08720 | $872.00000 |
