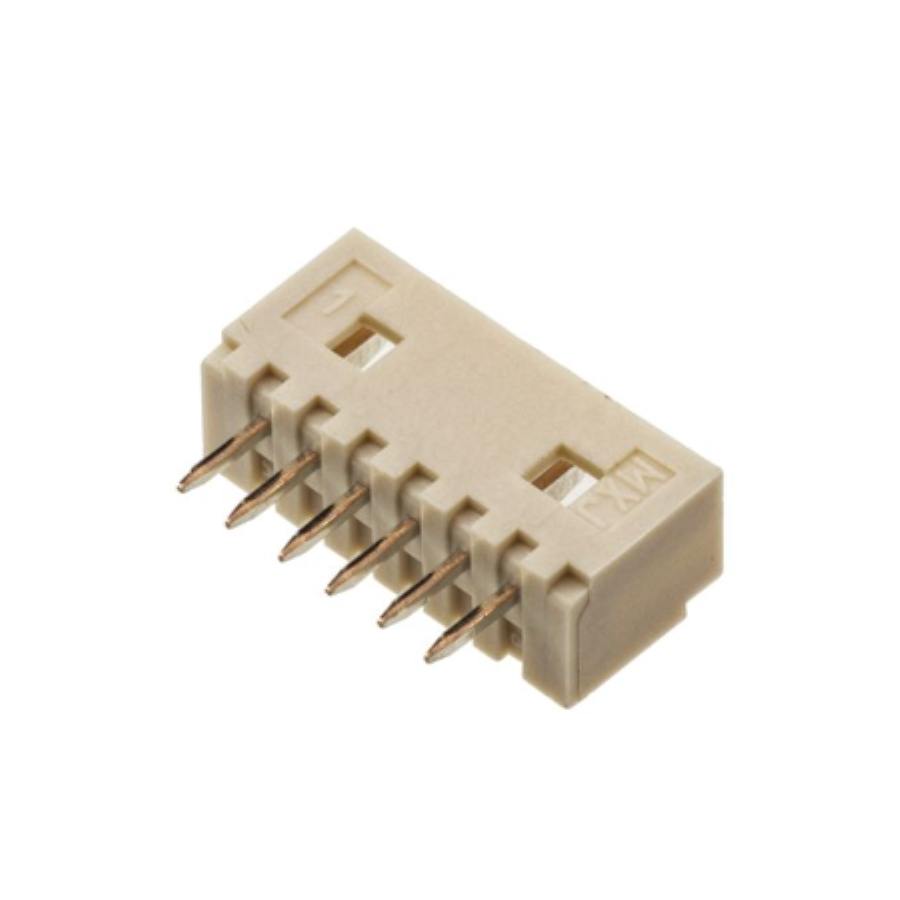

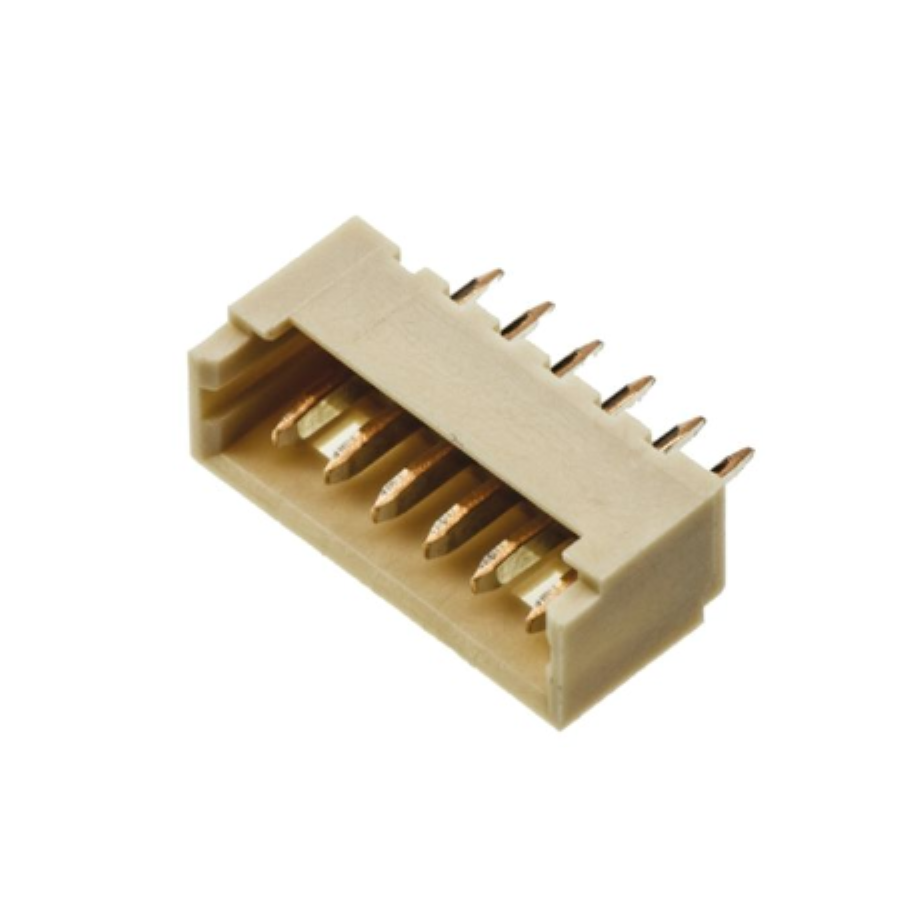

53047-0610
Manufacturer:
Molex
Mfr.Part #:
53047-0610
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 9.25 mm |
| Width | 3.2 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 6 |
| Height | 4.2 mm |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| Voltage | 125 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 1.25 mm |
| Current | 1 A |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Number of Poles | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Body Plating | Tin |
| Mating Post Length | 2.25 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
| Termination Post Length | 2.3 mm |
Stock: 19283
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.18552 | $1.85520 |
| 50 | $0.16177 | $8.08850 |
| 100 | $0.14106 | $14.10600 |
| 500 | $0.12664 | $63.32000 |
| 1000 | $0.11370 | $113.70000 |
| 3000 | $0.10687 | $320.61000 |
