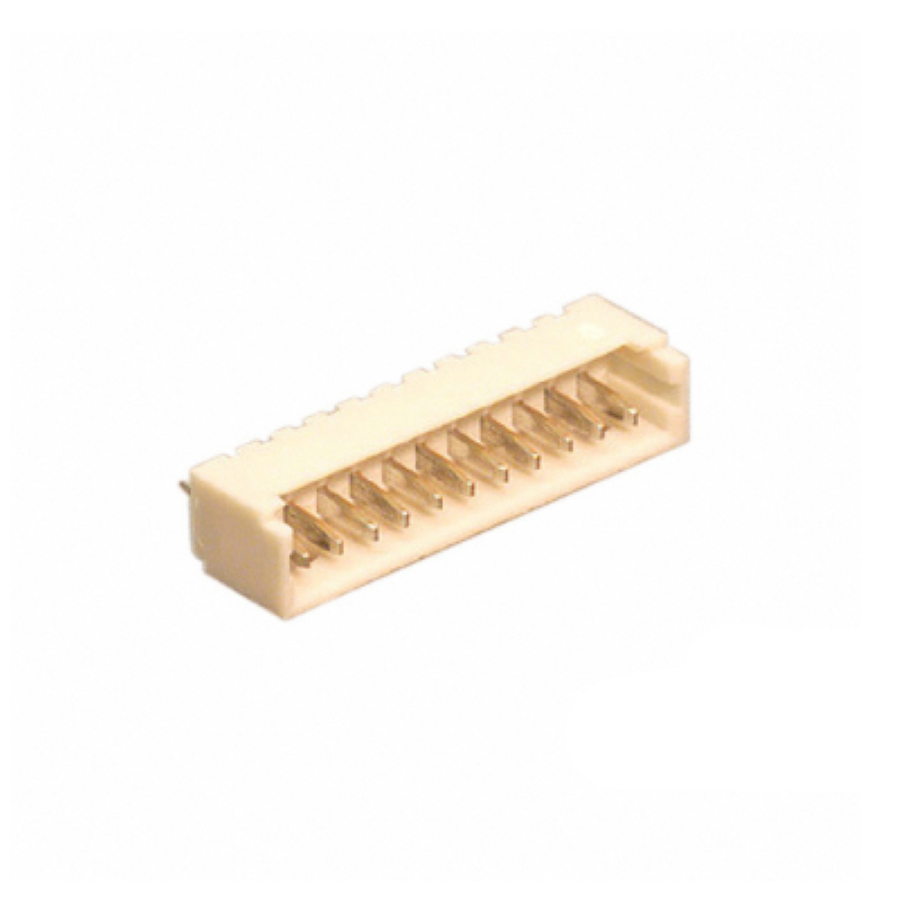

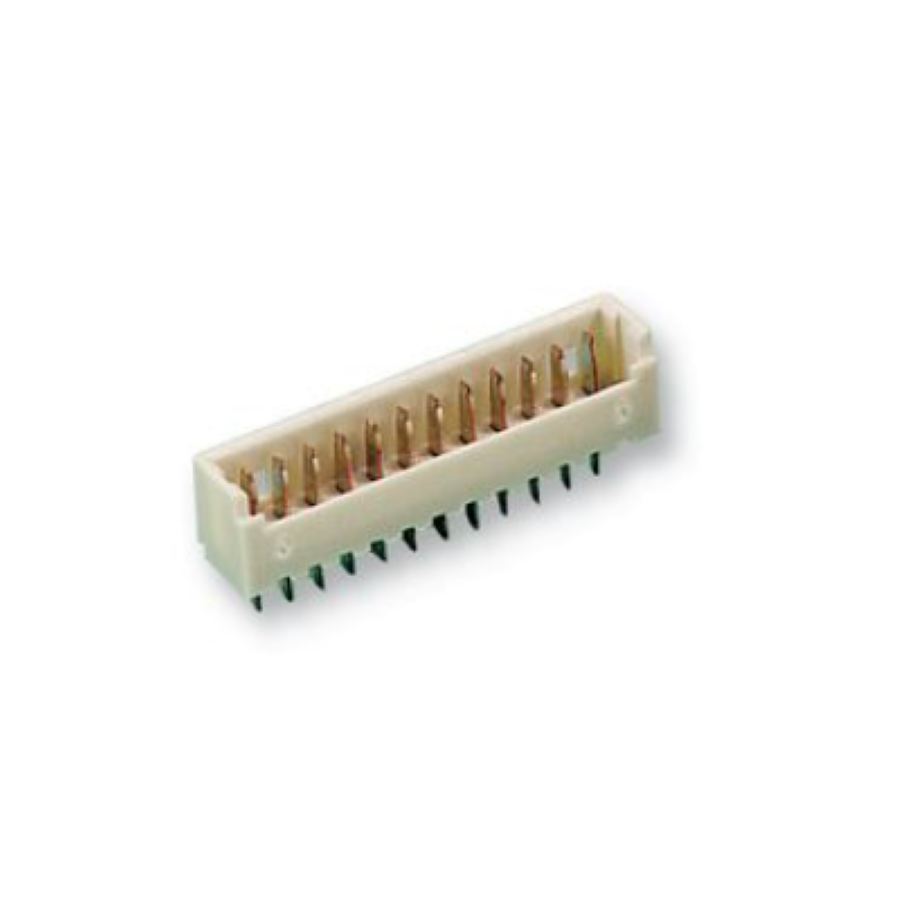

53047-1110
Manufacturer:
Molex
Mfr.Part #:
53047-1110
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:11 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 11 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 11 |
| Connector Type | Header |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 2.2606 mm |
| Body Plating | Tin |
| Mating Post Length | 2.25 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
| Termination Post Length | 2.3 mm |
Stock: 572
Distributors
pcbx
pcbxUnit Price$0.35650
Ext.Price$0.35650
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35650 | $0.35650 |
| 10 | $0.30264 | $3.02640 |
| 25 | $0.28640 | $7.16000 |
| 50 | $0.27103 | $13.55150 |
| 100 | $0.25648 | $25.64800 |
| 300 | $0.23129 | $69.38700 |
| 500 | $0.20857 | $104.28500 |
| 1000 | $0.18809 | $188.09000 |
| 3000 | $0.18552 | $556.56000 |
