530470810
Manufacturer:
Molex
Mfr.Part #:
530470810
Datasheet:
Description:

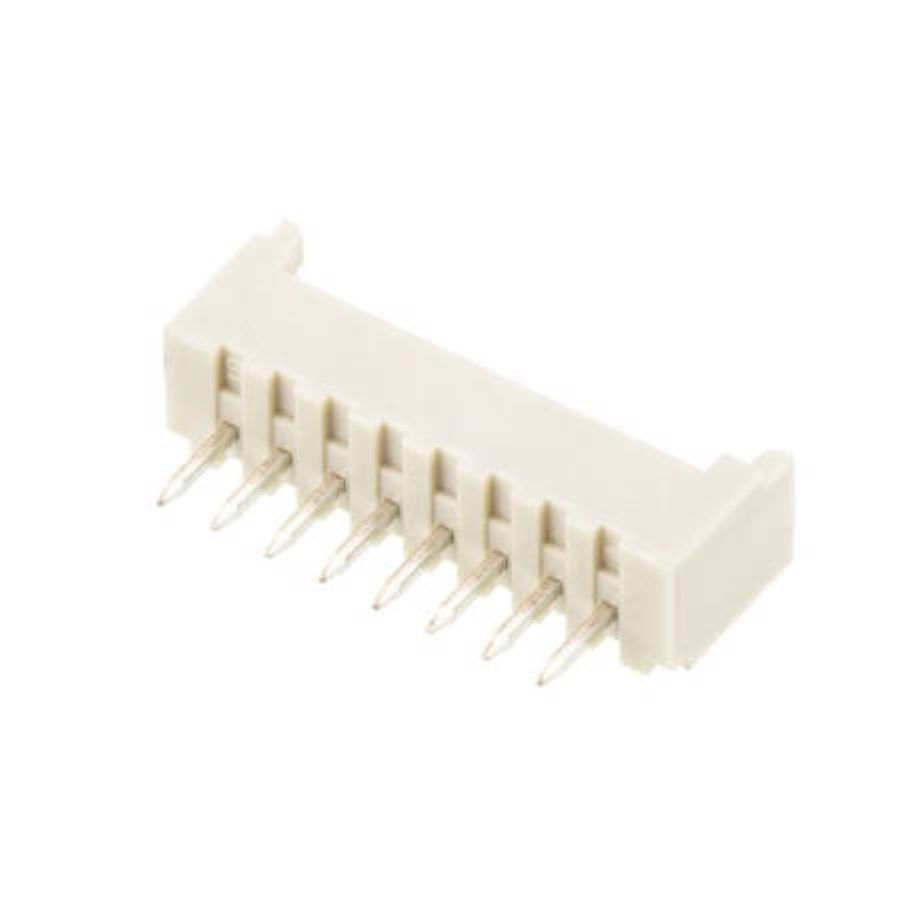

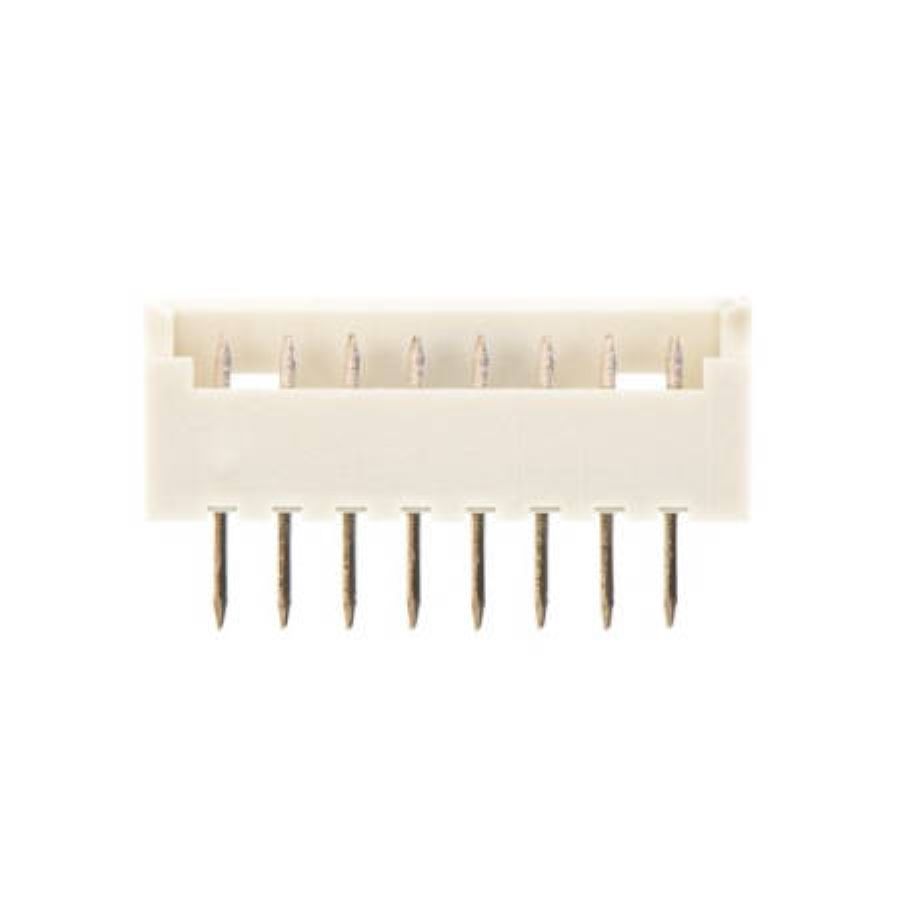

Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Height | 4.4 mm |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | MX |
| Termination Post Length | 2.3 mm |
Stock: 3467
Distributors
pcbx
pcbxUnit Price$0.27216
Ext.Price$0.27216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27216 | $0.27216 |
| 10 | $0.24684 | $2.46840 |
| 50 | $0.22387 | $11.19350 |
| 100 | $0.20789 | $20.78900 |
| 500 | $0.19305 | $96.52500 |
| 1000 | $0.17926 | $179.26000 |
| 3000 | $0.17056 | $511.68000 |
| 5000 | $0.16229 | $811.45000 |
