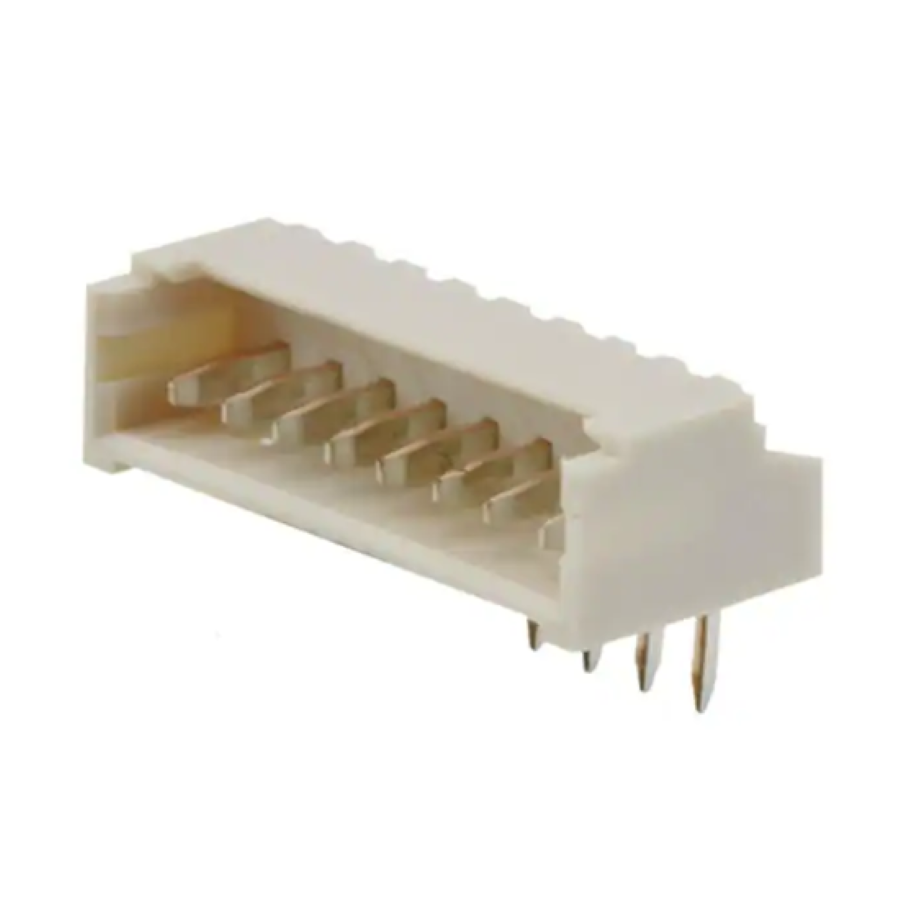

530480610
Manufacturer:
Molex
Mfr.Part #:
530480610
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 6 |
| Height | 6.99 mm |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 13.59 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | JP |
| Termination Post Length | 2.3 mm |
Stock: 4694
Distributors
pcbx
pcbxUnit Price$0.26880
Ext.Price$0.26880
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26880 | $0.26880 |
| 10 | $0.24441 | $2.44410 |
| 50 | $0.22224 | $11.11200 |
| 100 | $0.19960 | $19.96000 |
| 500 | $0.17926 | $89.63000 |
| 1000 | $0.17097 | $170.97000 |
| 3000 | $0.16307 | $489.21000 |
