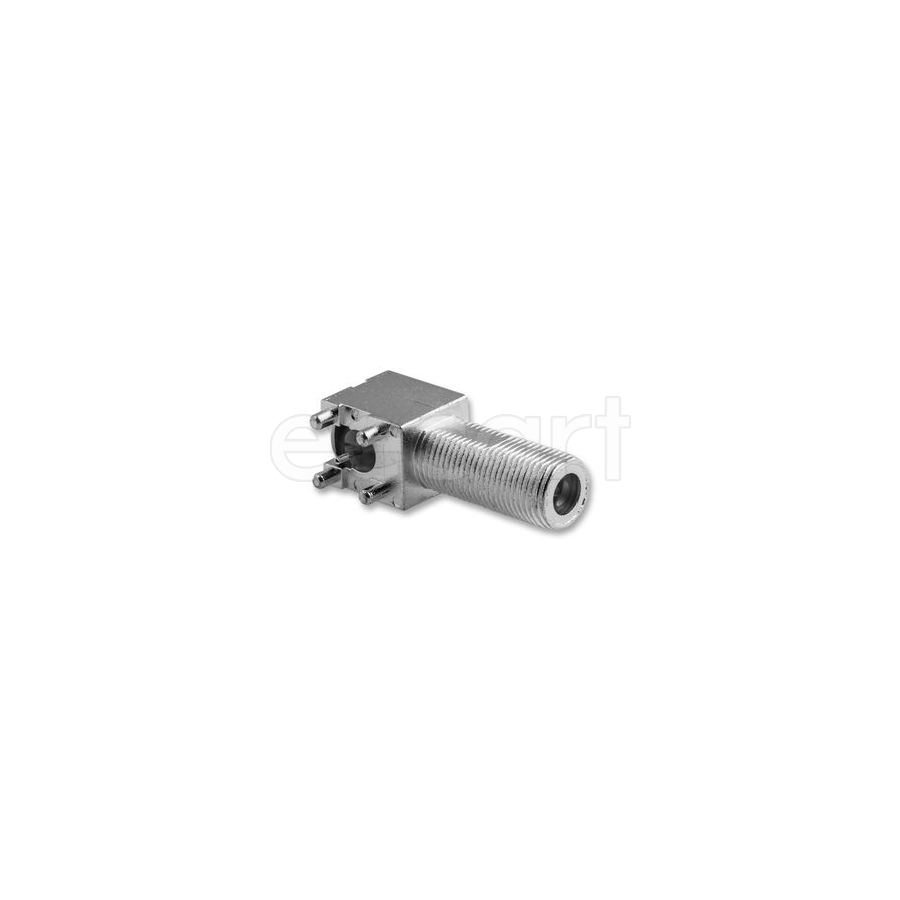

531-40047-4
Manufacturer:
Amphenol
Mfr.Part #:
531-40047-4
Datasheet:
Description:
RF / Coaxial Connectors Through Hole F Type Coaxial, Socket 75 Ω
| Parameter | Value |
|---|---|
| Length | 34.54 mm |
| Termination | Solder |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -65 °C |
| Height | 12.37 mm |
| Packaging | Bulk |
| Voltage Rating | |
| Depth | 11.09 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Dielectric Material | PTFE |
| Contact Plating | Tin |
| Impedance | 75 Ω |
| Contact Material(Contact Finish) | Copper, Tin |
| Frequency | 3 GHz |
| Orientation | Right Angle |
| Gender | Female |
| Number of Contacts | 1 |
| Body Material | Zinc |
| Connector Type | Coaxial, Socket |
| Max Frequency | 3 GHz |
| Connector Style | F Type |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Plating | Tin |
| Body Plating | Tin |
| RF Series | F Type |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 198
Distributors
pcbx
pcbxUnit Price$5.29981
Ext.Price$5.29981
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.29981 | $5.29981 |
| 10 | $4.50124 | $45.01240 |
| 25 | $4.21894 | $105.47350 |
| 50 | $4.01746 | $200.87300 |
| 100 | $3.82568 | $382.56800 |
| 300 | $3.54045 | $1062.13500 |
| 500 | $3.41522 | $1707.61000 |
| 1000 | $3.25223 | $3252.23000 |
