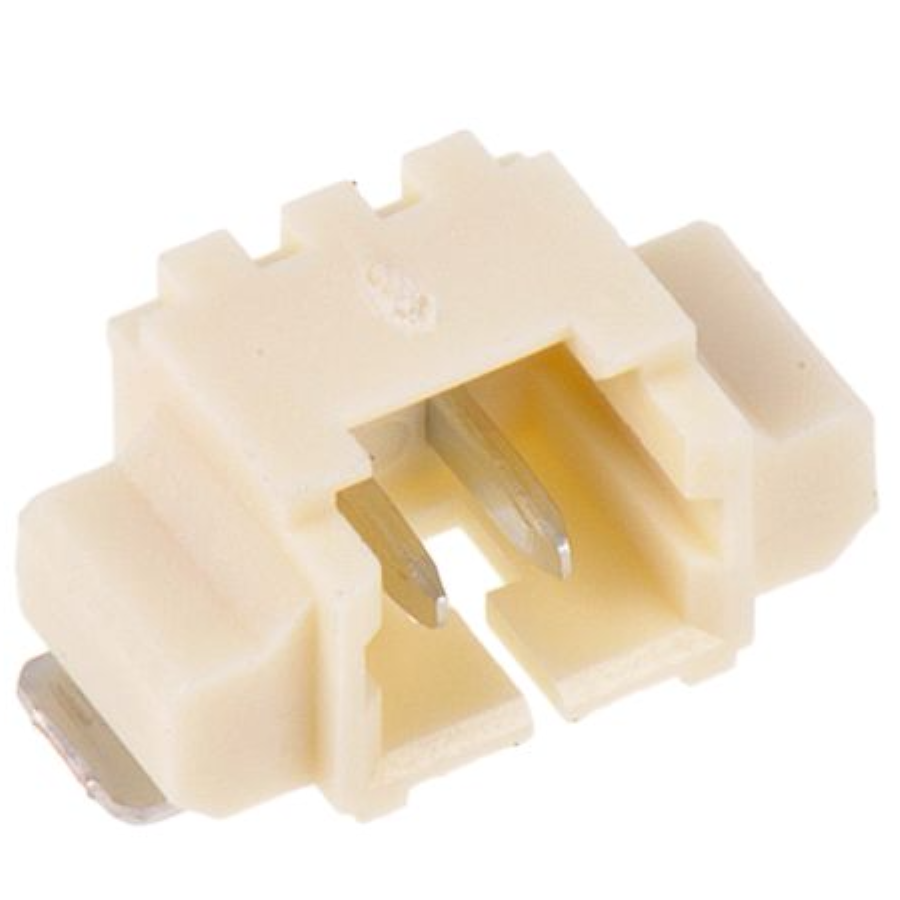

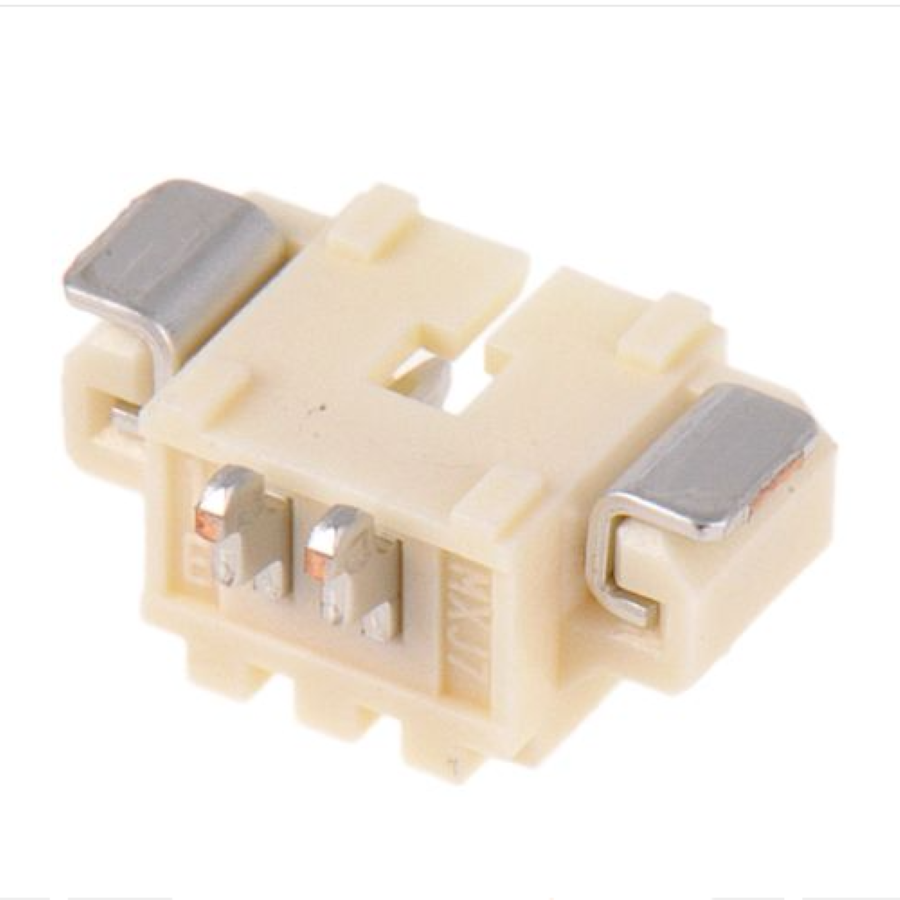

53261-0271
Manufacturer:
Molex
Mfr.Part #:
53261-0271
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:2 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 7.65 mm |
| Width | 4.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 2 |
| Height | 3.4 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 1.25 mm |
| Current Rating | 5.5 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Beige |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
Stock: 46319
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.27016 | $2.70160 |
| 25 | $0.25819 | $6.45475 |
| 50 | $0.24593 | $12.29650 |
| 100 | $0.23425 | $23.42500 |
| 300 | $0.21673 | $65.01900 |
| 500 | $0.20052 | $100.26000 |
| 1000 | $0.18552 | $185.52000 |
| 3000 | $0.17301 | $519.03000 |
| 5000 | $0.16135 | $806.75000 |
| 10000 | $0.15047 | $1504.70000 |
