53261-0571
Manufacturer:
Molex
Mfr.Part #:
53261-0571
Datasheet:
Description:

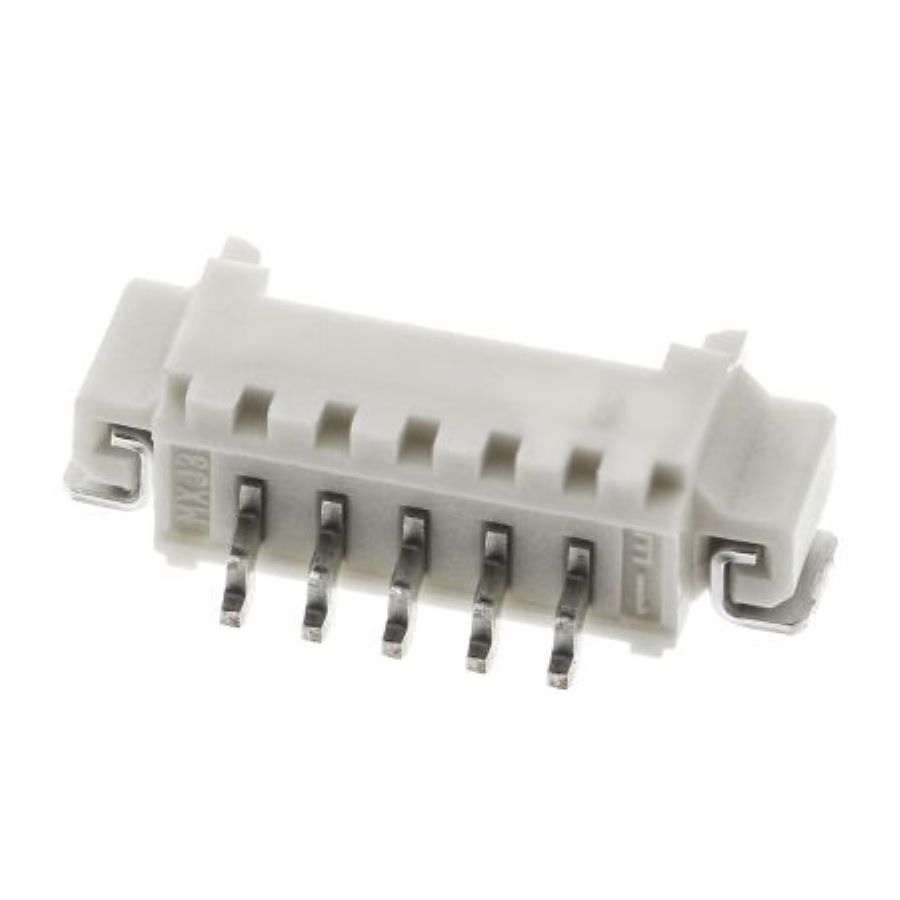

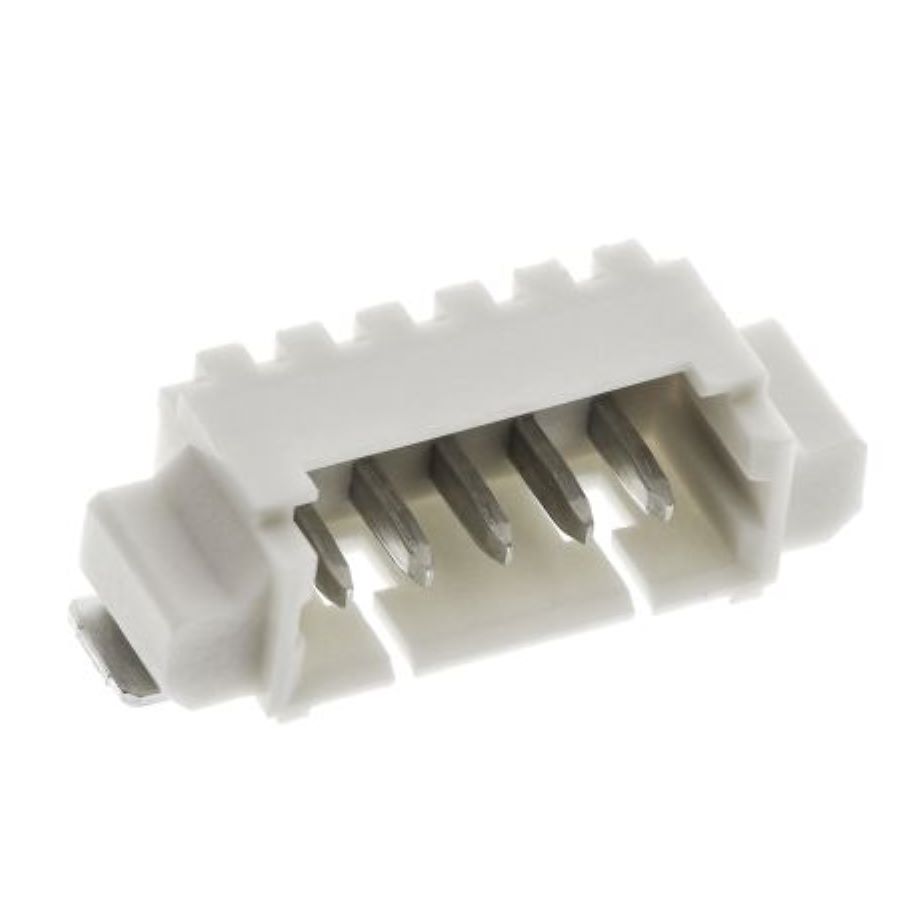

Headers and Wire Housings SMD/SMT Header Number of Positions:5 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 11.4 mm |
| Width | 4.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 5 |
| Height | 3.4 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 5 |
| Ambient Temperature Range High | 105 °C |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
Stock: 43208
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.37531 | $3.75310 |
| 25 | $0.35137 | $8.78425 |
| 50 | $0.33518 | $16.75900 |
| 100 | $0.31974 | $31.97400 |
| 300 | $0.30620 | $91.86000 |
| 500 | $0.29324 | $146.62000 |
| 1000 | $0.25306 | $253.06000 |
| 3000 | $0.24524 | $735.72000 |
| 5000 | $0.23767 | $1188.35000 |
