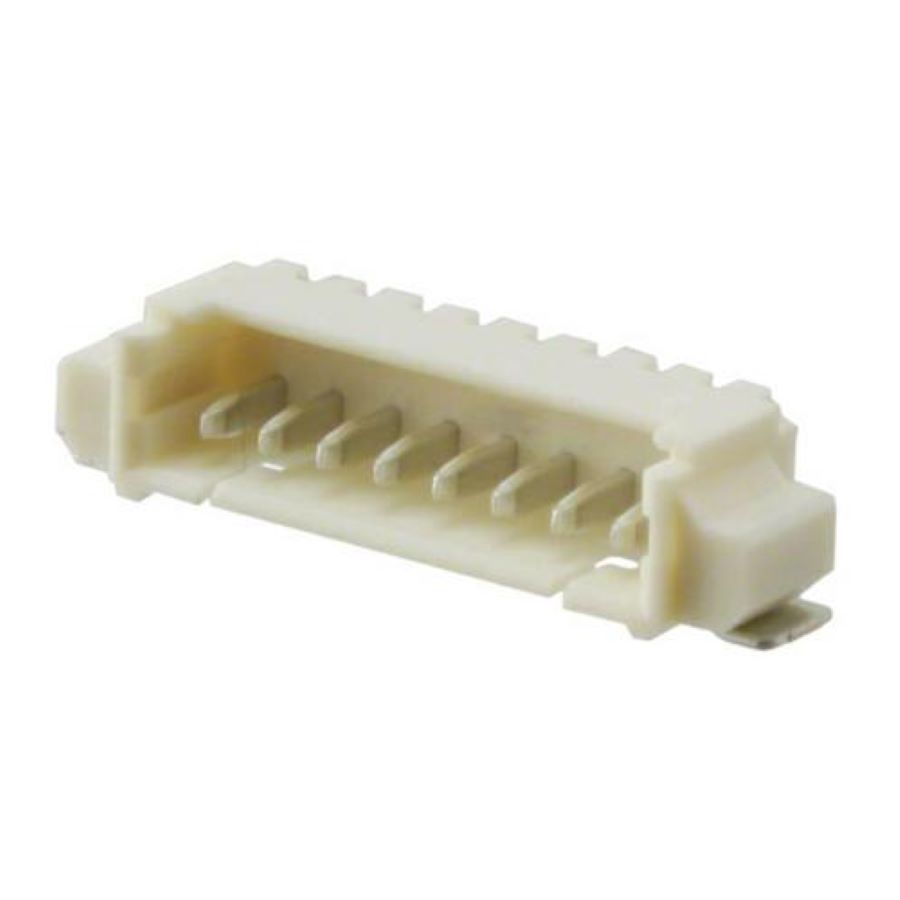

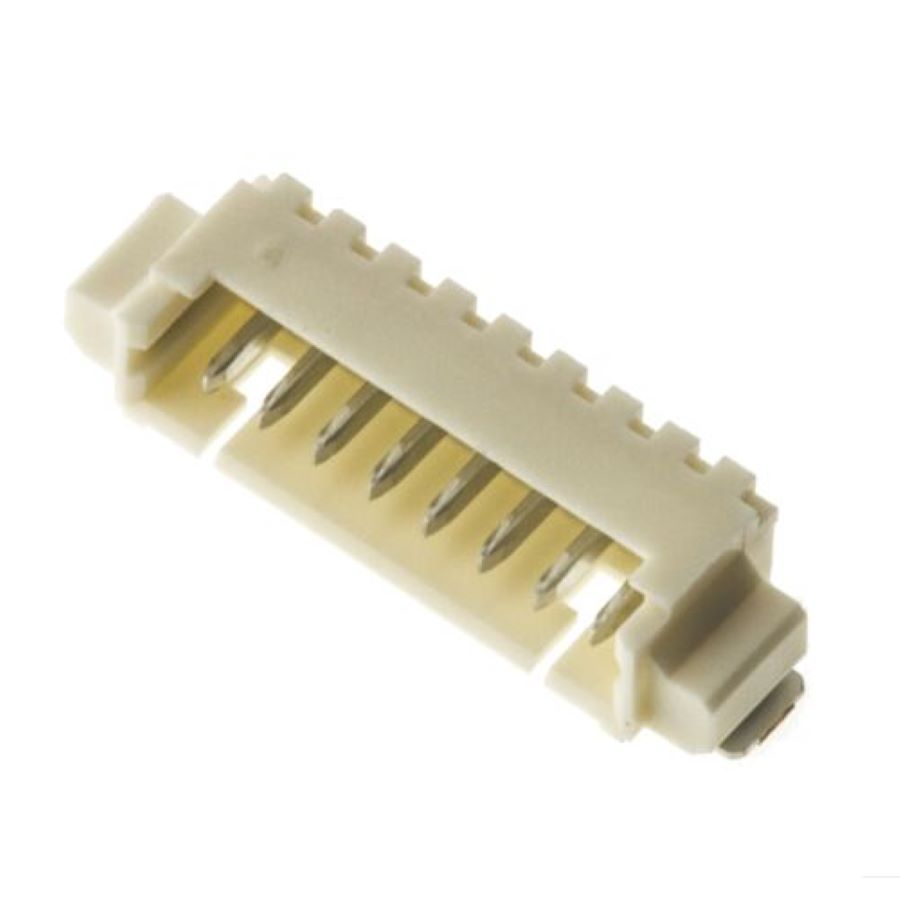

53261-0871
Manufacturer:
Molex
Mfr.Part #:
53261-0871
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:8 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Height | 3.6 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Beige |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Ambient Temperature Range High | 105 °C |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
Stock: 22729
Distributors
pcbx
pcbxUnit Price$0.53177
Ext.Price$0.53177
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53177 | $0.53177 |
| 10 | $0.45995 | $4.59950 |
| 25 | $0.44627 | $11.15675 |
| 50 | $0.44200 | $22.10000 |
| 100 | $0.40182 | $40.18200 |
| 300 | $0.38300 | $114.90000 |
| 500 | $0.36506 | $182.53000 |
| 1000 | $0.31633 | $316.33000 |
