53261-1071
Manufacturer:
Molex
Mfr.Part #:
53261-1071
Datasheet:
Description:

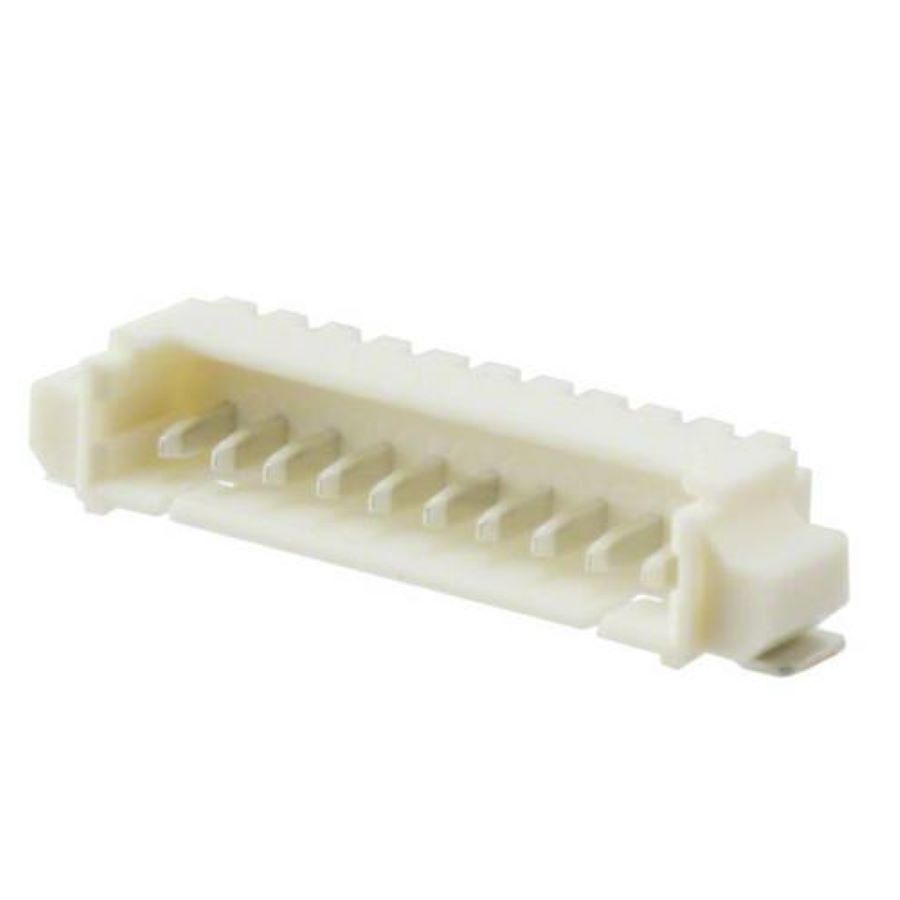

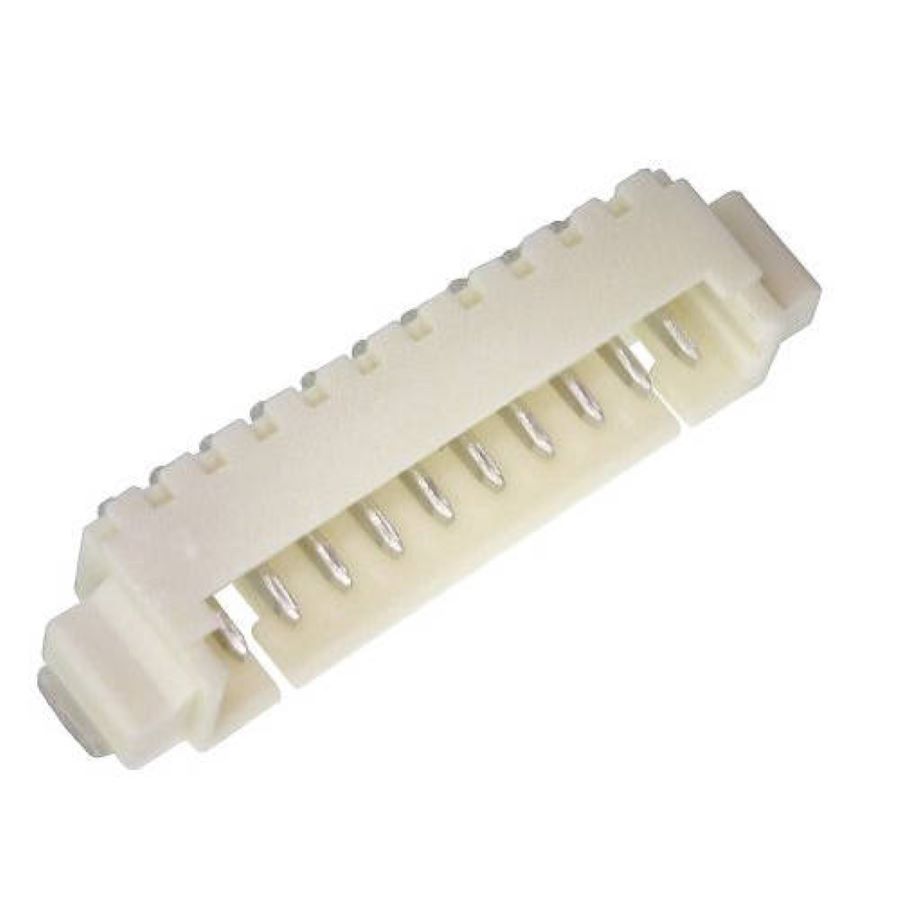

Headers and Wire Housings SMD/SMT Header Number of Positions:10 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 17.6 mm |
| Width | 4.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 10 |
| Height | 3.4 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 10 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | SG |
Stock: 7287
Distributors
pcbx
pcbxUnit Price$0.65060
Ext.Price$0.65060
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.65060 | $0.65060 |
| 10 | $0.55057 | $5.50570 |
| 25 | $0.54972 | $13.74300 |
| 50 | $0.50749 | $25.37450 |
| 100 | $0.46850 | $46.85000 |
| 300 | $0.44120 | $132.36000 |
| 500 | $0.41550 | $207.75000 |
| 1000 | $0.36506 | $365.06000 |
