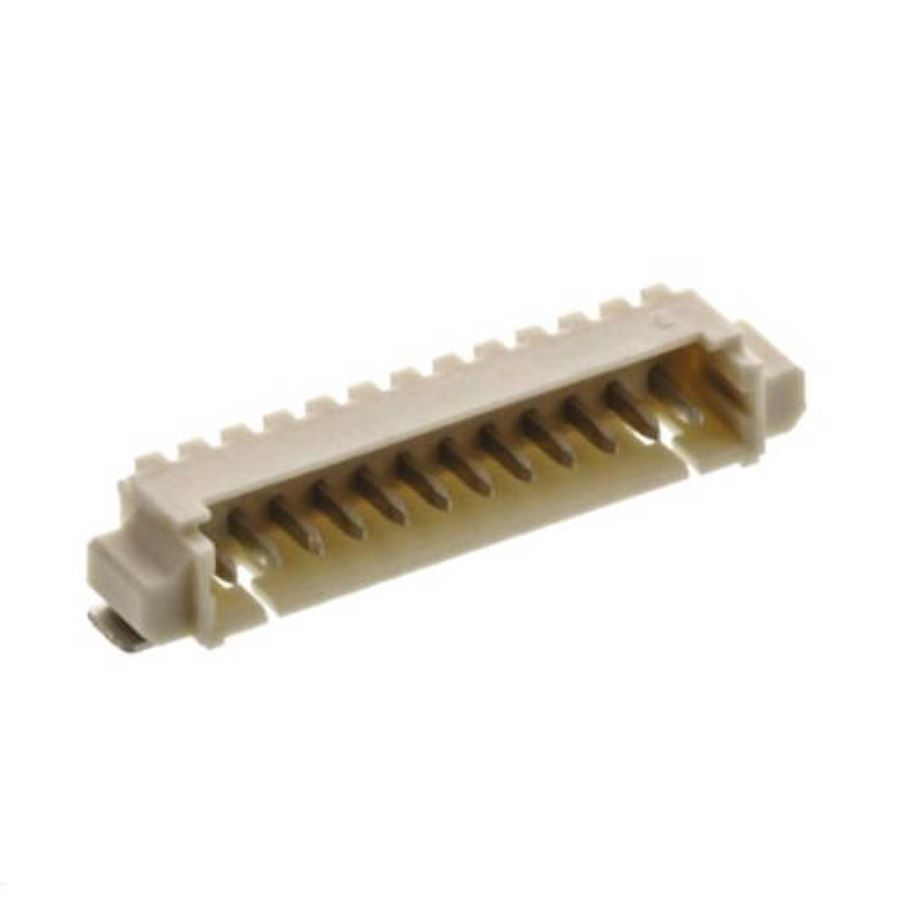

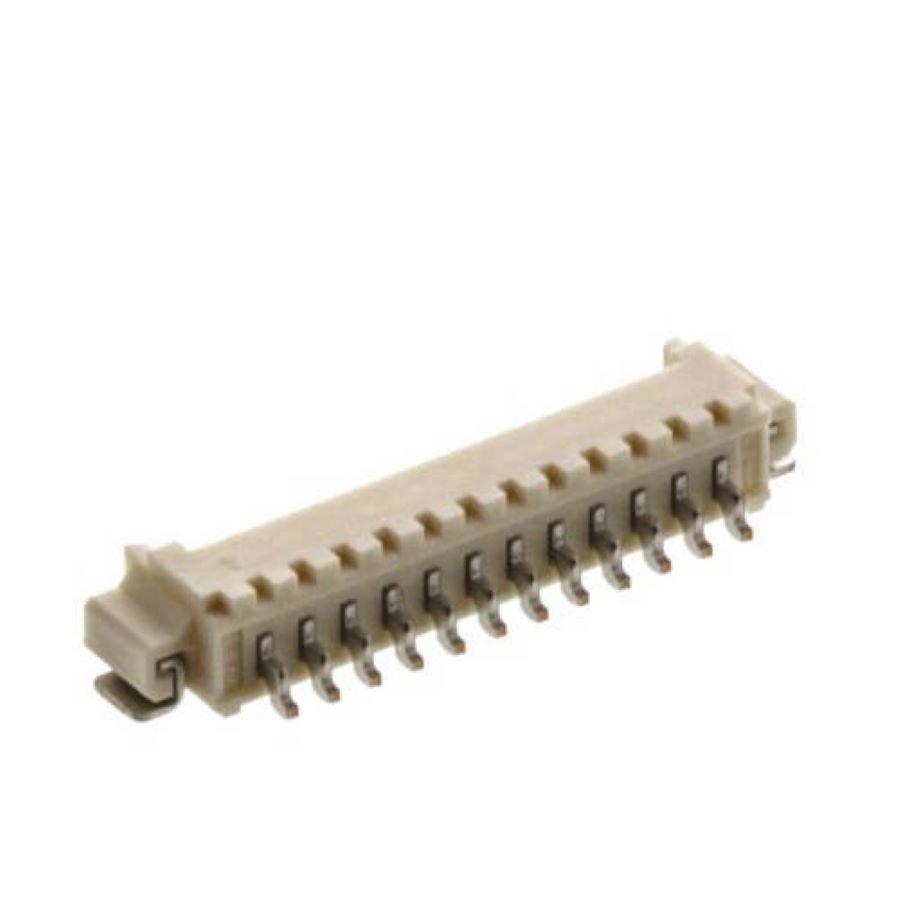

53261-1271
Manufacturer:
Molex
Mfr.Part #:
53261-1271
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:12 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 12 |
| Height | 3.6 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Number of Circuits | 12 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Beige |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Body Plating | Tin |
| Mating Post Length | 3.4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MY |
Stock: 10885
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.62324 | $6.23240 |
| 25 | $0.59049 | $14.76225 |
| 50 | $0.55946 | $27.97300 |
| 100 | $0.53006 | $53.00600 |
| 300 | $0.50059 | $150.17700 |
| 500 | $0.47277 | $236.38500 |
| 1000 | $0.36163 | $361.63000 |
| 3000 | $0.35646 | $1069.38000 |
| 5000 | $0.35137 | $1756.85000 |
