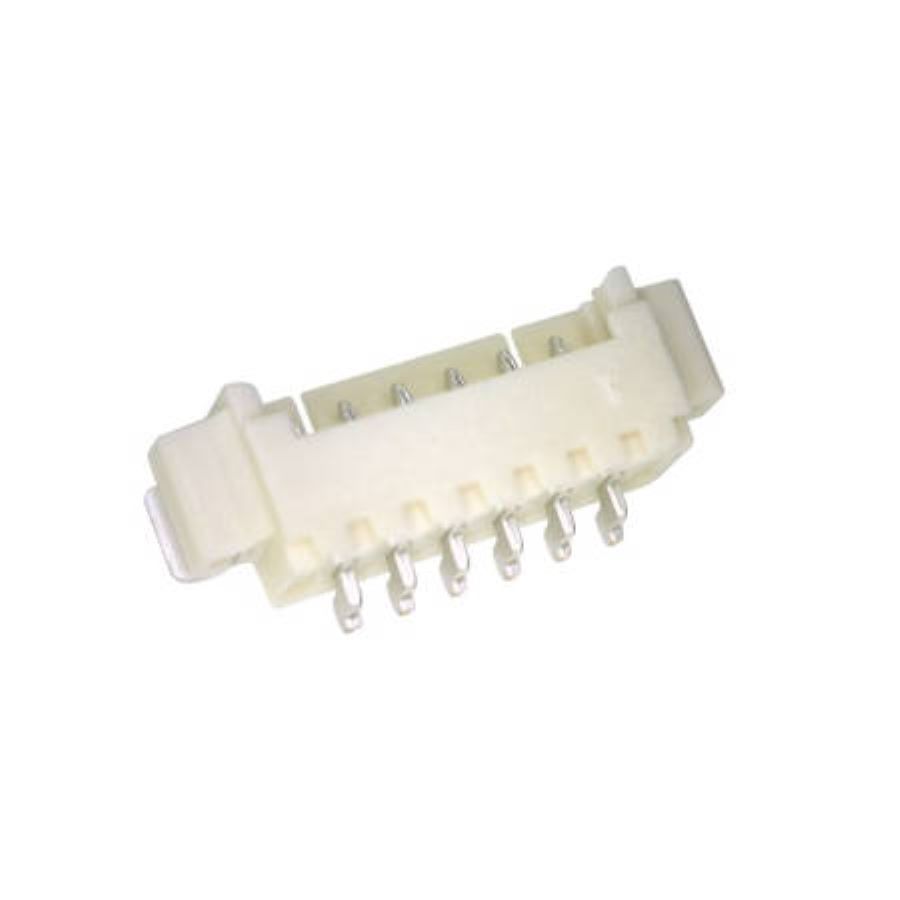

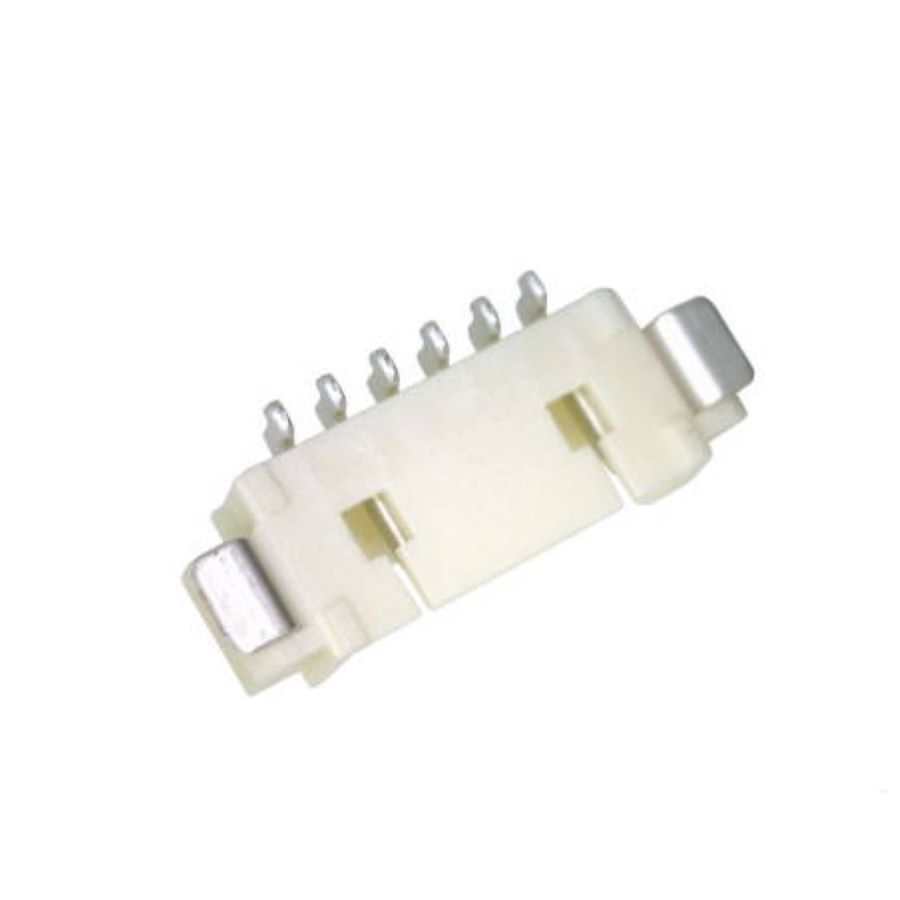

532610671
Manufacturer:
Molex
Mfr.Part #:
532610671
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:6 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 6 |
| Height | 3.6 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Beige |
| Gender | Male |
| Number of Contacts | 6 |
| Ambient Temperature Range High | 105 °C |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Body Plating | Tin |
| Contact Gender | Male |
| Mating Post Length | 3.4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
