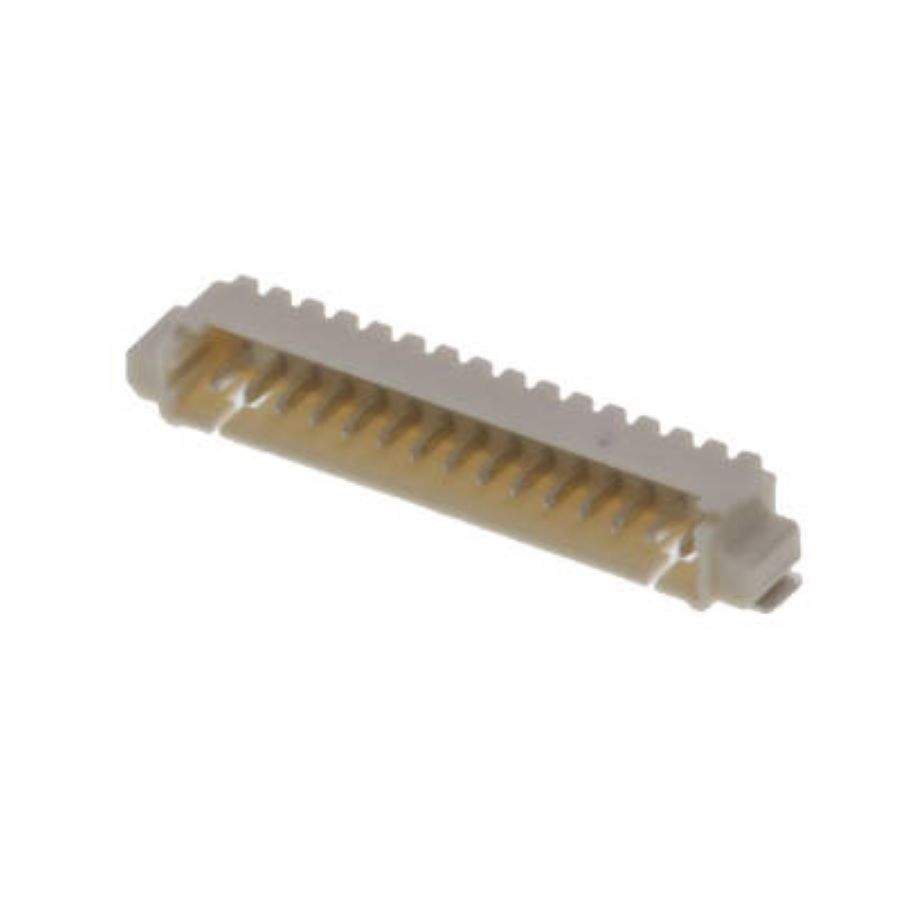

532611571
Manufacturer:
Molex
Mfr.Part #:
532611571
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:15 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 17.78 mm |
| Width | 4.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 15 |
| Height | 3.4 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 8.89 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Max Current Rating | 2.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 15 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 15 |
| Connector Type | Header |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 3.4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | SG |
Stock: 454
Distributors
pcbx
pcbxUnit Price$0.38304
Ext.Price$0.38304
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38304 | $0.38304 |
| 10 | $0.35669 | $3.56690 |
| 25 | $0.33215 | $8.30375 |
| 50 | $0.30931 | $15.46550 |
| 100 | $0.28132 | $28.13200 |
| 300 | $0.25586 | $76.75800 |
| 500 | $0.23270 | $116.35000 |
| 1000 | $0.21915 | $219.15000 |
| 3000 | $0.20639 | $619.17000 |
