533750810
Manufacturer:
Molex
Mfr.Part #:
533750810
Datasheet:
Description:

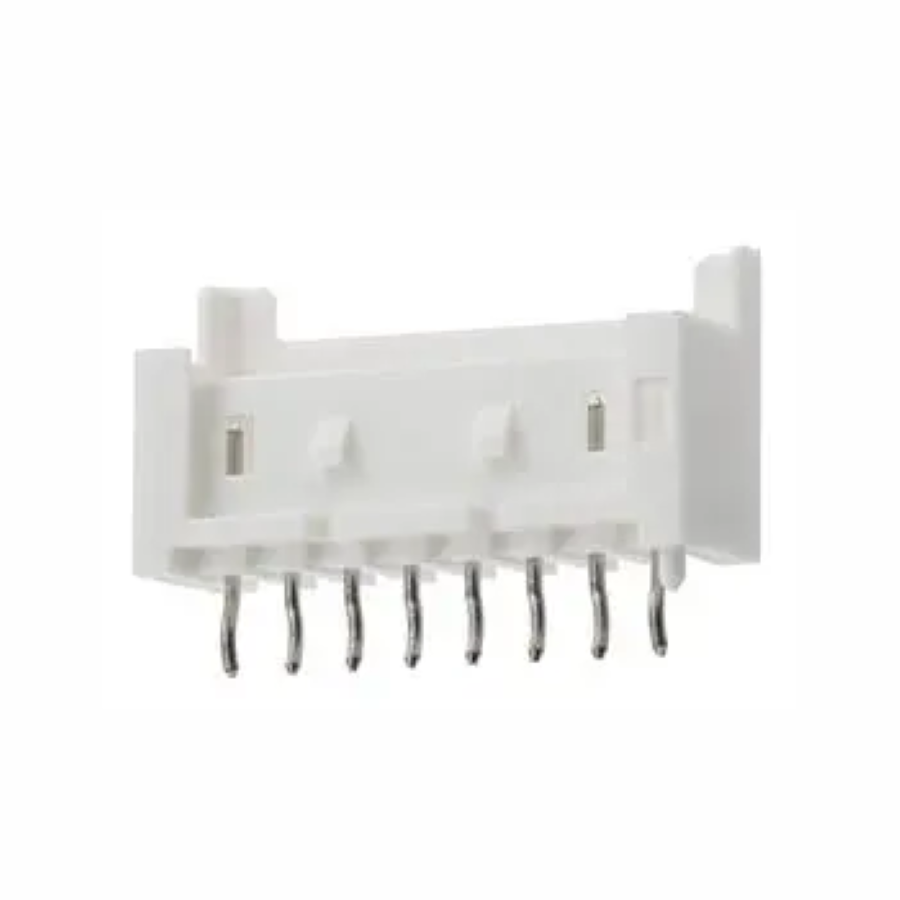

Headers and Wire Housings Through Hole Male Pin Number of Positions:8 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 22.4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 6.8 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Number of Circuits | 7 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| Plating | Tin |
| Contact Mating Length | 3.9878 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | KR |
| Termination Post Length | 3.4 mm |
