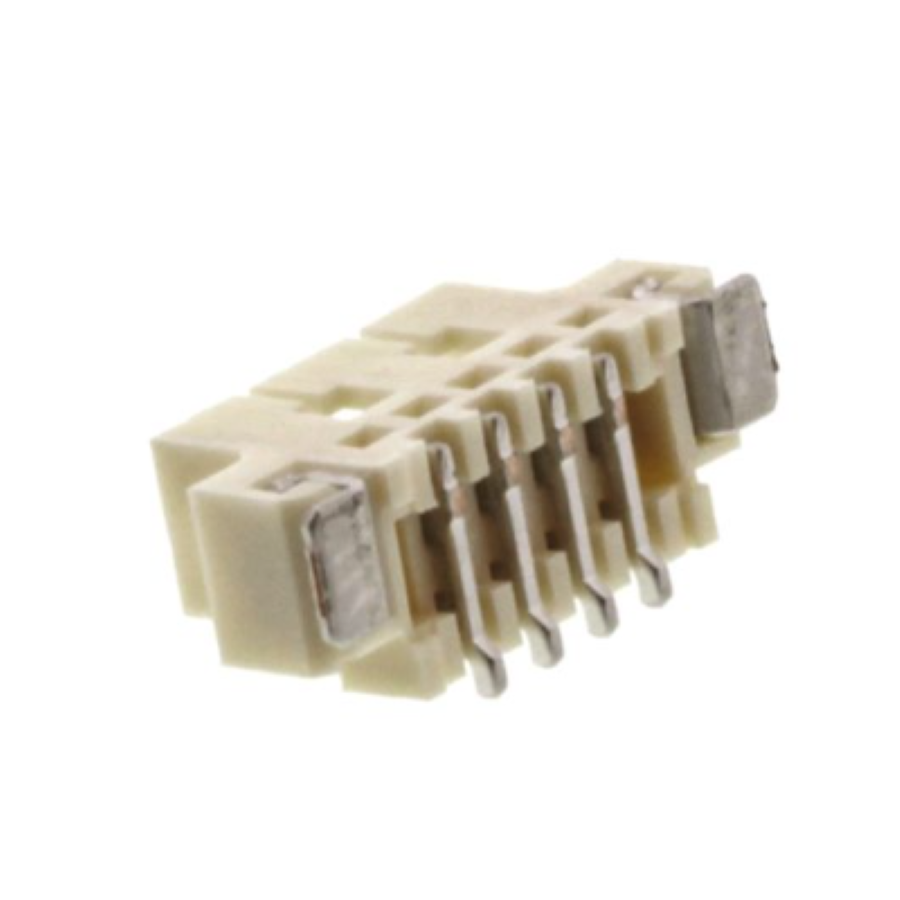

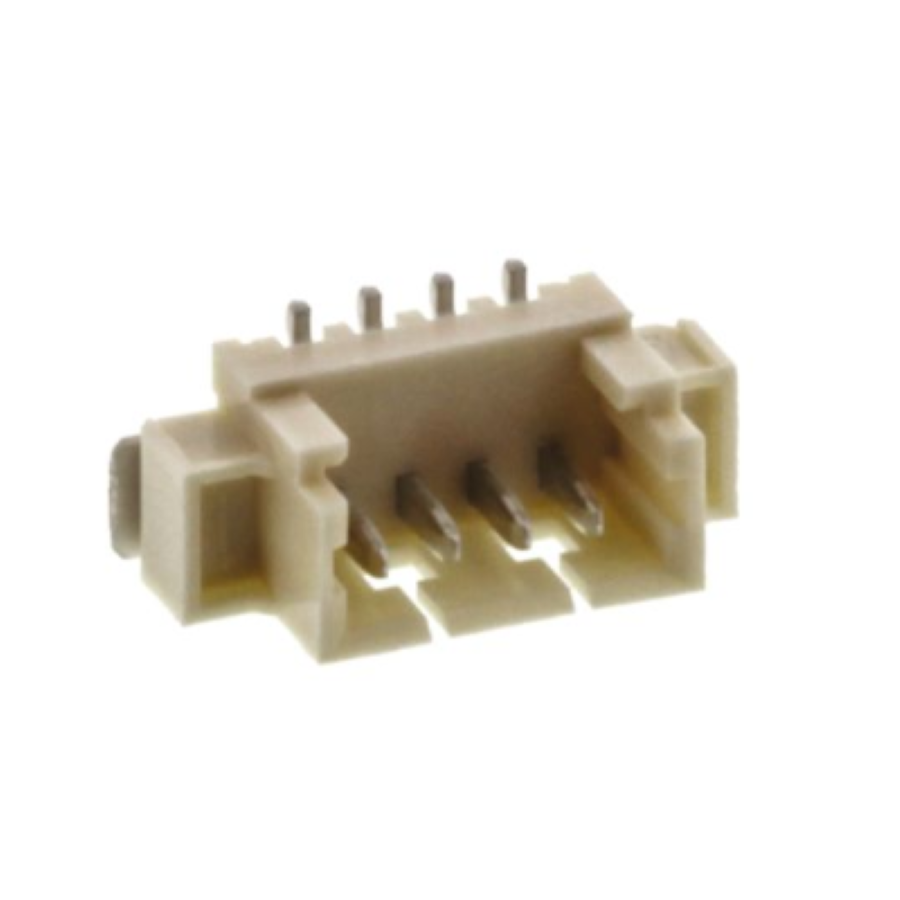

53398-0471
Manufacturer:
Molex
Mfr.Part #:
53398-0471
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:4 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 10.2 mm |
| Width | 3.7 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 4 |
| Height | 4.7 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Ambient Temperature Range High | 105 °C |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Body Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MY |
Stock: 21869
Distributors
pcbx
pcbxUnit Price$0.38216
Ext.Price$0.38216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38216 | $0.38216 |
| 10 | $0.32573 | $3.25730 |
| 25 | $0.32231 | $8.05775 |
| 50 | $0.30383 | $15.19150 |
| 100 | $0.28640 | $28.64000 |
| 300 | $0.28252 | $84.75600 |
| 500 | $0.27870 | $139.35000 |
| 1000 | $0.26333 | $263.33000 |
| 3000 | $0.24881 | $746.43000 |
| 5000 | $0.23510 | $1175.50000 |
