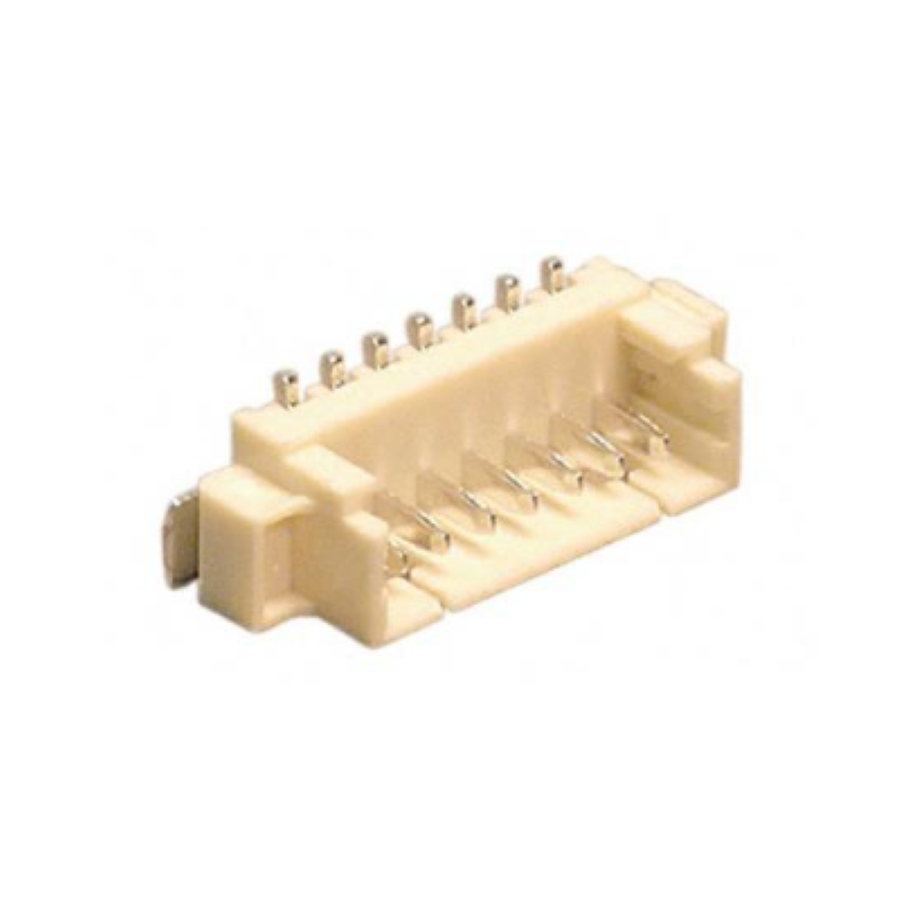

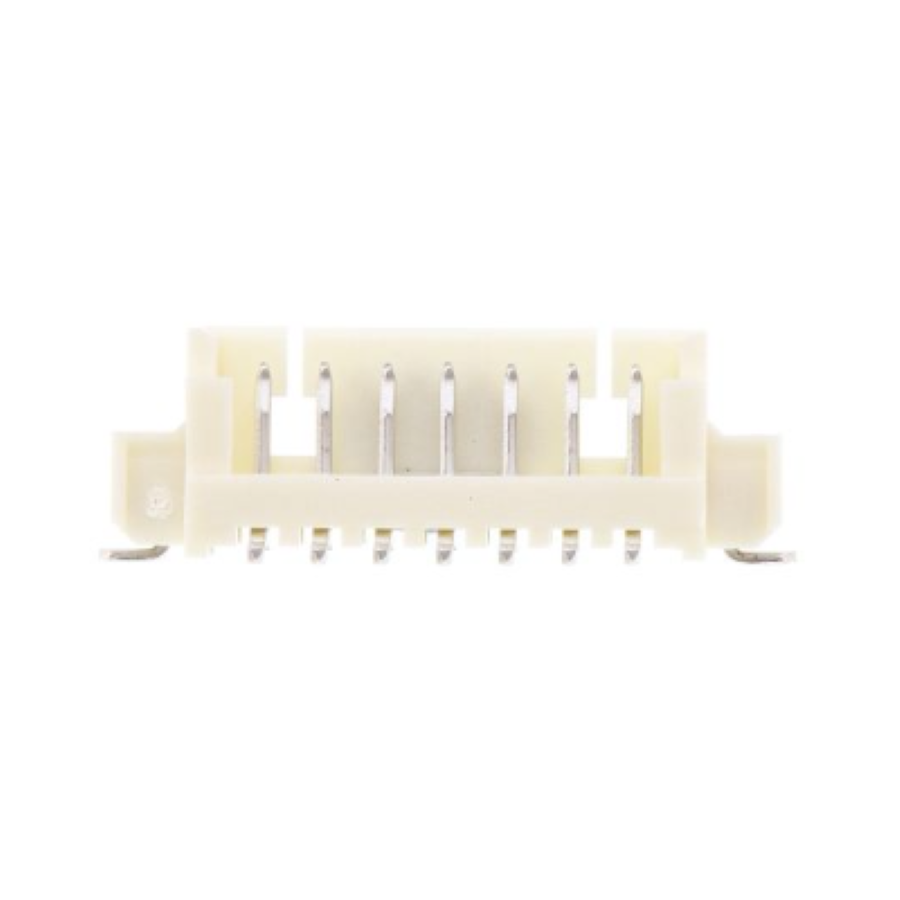

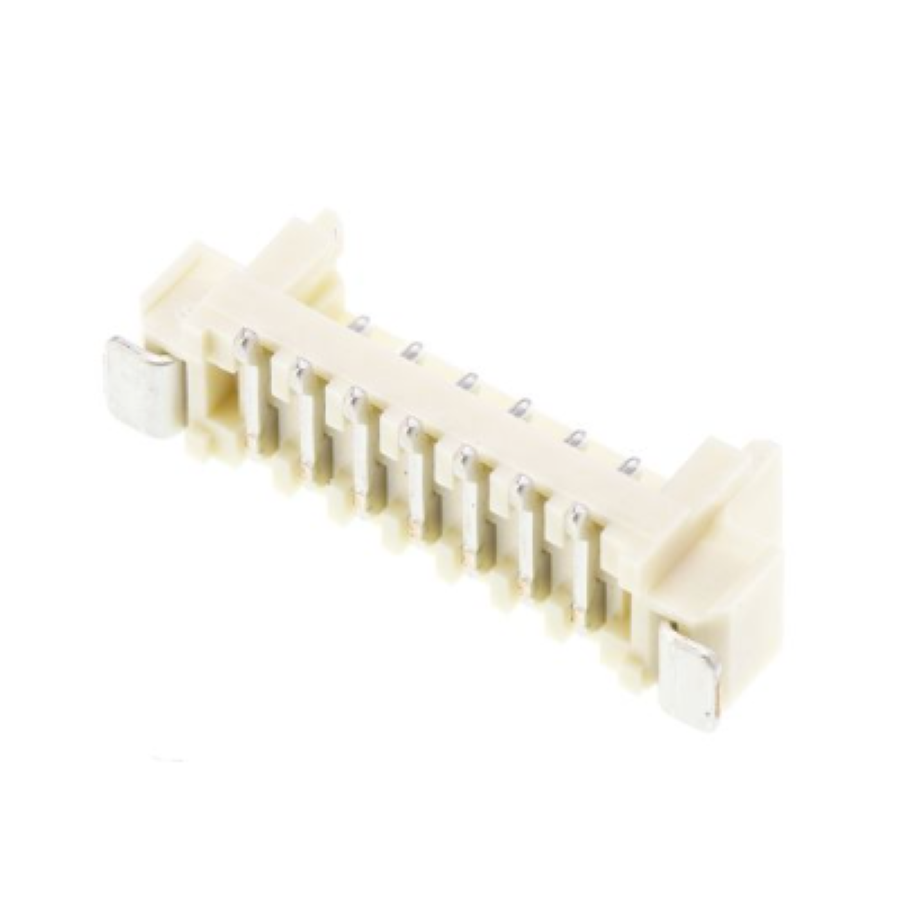

53398-0771
Manufacturer:
Molex
Mfr.Part #:
53398-0771
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:7 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 7 |
| Height | 4.9 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 7 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 7 |
| Ambient Temperature Range High | 105 °C |
| Number of Poles | 7 |
| Connector Type | Header |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Body Plating | Tin |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MY |
| Termination Post Length | 0.6 mm |
Stock: 7690
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.41806 | $4.18060 |
| 25 | $0.40694 | $10.17350 |
| 50 | $0.39611 | $19.80550 |
| 100 | $0.38557 | $38.55700 |
| 300 | $0.35485 | $106.45500 |
| 500 | $0.32658 | $163.29000 |
| 1000 | $0.28469 | $284.69000 |
