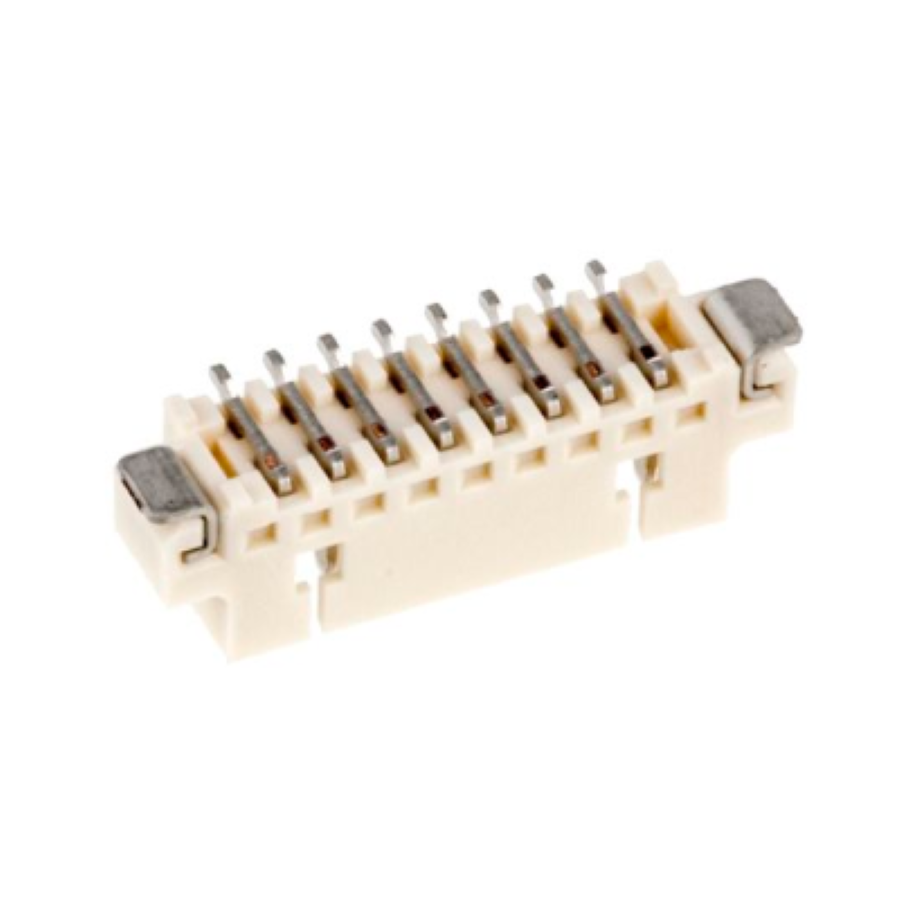

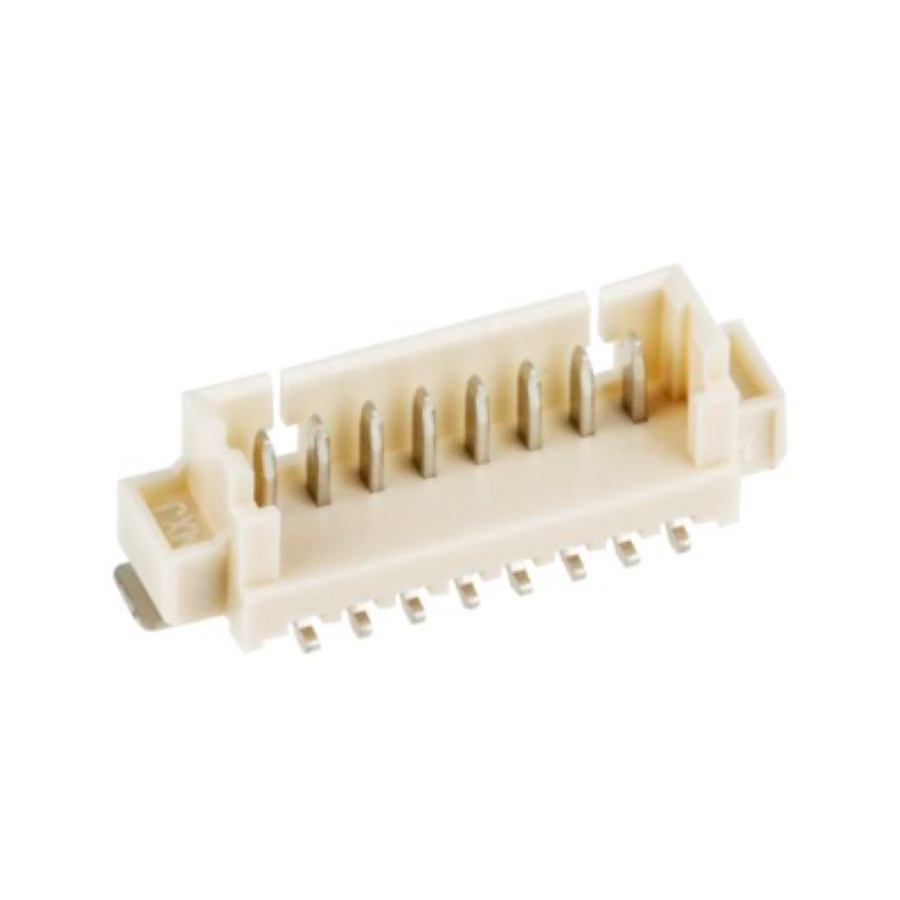

53398-0871
Manufacturer:
Molex
Mfr.Part #:
53398-0871
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:8 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 15.2 mm |
| Width | 3.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Height | 4.7 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 6.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Ambient Temperature Range High | 105 °C |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MY |
| Termination Post Length | 0.6 mm |
Stock: 12500
Distributors
pcbx
pcbxUnit Price$0.58220
Ext.Price$0.58220
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58220 | $0.58220 |
| 10 | $0.51723 | $5.17230 |
| 25 | $0.47876 | $11.96900 |
| 50 | $0.47790 | $23.89500 |
| 100 | $0.42063 | $42.06300 |
| 300 | $0.39506 | $118.51800 |
| 500 | $0.37104 | $185.52000 |
| 1000 | $0.30692 | $306.92000 |
