53398-1071
Manufacturer:
Molex
Mfr.Part #:
53398-1071
Datasheet:
Description:

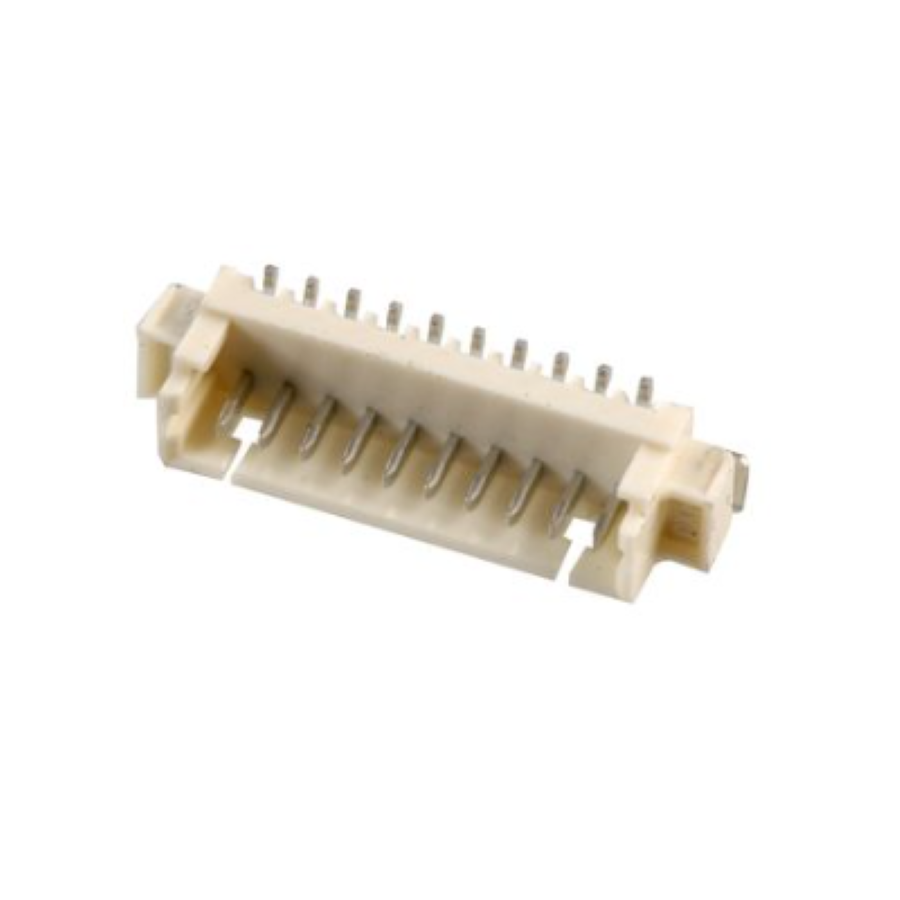

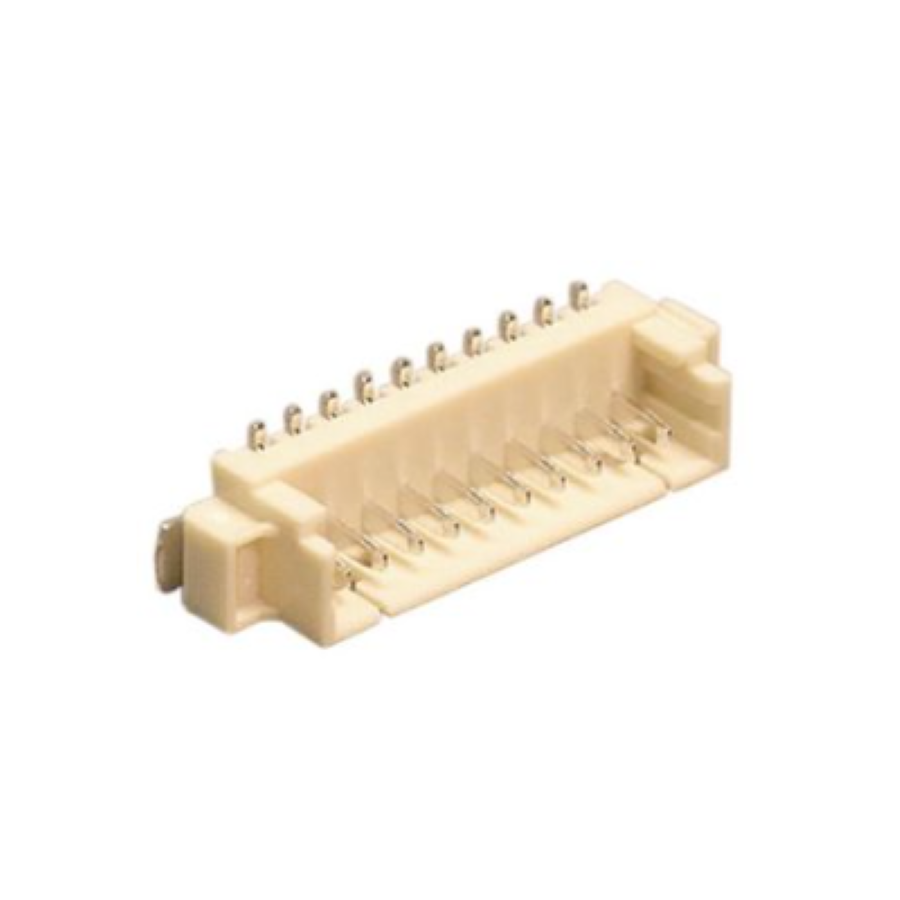

Headers and Wire Housings SMD/SMT Header Number of Positions:10 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 17.6 mm |
| Width | 3.7 mm |
| Termination | SMD/SMT, Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 10 |
| Height | 4.7 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 10 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | MY |
| Termination Post Length | 0.6 mm |
Stock: 4779
Distributors
pcbx
pcbxUnit Price$0.66941
Ext.Price$0.66941
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66941 | $0.66941 |
| 10 | $0.59417 | $5.94170 |
| 25 | $0.56511 | $14.12775 |
| 50 | $0.56340 | $28.17000 |
| 100 | $0.48902 | $48.90200 |
| 300 | $0.45949 | $137.84700 |
| 500 | $0.43174 | $215.87000 |
| 1000 | $0.34710 | $347.10000 |
