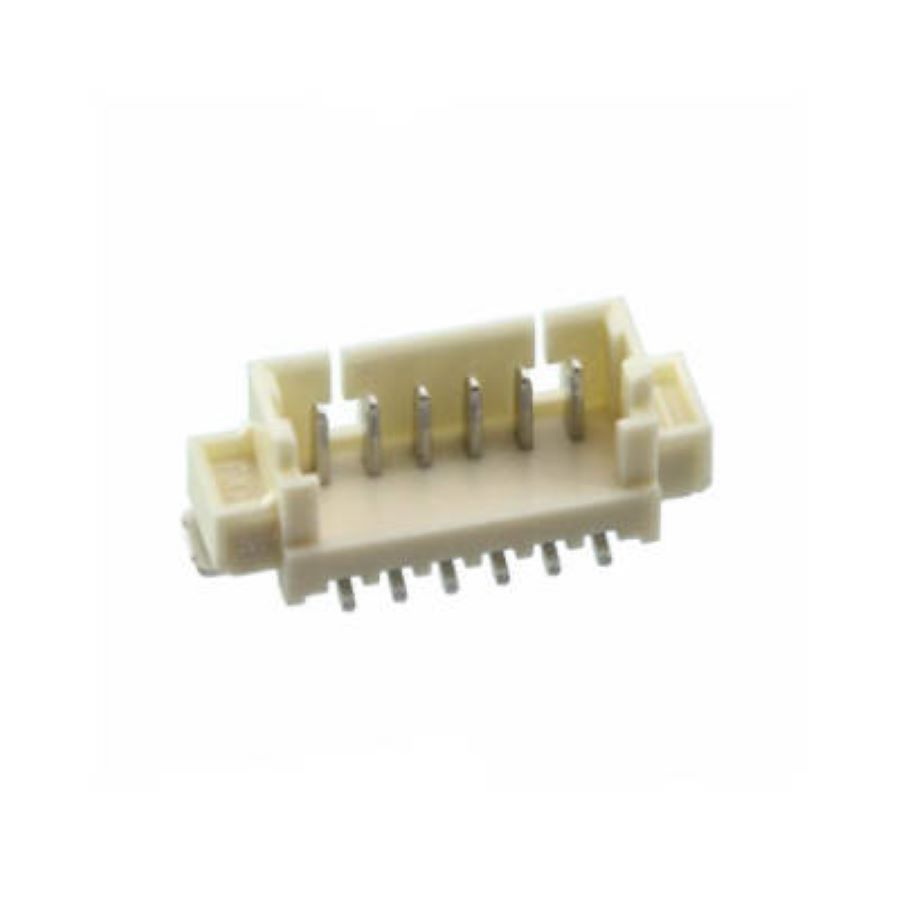

533980671
Manufacturer:
Molex
Mfr.Part #:
533980671
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:6 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 12.6 mm |
| Width | 3.7 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 6 |
| Height | 4.7 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Body Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | 0.6 mm |
Stock: 2883
Distributors
pcbx
pcbxUnit Price$0.20938
Ext.Price$0.20938
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20938 | $0.20938 |
| 10 | $0.19042 | $1.90420 |
| 50 | $0.17318 | $8.65900 |
| 100 | $0.16277 | $16.27700 |
| 500 | $0.15298 | $76.49000 |
| 1000 | $0.14378 | $143.78000 |
| 3000 | $0.13513 | $405.39000 |
| 5000 | $0.12701 | $635.05000 |
