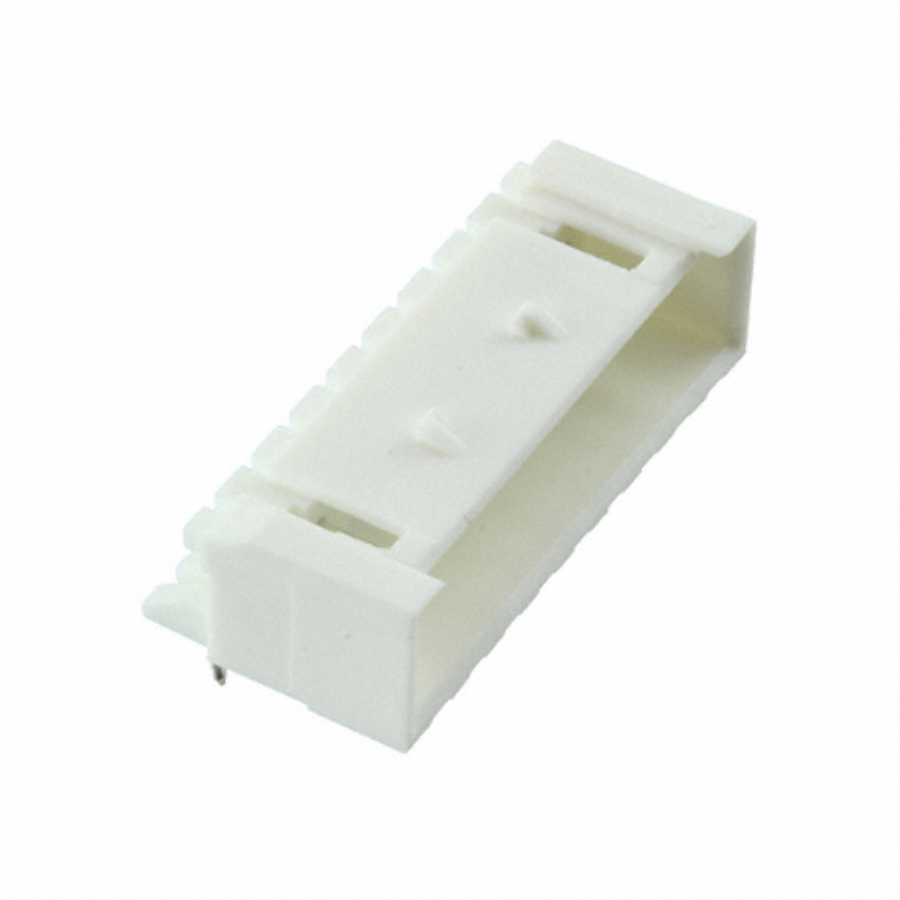

534260210
Manufacturer:
Molex
Mfr.Part #:
534260210
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.5 mm |
| Current Rating | 500 mA |
| Number of Circuits | 2 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | JP |
| Termination Post Length | 3.4 mm |
Stock: 1171
Distributors
pcbx
pcbxUnit Price$0.15763
Ext.Price$0.15763
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15763 | $0.15763 |
| 10 | $0.13961 | $1.39610 |
| 50 | $0.12365 | $6.18250 |
| 100 | $0.11338 | $11.33800 |
| 500 | $0.10397 | $51.98500 |
| 1000 | $0.09534 | $95.34000 |
| 3000 | $0.08742 | $262.26000 |
| 5000 | $0.08016 | $400.80000 |
