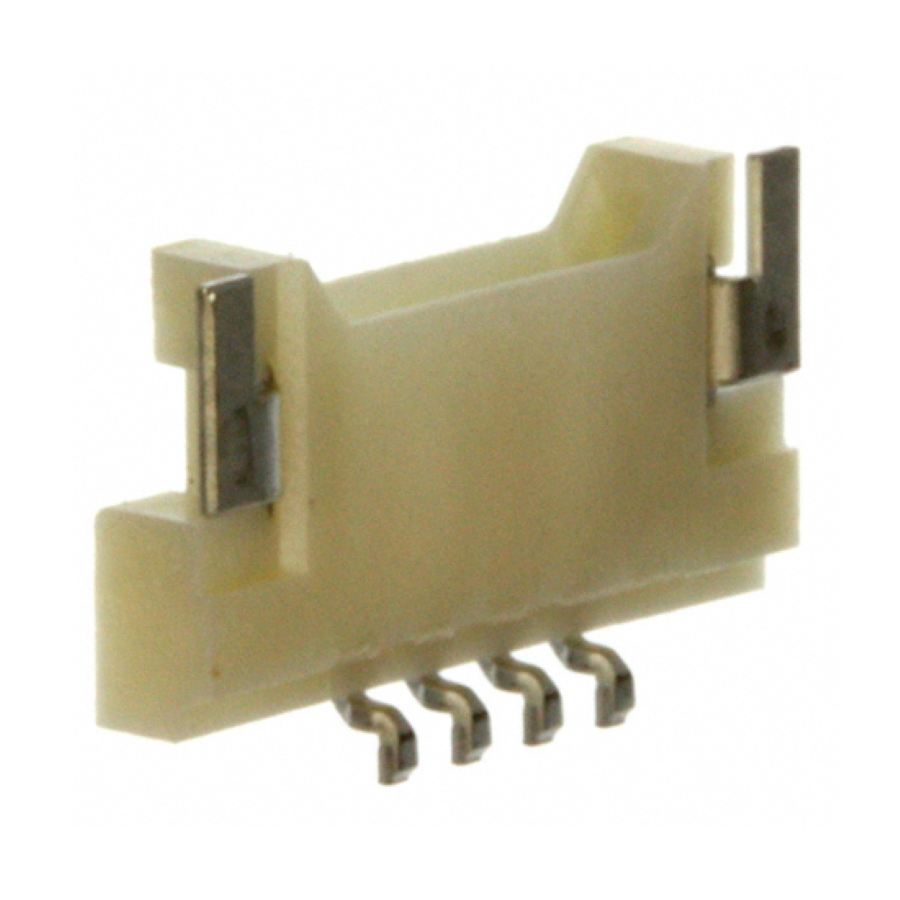

53780-0570
Manufacturer:
Molex
Mfr.Part #:
53780-0570
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:5 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 5 |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 2.6 mm |
| Country of Origin | JP |
