54819-1572
Manufacturer:
Molex
Mfr.Part #:
54819-1572
Datasheet:
Description:

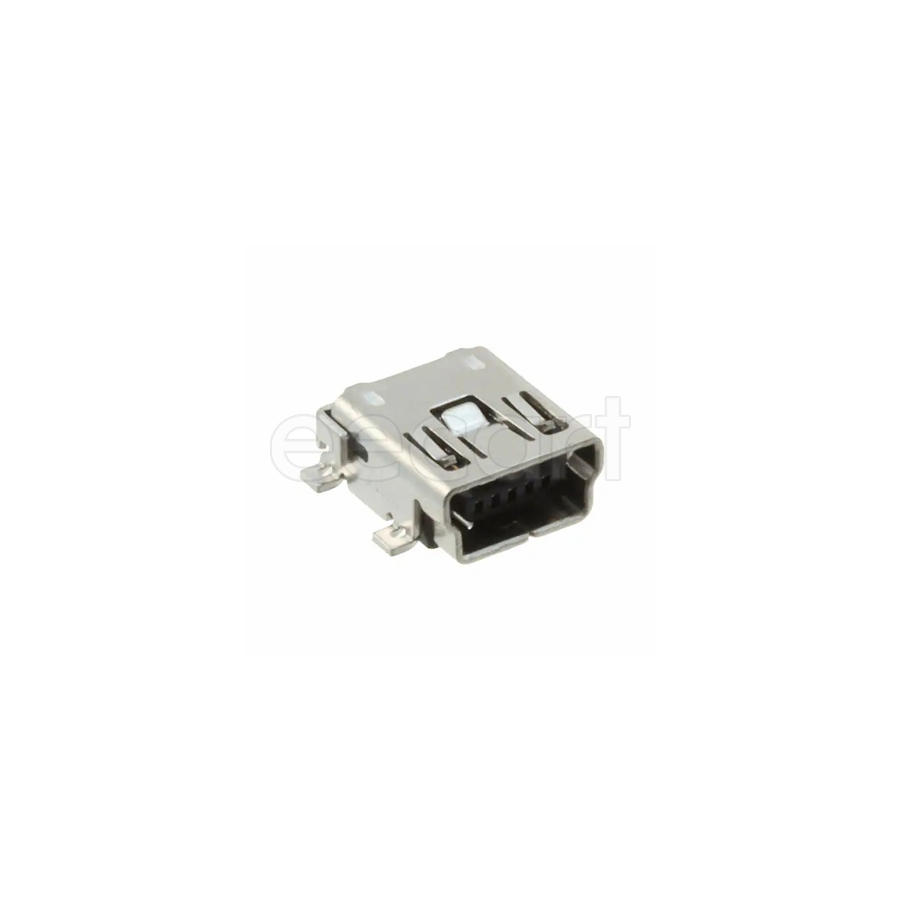

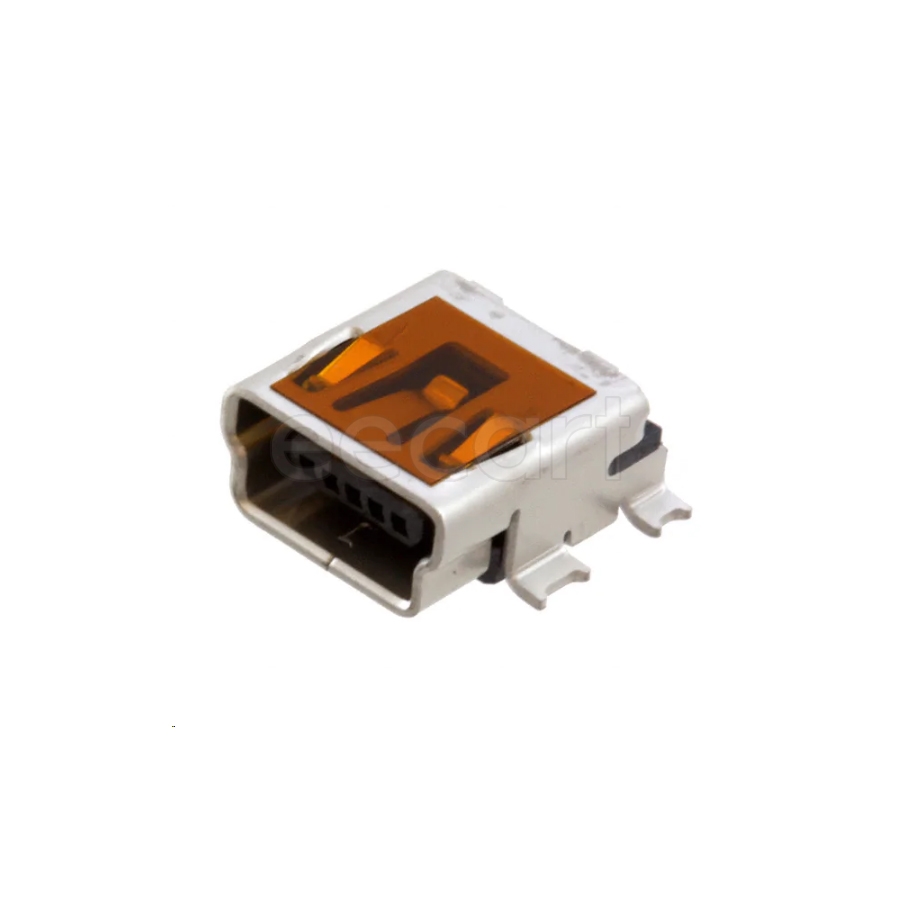

Circular Connectors SMD/SMT Receptacle SMD/SMT Receptacle, USB
| Parameter | Value |
|---|---|
| Length | 9.9 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Features | Board Guide, Solder Retention |
| Contact Material(Contact Finish) | Copper |
| Pitch | 800 µm |
| Number of Terminals | 5 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Housing Material | Polyphthalamide |
| Number of Ports | 1 |
| Plating | Tin |
| Contact Gender | Receptacle |
| Shell Material | Copper Alloy |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
Stock: 2905
Distributors
pcbx
pcbxUnit Price$1.55854
Ext.Price$1.55854
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.55854 | $1.55854 |
| 10 | $1.32685 | $13.26850 |
| 25 | $1.24563 | $31.14075 |
| 50 | $1.18237 | $59.11850 |
| 100 | $1.12680 | $112.68000 |
| 300 | $0.92386 | $277.15800 |
| 500 | $0.75747 | $378.73500 |
