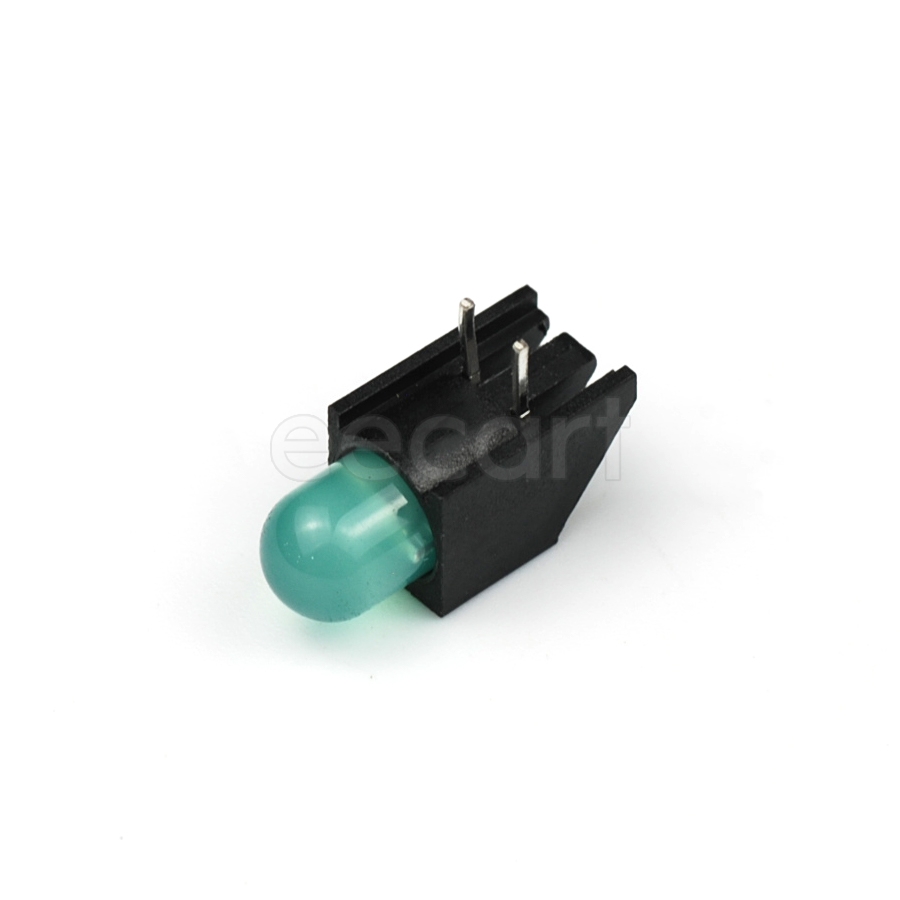

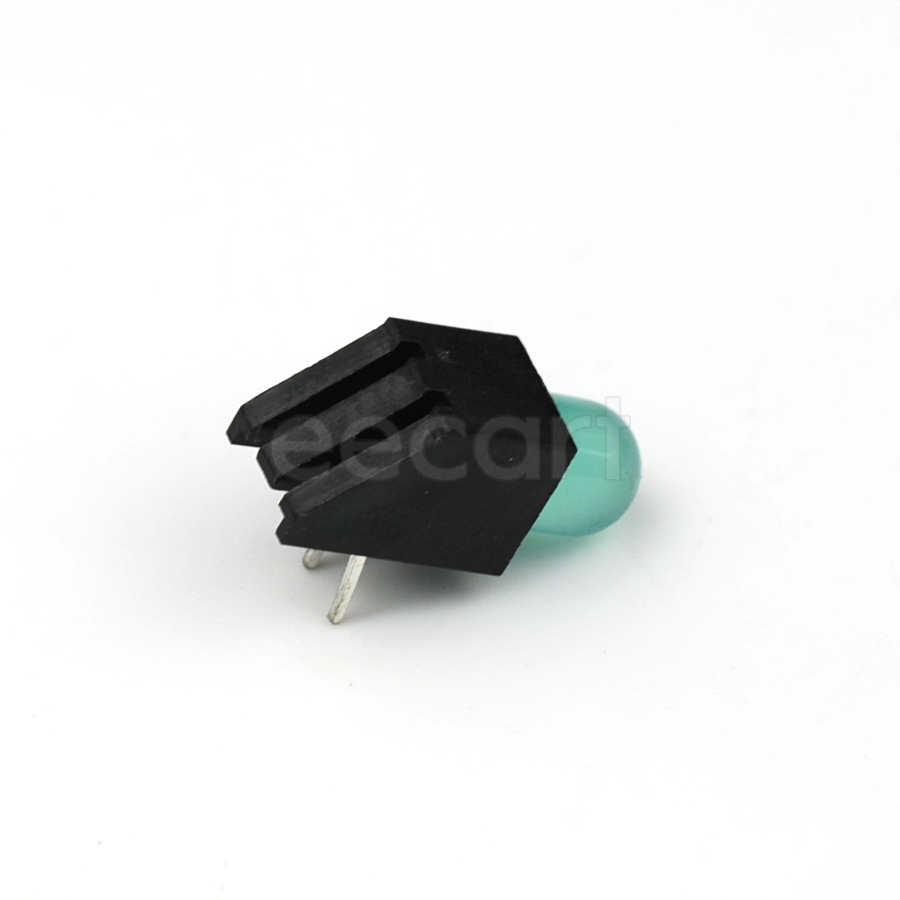

550-1307F
Manufacturer:
Dialight
Mfr.Part #:
550-1307F
Datasheet:
Description:
LEDs 13.83mmL×6.10mmW×6.10mmH Through Hole Green 565 nm 2 mA 1.8 V
| Parameter | Value |
|---|---|
| Length | 6.1 mm |
| Width | 6.1 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 6.1 mm |
| Packaging | Bulk |
| Voltage Rating | 1.8 V |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Current | 2 mA |
| Forward Current | 2 mA |
| Forward Voltage | 1.8 V |
| Operating Supply Voltage | 1.8 V |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Diffused |
| Luminous Intensity | 1.8 mcd |
| Power Dissipation | 24 mW |
| Element Configuration | Single |
| Number of LEDs | 1 |
| Viewing Angle | 50 ° |
| Wavelength | 565 nm |
| Lens Color | Green |
| Dominant Wavelength/CCT (K) | 565 nm |
| Reverse Voltage | 5 V |
| Test Current | 2 mA |
| Schedule B | 8541402000 |
Stock: 427
Distributors
pcbx
pcbxUnit Price$0.99514
Ext.Price$0.99514
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.99514 | $0.99514 |
| 10 | $0.70104 | $7.01040 |
| 25 | $0.63729 | $15.93225 |
| 50 | $0.57933 | $28.96650 |
| 100 | $0.52664 | $52.66400 |
| 300 | $0.48711 | $146.13300 |
| 500 | $0.45055 | $225.27500 |
| 1000 | $0.39583 | $395.83000 |
| 3000 | $0.38411 | $1152.33000 |
| 5000 | $0.37275 | $1863.75000 |
| 10000 | $0.35907 | $3590.70000 |
