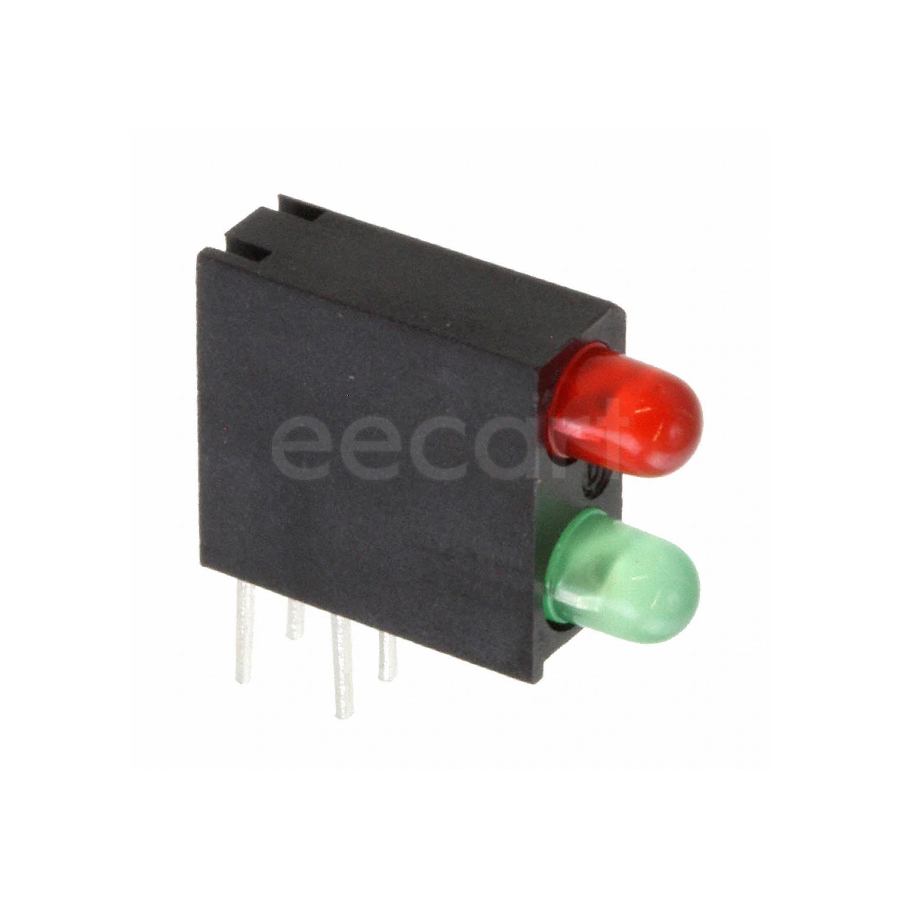

553-0112-200F
Manufacturer:
Dialight
Mfr.Part #:
553-0112-200F
Datasheet:
Description:
LEDs 10.55mmL×4.32mmW×9.65mmH Through Hole Green, Red 635 nm 10 mA 2.1 V
| Parameter | Value |
|---|---|
| Length | 4.32 mm |
| Width | 4.32 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 9.65 mm |
| Packaging | Bulk |
| Voltage Rating | 2 V |
| Depth | 10.54 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 2 |
| Current | 10 mA |
| Forward Current | 10 mA |
| Forward Voltage | 2.1 V |
| Operating Supply Voltage | 2.8 V |
| Color | Green, Red |
| Illumination Color | Green, Red |
| Lens Style | Colored, Diffused, Tinted |
| Luminous Intensity | 10 mcd |
| Power Dissipation | 100 mW |
| Number of LEDs | 2 |
| Viewing Angle | 60 ° |
| Wavelength | 565 nm |
| Dominant Wavelength/CCT (K) | 635 nm |
| Test Current | 10 mA |
| Schedule B | 8541402000 |
