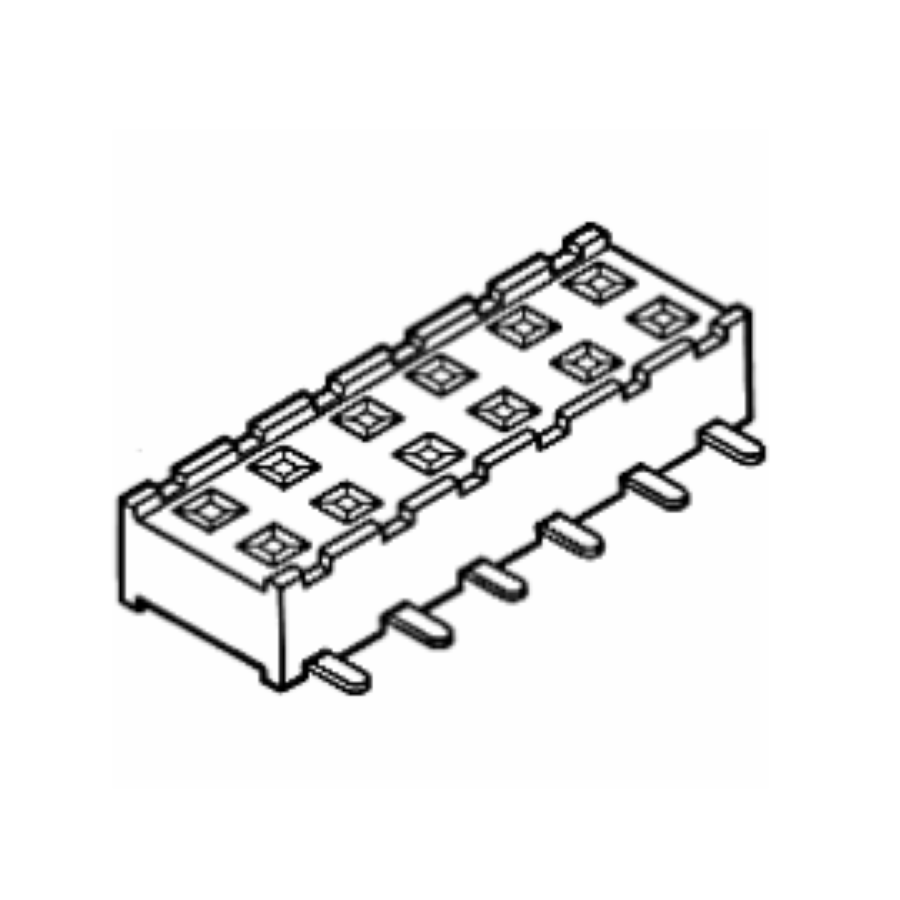

55510-112LF
Manufacturer:
Amphenol
Mfr.Part #:
55510-112LF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Socket Number of Positions:12 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 11.92 mm |
| Width | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Max Voltage Rating (DC) | 200 V |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 12 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Plastic |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 200 V |
| Housing Color | Black |
| Stack Height | 4.5 mm |
Stock: 309
Distributors
pcbx
pcbxUnit Price$1.20801
Ext.Price$1.20801
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20801 | $1.20801 |
| 10 | $1.14560 | $11.45600 |
| 25 | $1.06452 | $26.61300 |
| 50 | $0.98916 | $49.45800 |
| 100 | $0.94470 | $94.47000 |
| 300 | $0.86293 | $258.87900 |
| 500 | $0.78824 | $394.12000 |
| 1000 | $0.68223 | $682.23000 |
