55932-0410
Manufacturer:
Molex
Mfr.Part #:
55932-0410
Datasheet:
Description:

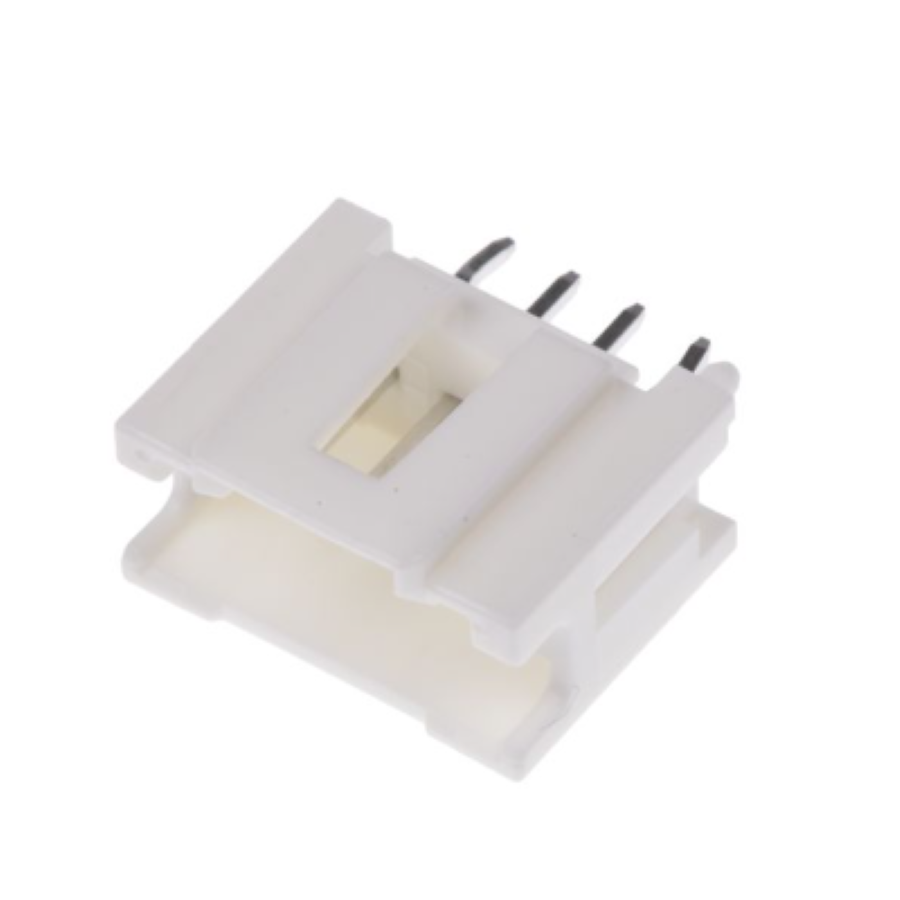

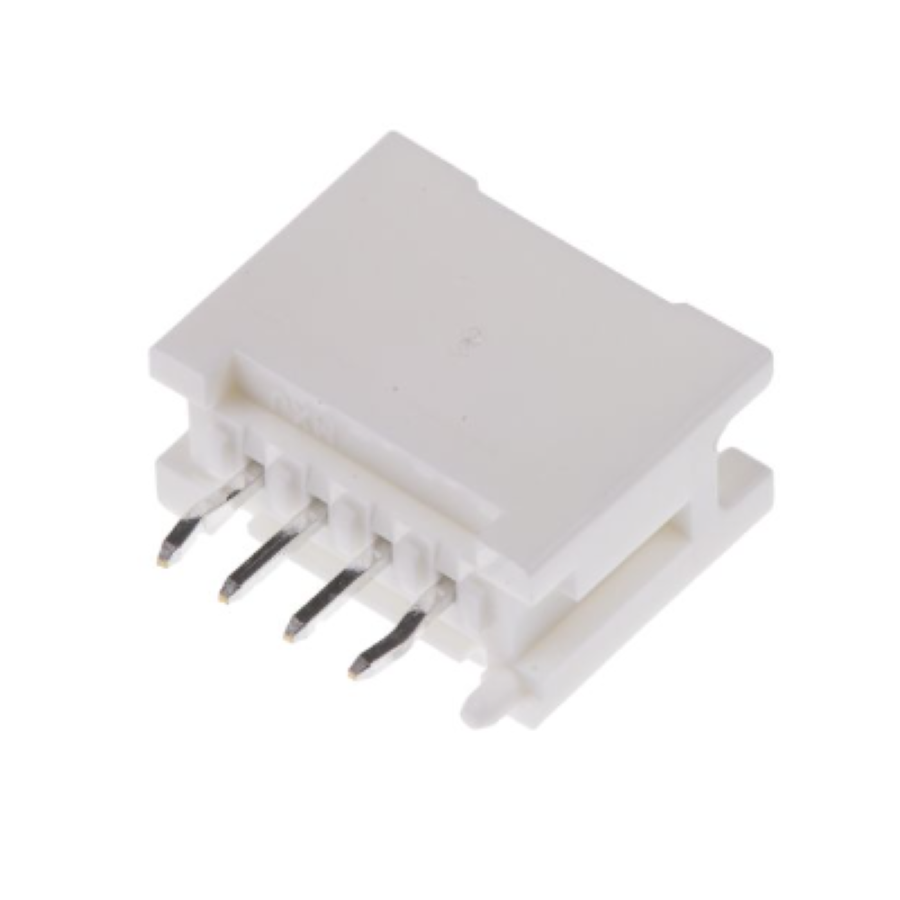

Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| Contact Gender | Male |
| Mating Post Length | 3.66 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
| Termination Post Length | 3.2 mm |
Stock: 7165
Distributors
pcbx
pcbxUnit Price$0.23169
Ext.Price$0.23169
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23169 | $0.23169 |
| 10 | $0.20690 | $2.06900 |
| 25 | $0.20006 | $5.00150 |
| 50 | $0.18725 | $9.36250 |
| 100 | $0.17526 | $17.52600 |
| 300 | $0.16971 | $50.91300 |
| 500 | $0.16433 | $82.16500 |
| 1000 | $0.15913 | $159.13000 |
| 3000 | $0.15409 | $462.27000 |
| 5000 | $0.14921 | $746.05000 |
| 10000 | $0.14448 | $1444.80000 |
